1991 Ranger 4x4 with v2203

Thread Tools

Search this Thread

  #71
Old 11-30-2013 | 11:23 PM
JesterGrin_1's Avatar
Diesel Enthusiast
Joined: Jul 2013
Posts: 205
Likes: 4
From: San Antonio,TX
Default

Originally Posted by Gaines12
yes however you did that, that's the one. take the castle nut off an then it exposses the adjustment screw
Very Good to know. That way Myself and others know where things are. And when mounting accessories to mount them in such a way to give easy access to certain aspects of the Engine for future adjustment if need be.

  #72
Old 11-30-2013 | 11:35 PM
Gaines12's Avatar
Thread Starter
|
Diesel Enthusiast
Joined: Jan 2013
Posts: 109
Likes: 2
Default

Yes, I don't have a singe accessory on that side of the motor. their all on the other side

  #73
Old 12-06-2013 | 11:56 AM
Gaines12's Avatar
Thread Starter
|
Diesel Enthusiast
Joined: Jan 2013
Posts: 109
Likes: 2
Default

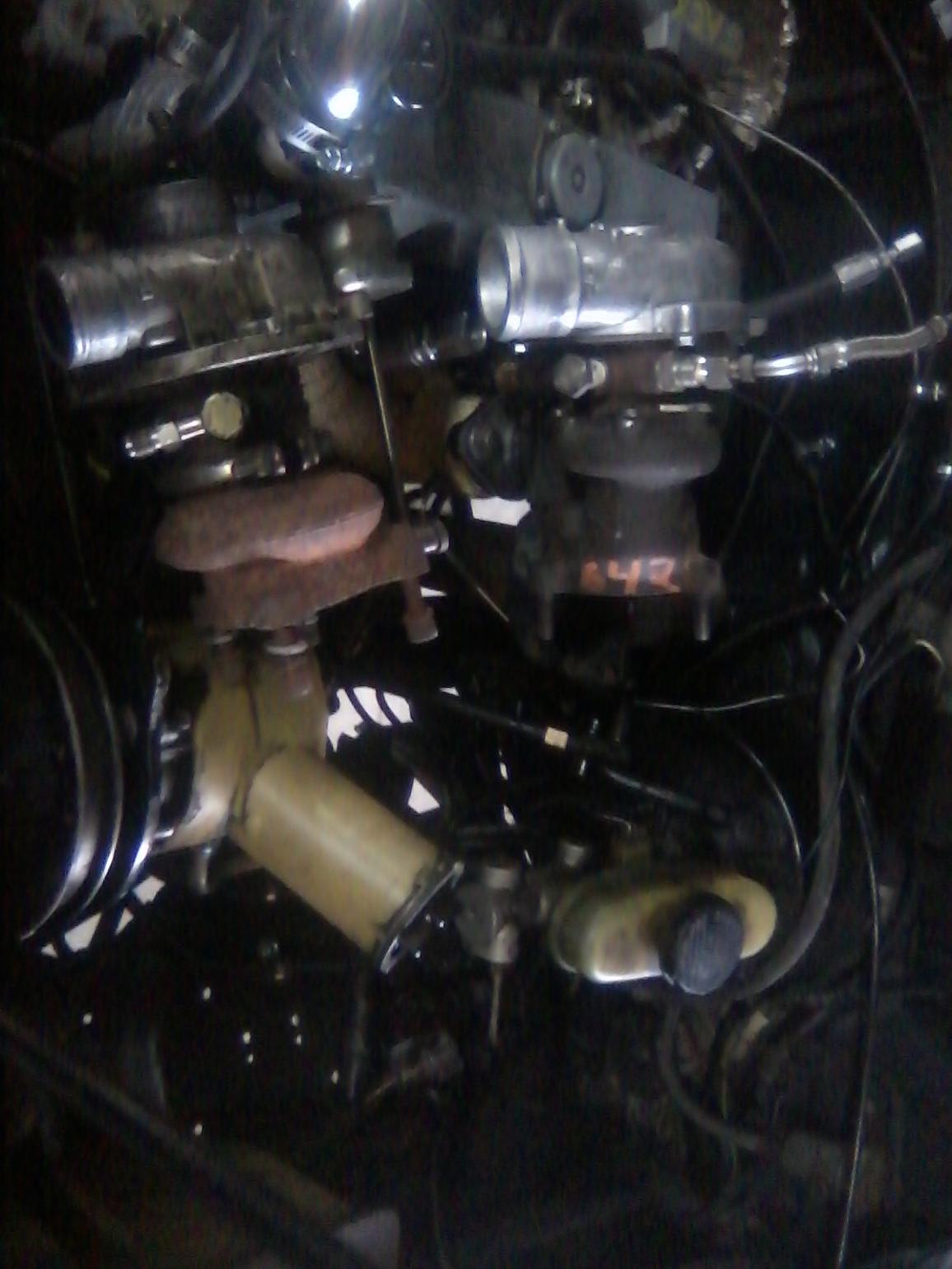

OK heres the update. Had to modify the turbo adapter. Still don't really like it! I don't have any pictures of it either but heres a picture on my two turbos the one in front is the rhf4 and the one in back is the k03-005 theres quite a difference. still have to go get a new fron diff case sense mine was cracked... prolly wont have it moving again till next weekend if im lucky!

  #74
Old 12-06-2013 | 11:57 AM
Gaines12's Avatar
Thread Starter
|
Diesel Enthusiast
Joined: Jan 2013
Posts: 109
Likes: 2
Default

Heres the turbos

Attached Thumbnails 1991 Ranger 4x4 with v2203-image12062013102632.jpg
  #75
Old 12-09-2013 | 01:59 PM
Gaines12's Avatar
Thread Starter
|
Diesel Enthusiast
Joined: Jan 2013
Posts: 109
Likes: 2
Default

Got my junk yard diff this weekend, got my turbo installed with oil lines and IC piping and ran it some Friday. Still waiting on front end to get it to the exhaust shop. I will post pictures on how I made my lines and what not soon

  #76
Old 12-09-2013 | 02:01 PM
Gaines12's Avatar
Thread Starter
|
Diesel Enthusiast
Joined: Jan 2013
Posts: 109
Likes: 2
Default

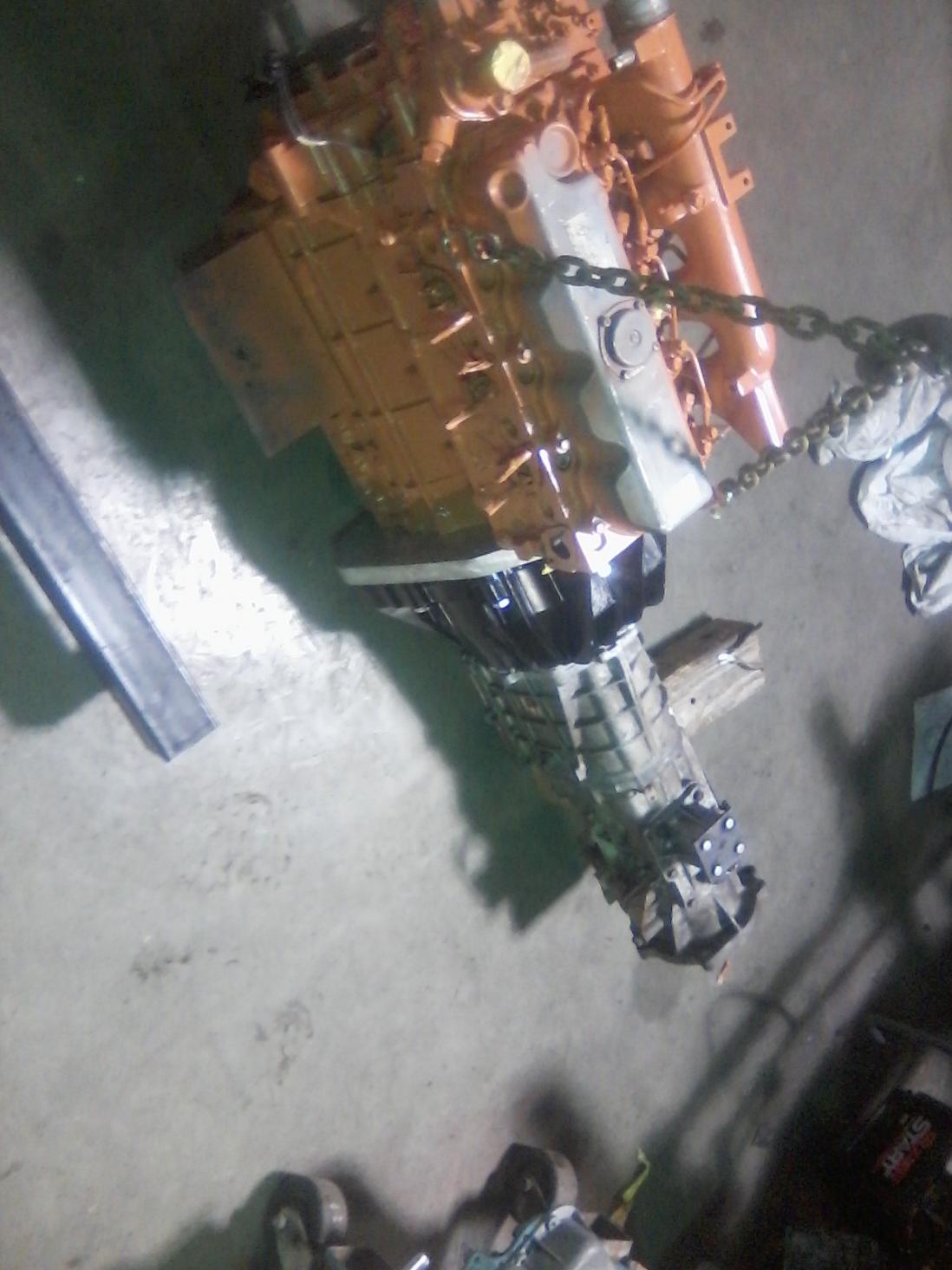

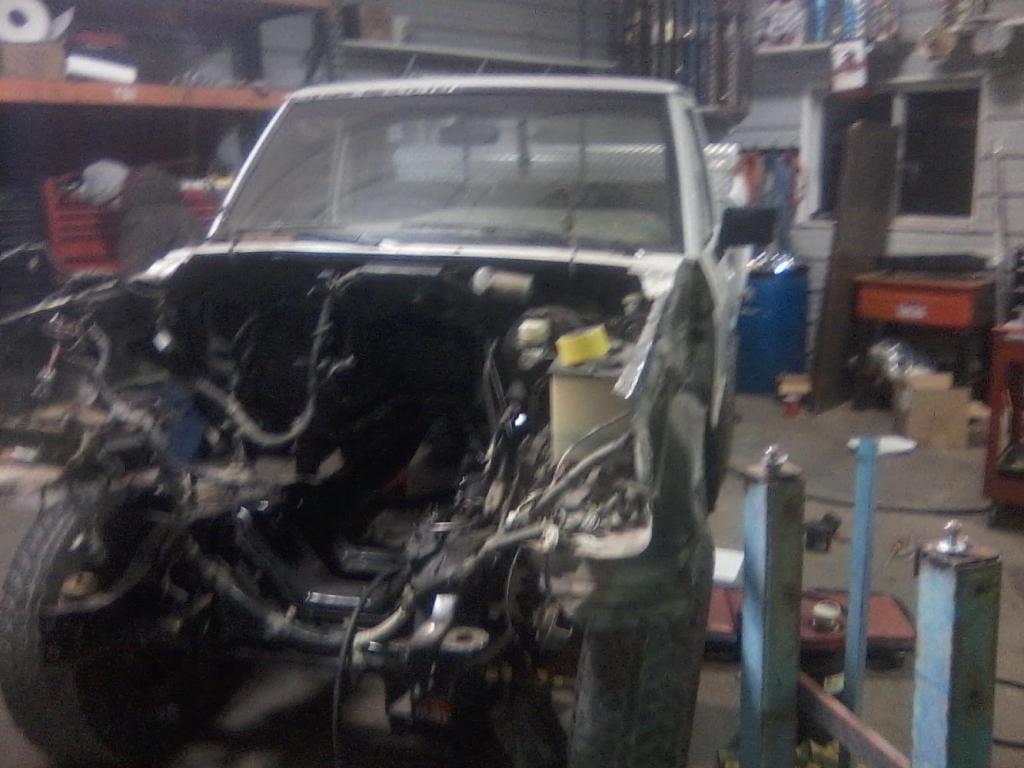

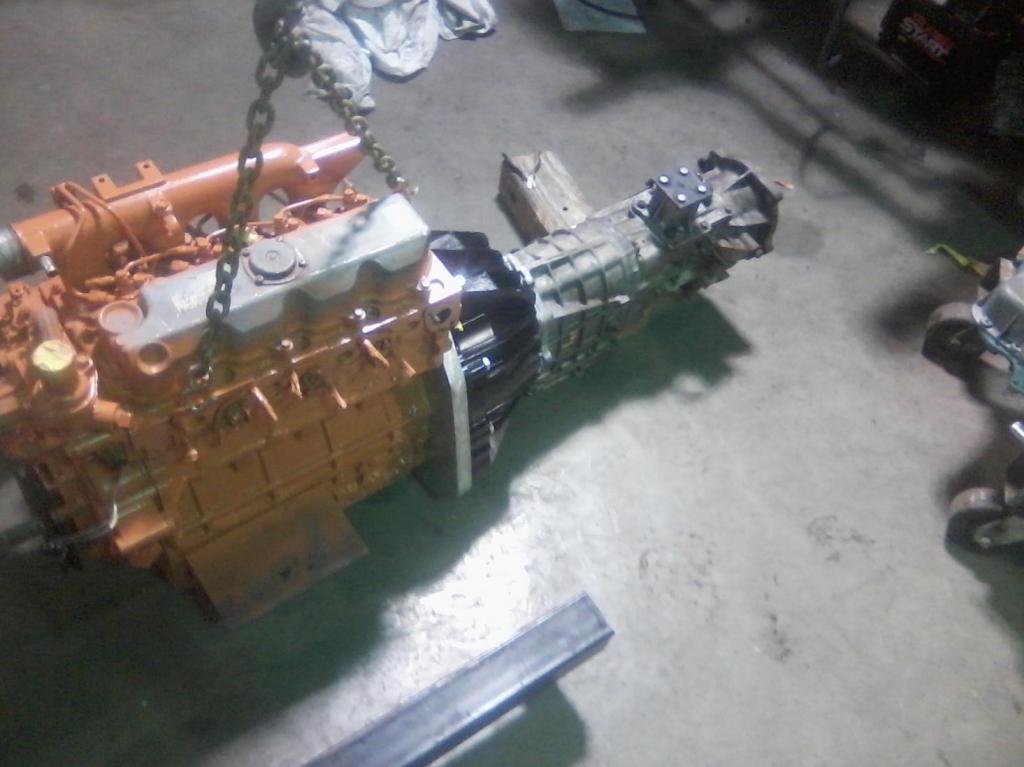

We also did a little work on our second ranger swap tonight. Heres two pictures of it

Attached Thumbnails 1991 Ranger 4x4 with v2203-image12082013200432.jpg   1991 Ranger 4x4 with v2203-image12082013200437.jpg
  #77
Old 12-09-2013 | 02:47 PM
JesterGrin_1's Avatar
Diesel Enthusiast
Joined: Jul 2013
Posts: 205
Likes: 4
From: San Antonio,TX
Default

Lets see if this works?
Name:  GainesKubotaSwap_zps0a040de1.jpg
Views: 173
Size:  71.4 KB

Name:  GainesKubotaSwap2_zps16de908b.jpg
Views: 137
Size:  83.0 KB


Last edited by JesterGrin_1; 12-09-2013 at 02:51 PM.
  #78
Old 12-09-2013 | 03:23 PM
Gaines12's Avatar
Thread Starter
|
Diesel Enthusiast
Joined: Jan 2013
Posts: 109
Likes: 2
Default

that's better thanks!

  #79
Old 12-09-2013 | 08:54 PM
Atvracer114's Avatar
Newbie
Joined: Sep 2013
Posts: 3
Likes: 0
Default

Alright I know I'm late getting on here but my swap is starting to come along as you can see from the pictures above that Gaines12 put up. I helped him build his and it made me want one the second we got it running so now he is helping me build one. I'm hoping to have it going soon but still have a lot to do. If I could figure out how to put pictures on here I would. So if somebody could help me out with that problem that would be great. And I still have one finished adaptor plate left and just got material for 3 more and can get my hands on more so if you are interested let me know and hopefully we can make it work. Message me for details. They are the plates the Gaines12 has been selling for me.

  #80
Old 12-09-2013 | 09:52 PM
Gaines12's Avatar
Thread Starter
|
Diesel Enthusiast
Joined: Jan 2013
Posts: 109
Likes: 2
Default

Sam and I are also persuing a patent on these plates and working with a few different company's trying to mass produce them so that we can bring prices down some hopefully. They will soon be listed on his website and we will be keeping 10 to 15 in stock. Your also welcome to contact him for the adapter plates sense most of you gets parts through him. We are going to offer all of the bolts and any other hardware with the plates as well. And soon he will stock premachined and drilled flywheels so that all you have to do is ship yours in as a core. Sam I and will have several different packaged deals to offer. As our new resources will hopefully provide better operating terms
