Serpentine Belt
#2

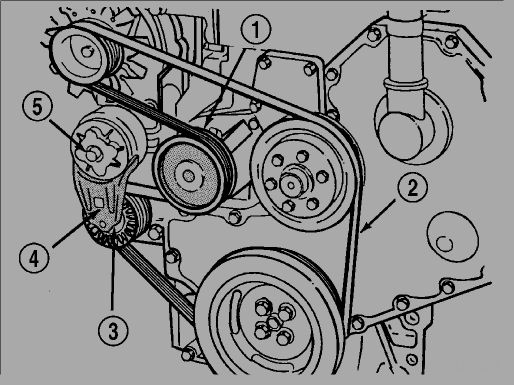

Should be a diagram on the bottom side of your hood or right there on the front radiator support, can't remember which. It has a picture showing all of it with and without air-conditioning.
Welcome to the site. Make sure you fill in your signature so we know some details about your truck.
Welcome to the site. Make sure you fill in your signature so we know some details about your truck.
#3
Diagram
It is not the diagram, I can get the belt on to a point, however the clutch fan sensor rod seems to be it the way. I have the diagram written down from when i bought the truck since it is not on the underside of the hood or frame rails to the raditor support.
#4
thats the crankshaft position sensor.......the belt will fir tween there just slide it in and under the sensor tip.
also on the idler tension pully use a 1/2" breaker bar to pull it back to get the belt on
also on the idler tension pully use a 1/2" breaker bar to pull it back to get the belt on
#7
Unless your truck has been painted or it has been removed their should be one under the hood. Every truck I've ever played with has had it.
