P0087-p0540 on d-max
#1
P0087-p0540 on d-max
ok my dad has a 2003 duramax and he has got a p0087 and a p0540. ever sence the codes have popped up he says his truck smells like deisel bad in the engine and when he gives it gas and lets off it runs rough then gos to the smooth idle almost like a old powerstroke if that helps. help please
#2
Check your engine oil see if there is diesel fuel in there. If there is take it to the dealer immediately, tow it dont drive it
#5

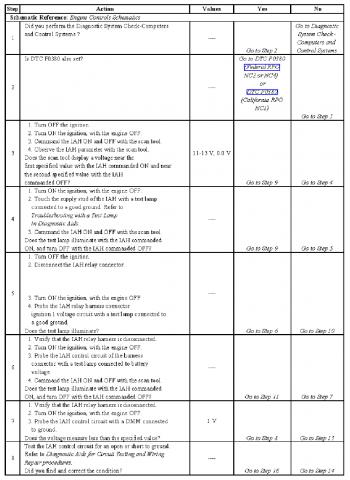

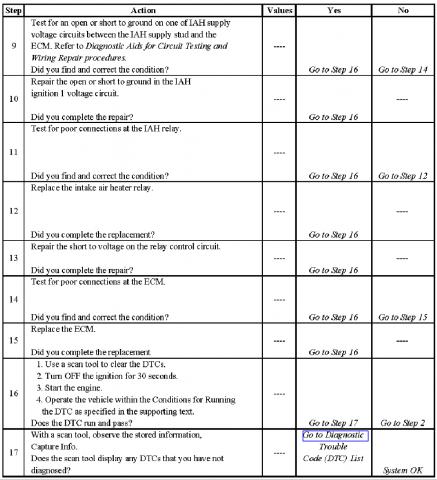

BTW the P0540
CIRCUIT DESCRIPTION
The engine control module (ECM) uses an intake air heater (IAH) to warm the incoming air for proper cylinder combustion. The ECM grounds the control coil of the IAH relay to energize the heater during cold operation. If the ECM detects voltage on the IAH circuit when the relay is commanded OFF, or incorrect voltage when the relay is commanded ON, a DTC will set.
CONDITIONS FOR RUNNING THE DTC
The heater line voltage is more than 8.1 volts with the relay OFF.
OR
The heater line voltage is between 3.8-8.1 volts with the ignition OFF.
AND
The heater line voltage is less than 0.5 volt below battery voltage with the ignition ON.
OR
The heater line voltage is less than 3.8 volts with the relay OFF.
AND
The reference line voltage is low with the relay OFF.
ACTION TAKEN WHEN THE DTC SETS
CIRCUIT DESCRIPTION
The engine control module (ECM) uses an intake air heater (IAH) to warm the incoming air for proper cylinder combustion. The ECM grounds the control coil of the IAH relay to energize the heater during cold operation. If the ECM detects voltage on the IAH circuit when the relay is commanded OFF, or incorrect voltage when the relay is commanded ON, a DTC will set.
CONDITIONS FOR RUNNING THE DTC
- The battery voltage is between 10-18 volts .
- The intake air temperature (IAT) is less than 23°C (73°F) with the engine running.
- The coolant temperature is less than 49°C (121°F) with the ignition ON, engine OFF for more than 3 seconds .
The heater line voltage is more than 8.1 volts with the relay OFF.
OR
The heater line voltage is between 3.8-8.1 volts with the ignition OFF.
AND
The heater line voltage is less than 0.5 volt below battery voltage with the ignition ON.
OR
The heater line voltage is less than 3.8 volts with the relay OFF.
AND
The reference line voltage is low with the relay OFF.
ACTION TAKEN WHEN THE DTC SETS
- The control module illuminates the malfunction indicator lamp (MIL) on the second consecutive ignition cycle that the diagnostic runs and fails.
- The control module records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the control module stores this information in the Failure Records. If the diagnostic reports a failure on the second consecutive ignition cycle, the control module records the operating conditions at the time of the failure. The control module writes the operating conditions to the Freeze Frame and updates the Failure Records.
- The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
- Clear the MIL and the DTC with a scan tool.
#7
the P0087.
CIRCUIT DESCRIPTION
The engine control module (ECM) monitors fuel rail pressure (FRP) using the FRP sensor. If the sensor indicates a pressure less than the commanded rail pressure plus a possible transitional overshoot, the ECM will set diagnostic trouble code (DTC) P0087 for fuel rail pressure too low.
CONDITIONS FOR RUNNING THE DTC
The actual FRP is less than 0.0 MPa at 0-400 RPM .
OR
The actual FRP is less than 22.5 MPa at more than 600 RPM .
ACTION TAKEN WHEN THE DTC SETS
A restricted fuel supply line may cause DTCs P0087 and P1093 to set at the same time. Refer to Fuel System Diagnosis (Single Tank) or Fuel System Diagnosis (Dual Tanks). See: Component Tests and General Diagnostics
CIRCUIT DESCRIPTION
The engine control module (ECM) monitors fuel rail pressure (FRP) using the FRP sensor. If the sensor indicates a pressure less than the commanded rail pressure plus a possible transitional overshoot, the ECM will set diagnostic trouble code (DTC) P0087 for fuel rail pressure too low.
CONDITIONS FOR RUNNING THE DTC
- DTCs P0192, P0193, or P1635 are not set.
- The ignition is ON.
The actual FRP is less than 0.0 MPa at 0-400 RPM .
OR
The actual FRP is less than 22.5 MPa at more than 600 RPM .
ACTION TAKEN WHEN THE DTC SETS
- The control module illuminates the malfunction indicator lamp (MIL) when the diagnostic runs and fails.
- The control module records the operating conditions at the time the diagnostic fails. The control module stores this information in the Freeze Frame/Failure Records.
- The ECM will limit fuel injection.
- The control module turns OFF the malfunction indicator lamp (MIL) after 3 consecutive ignition cycles that the diagnostic runs and does not fail.
- A current DTC, Last Test Failed, clears when the diagnostic runs and passes.
- A history DTC clears after 40 consecutive warm-up cycles, if no failures are reported by this or any other emission related diagnostic.
- Clear the MIL and the DTC with a scan tool.
A restricted fuel supply line may cause DTCs P0087 and P1093 to set at the same time. Refer to Fuel System Diagnosis (Single Tank) or Fuel System Diagnosis (Dual Tanks). See: Component Tests and General Diagnostics
