Fuel Filter Kits
#1
04-25-2010, 02:54 PM
Fuel Filter Kits
Here are two great kits for you guys running a Fass HPFP, or Raptor Pump.
For superior filtration our dual filter kits comes with Donaldson 2 micron filter and 20 micron water separator, included are high flow filter heads, custom modified adapters to reduce flow restriction through the heads, steel bracket, hardware and straight push lock fittings.
As always we use 1-14 filter heads so replacement filters are readily available. We also have great prices on replacement filters as well.
Should you need an alternate fitting configuration let us know.
Available with 1/2" or 3/8" Pushlocks.
$139.99 plus shipping.
Designed for mounting uder the intake horn on most CR trucks. Bolts to OE intake using existing holes.
Our kit comes with a Donaldson 2 micron filter, included are a high flow filter head, custom modified adapters to reduce flow restriction through the head, steel bracket, hardware and two 90 degree push lock fittings, one with fuel pressure access.
Donadson filter specs:
Donaldson Fuel Filter 2 Micron- Donaldson cross reference to the popular "CAT" filter
FUEL SPIN-ON PRIMARY
Efficiency 99%: 2 Micron
Fuel Filters Product Attributes
A - OD (Inches): 3.68
B - Thread Size (Inches): 1-14
C - Length (Inches): 6.95
D - Gasket OD (Inches): 2.83
E - Gasket ID (Inches): 2.46
Product Type Description: FUEL SPIN-ON PRIMARY
Primary Application: Caterpillar 1R-0750
Product Group: F
As always we use 1-14 filter heads so replacement filters are readily available. We also have great prices on replacement filters as well.
Should you need additional fittings or adapters let us know.
Available in 1/2" or 3/8" Pushlocks.
$99.99 plus Shipping.

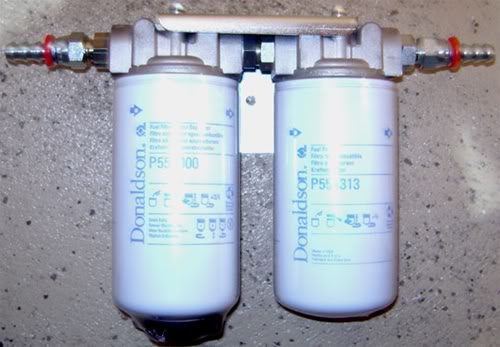

Dual Remote Filter Kit
For superior filtration our dual filter kits comes with Donaldson 2 micron filter and 20 micron water separator, included are high flow filter heads, custom modified adapters to reduce flow restriction through the heads, steel bracket, hardware and straight push lock fittings.
As always we use 1-14 filter heads so replacement filters are readily available. We also have great prices on replacement filters as well.
Should you need an alternate fitting configuration let us know.
Available with 1/2" or 3/8" Pushlocks.
$139.99 plus shipping.

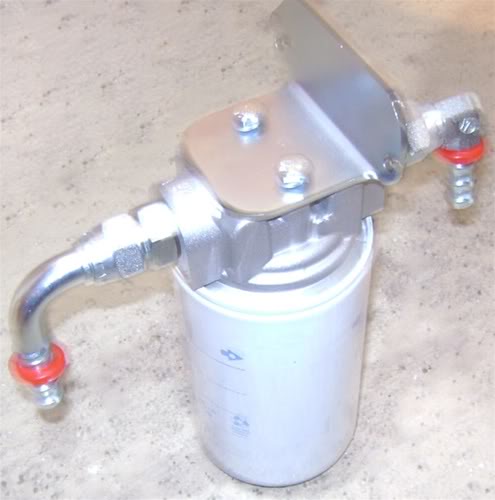

Under Intake Filter Mount for 5.9 CR trucks
Designed for mounting uder the intake horn on most CR trucks. Bolts to OE intake using existing holes.
Our kit comes with a Donaldson 2 micron filter, included are a high flow filter head, custom modified adapters to reduce flow restriction through the head, steel bracket, hardware and two 90 degree push lock fittings, one with fuel pressure access.
Donadson filter specs:
Donaldson Fuel Filter 2 Micron- Donaldson cross reference to the popular "CAT" filter
FUEL SPIN-ON PRIMARY
Efficiency 99%: 2 Micron
Fuel Filters Product Attributes
A - OD (Inches): 3.68
B - Thread Size (Inches): 1-14
C - Length (Inches): 6.95
D - Gasket OD (Inches): 2.83
E - Gasket ID (Inches): 2.46
Product Type Description: FUEL SPIN-ON PRIMARY
Primary Application: Caterpillar 1R-0750
Product Group: F
As always we use 1-14 filter heads so replacement filters are readily available. We also have great prices on replacement filters as well.
Should you need additional fittings or adapters let us know.
Available in 1/2" or 3/8" Pushlocks.
$99.99 plus Shipping.
#2
05-02-2010, 07:05 PM
#4
05-03-2010, 07:02 PM
#5
05-03-2010, 07:42 PM
#6
05-09-2010, 06:15 PM
#7
05-09-2010, 06:18 PM
The following users liked this post:
Diesel Dawgs Performance (05-09-2010)
#8
05-10-2010, 12:17 AM
#9
05-10-2010, 02:09 AM
very nice luke
