  #11
Old 04-18-2009, 12:09 AM
ToolManTimTaylor's Avatar
Diesel Enthusiast
Join Date: Jan 2009
Location: Ct~Ish
Posts: 138
Received 8 Likes on 5 Posts
Default

Originally Posted by 7.3Strokin419
Tim that is sweet! so you get to build those!?
Yup sure do. Well now I do the power on pre flight and weapon systems op checks on them before the Navy gets em.

TXRedman I love hat pic of the pumper! We built a 23,000 sq foot home for a guy in Brewster N.Y about 10 years ago and they had a pumper like that that had to gap a 6 car garage, pool and up to the 2nd floor of the house. It was just nutty to watch as the operator had (At the time) a "load compensator) that as the boom took weight the hydrolics would compensate for the droop of the arm. Listening to the concrete flow and the creeking and moaning was a lil bit unnerving.

  #12
Old 04-18-2009, 01:45 AM
coyropin's Avatar
Diesel Bomber
Join Date: Apr 2009
Location: VERNAL UTAH
Posts: 1,461
Received 66 Likes on 64 Posts
Default

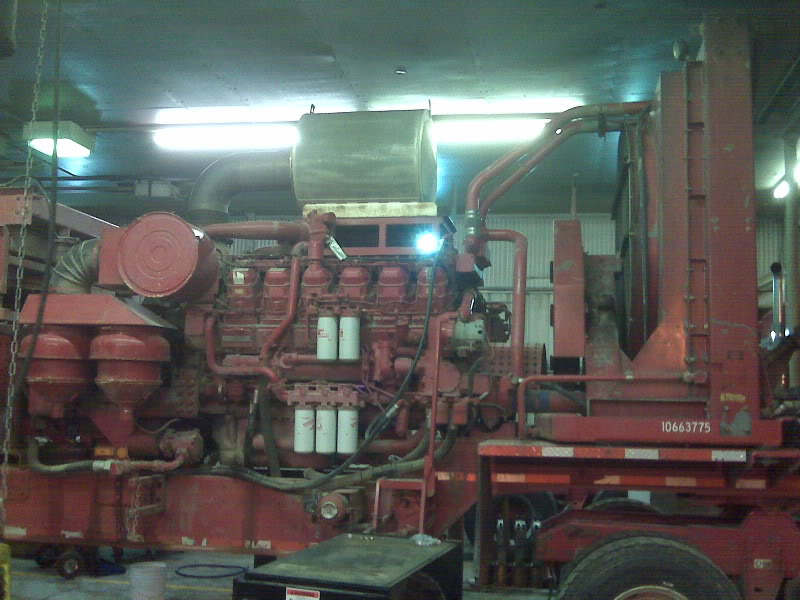

Name:  Picture002.jpg
Views: 120
Size:  90.7 KB[IMG][/IMG]

  #13
Old 04-18-2009, 06:45 AM
hock6.0's Avatar
Diesel Enthusiast
Join Date: Feb 2009
Location: St. Marys, PA
Posts: 420
Received 16 Likes on 16 Posts
  #14
Old 04-18-2009, 06:48 AM
tpcdrafting's Avatar
Diesel Enthusiast
Join Date: Mar 2009
Location: WY
Posts: 145
Likes: 0
Received 5 Likes on 4 Posts
Default

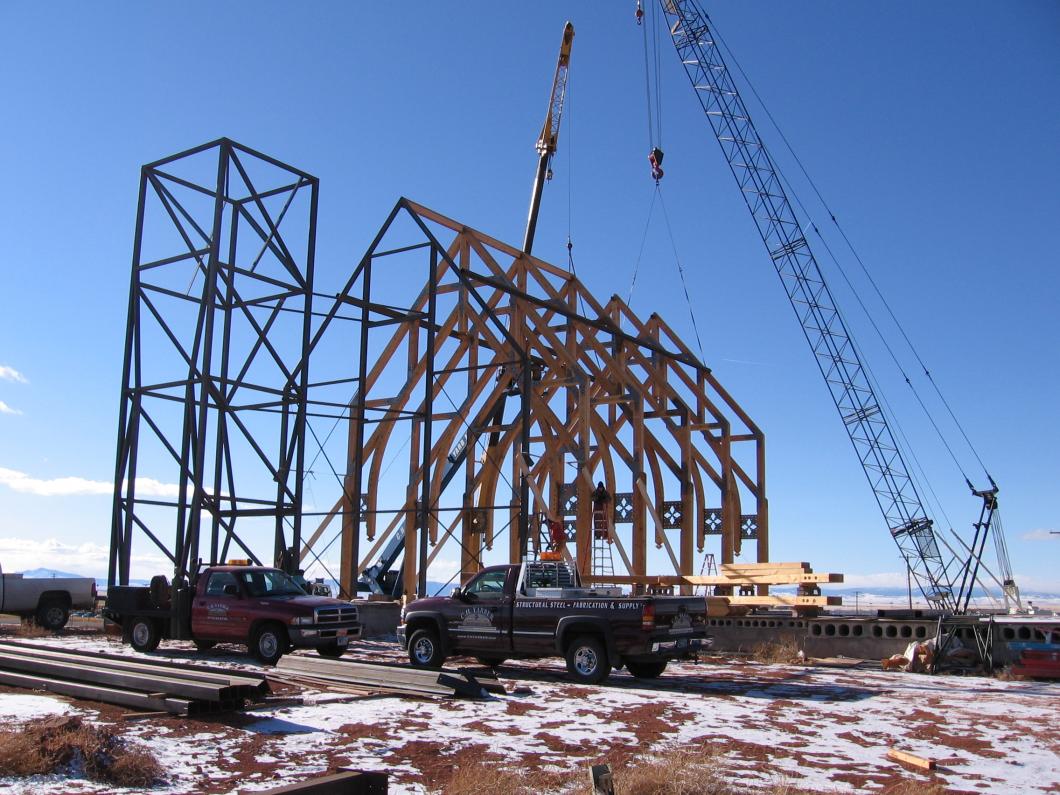

I put together this project. We designed the steel, did the fabrication and erected the steel and the timber frames. 3 of the cranes in our fleet. The Yellow is a Grove 35 ton, he was flying in the timber and steel purlins (Cat powered). The blue is a 38 ton Manitex boom truck with the man basket on. Has 100' of stick, great rig. Finally is our conventional Link Belt 82 ton. We were flying the timber frames and steel frames with it. Not our largest crane, but it's a sweetheart for erecting steel. Besides, that it has 2 Cummins

Attached Thumbnails Pics of ALL heavy equipment!-picture-084.jpg
  #15
Old 04-18-2009, 06:50 AM
tpcdrafting's Avatar
Diesel Enthusiast
Join Date: Mar 2009
Location: WY
Posts: 145
Likes: 0
Received 5 Likes on 4 Posts
Default

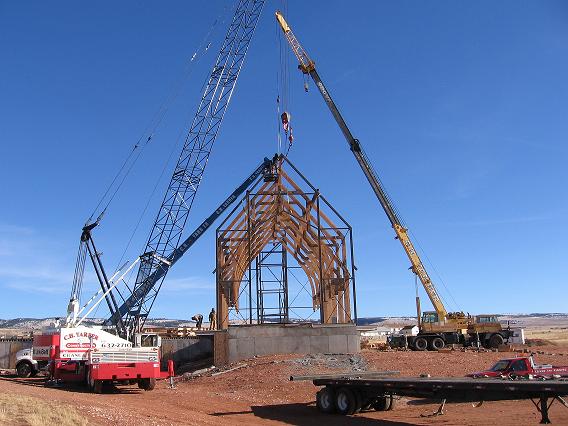

A little better pic of the cranes

Attached Thumbnails Pics of ALL heavy equipment!-picture-089.jpg
  #16
Old 04-18-2009, 10:37 AM
00' Quad Cab's Avatar
Diesel Wrench
Join Date: Mar 2007
Location: Aberdeen, WA
Posts: 550
Received 43 Likes on 39 Posts
Default

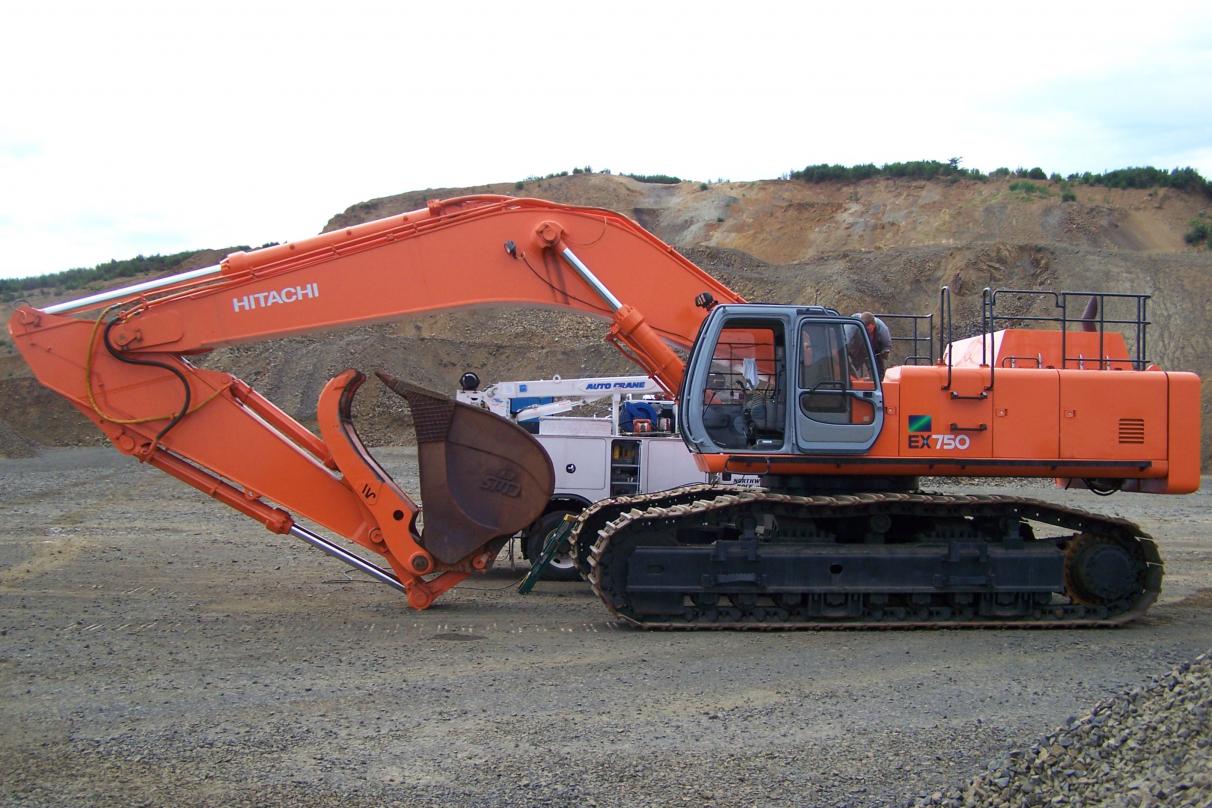

Pics of ALL heavy equipment!-100_0352.jpgThe only one I have on this computer

  #17
Old 04-21-2009, 10:16 AM
7.3Strokin419's Avatar
Diesel Enthusiast
Thread Starter
Join Date: Mar 2009
Location: oHIo
Posts: 167
Likes: 0
Received 5 Likes on 5 Posts
  #18
Old 05-03-2009, 09:00 PM
IC Smoke's Avatar
BOMBARDIER
Join Date: Mar 2007
Location: Hudson, MI
Posts: 1,217
Received 40 Likes on 36 Posts
Default

Not the largest of equipment but still gets the job done... just takes awhile. Ill own a newer case backhoe some day.

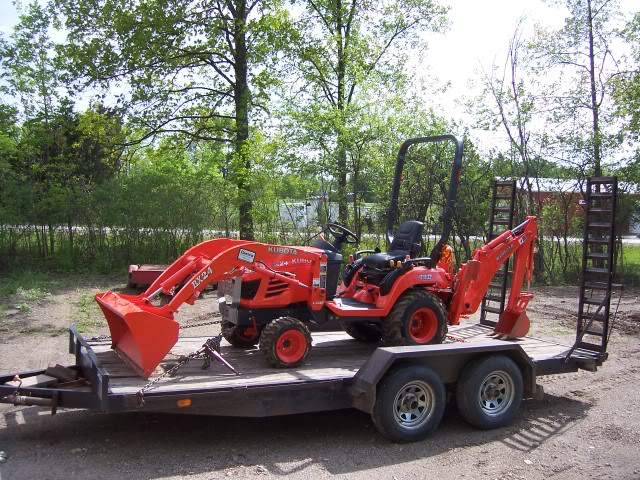

BX24 TLB, 54" finish mower and bagger
Name:  100_2017.jpg
Views: 192
Size:  122.8 KB

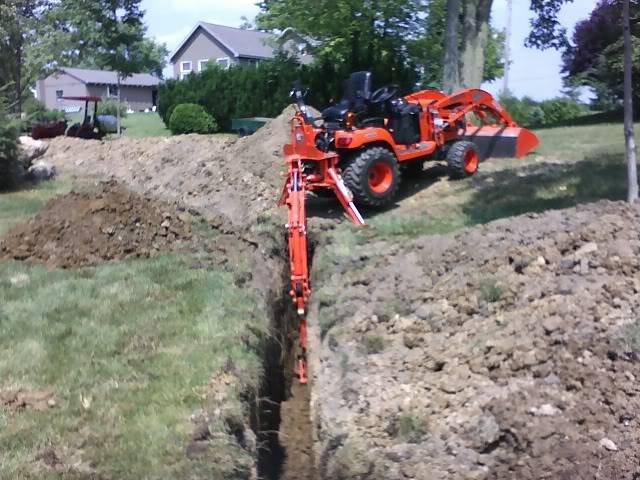

Name:  kubota1.jpg
Views: 172
Size:  85.4 KB

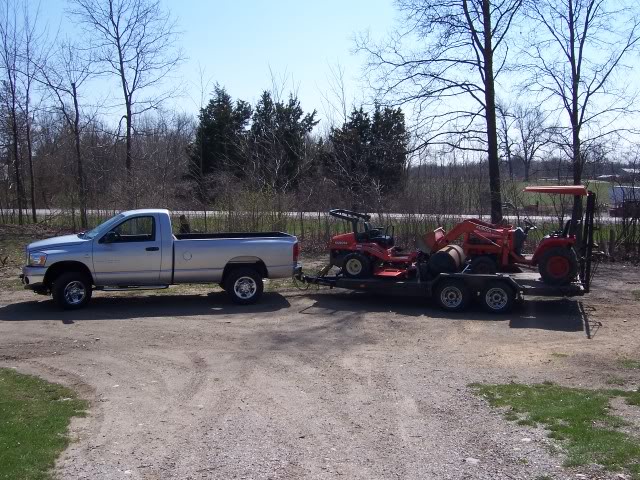

ZD28 60" cut & B2400 TLM
Name:  4-2-07004.jpg
Views: 127
Size:  104.4 KB

  #19
Old 05-04-2009, 02:12 AM
97cummins's Avatar
Super Moderator

Join Date: Jun 2008
Location: puyallup,washington
Posts: 5,812
Received 332 Likes on 316 Posts
Default

cool tactors,i want one of those bad.mini backhoe.

  #20
Old 07-04-2009, 07:44 PM
bluedodge450r's Avatar
Diesel Fan
Join Date: Mar 2009
Location: Logandale, NV
Posts: 28
Likes: 0
Received 1 Like on 1 Post
Default

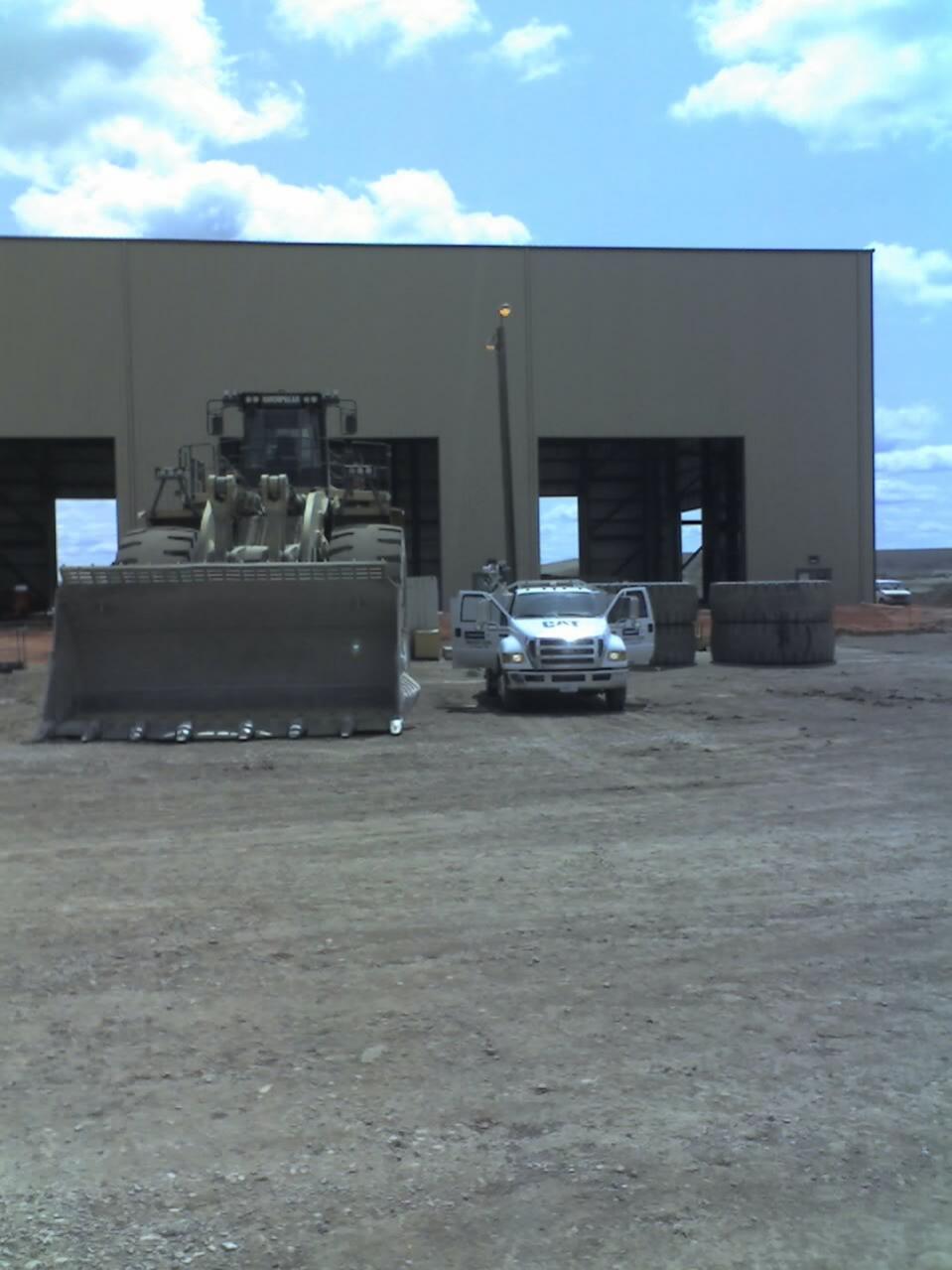

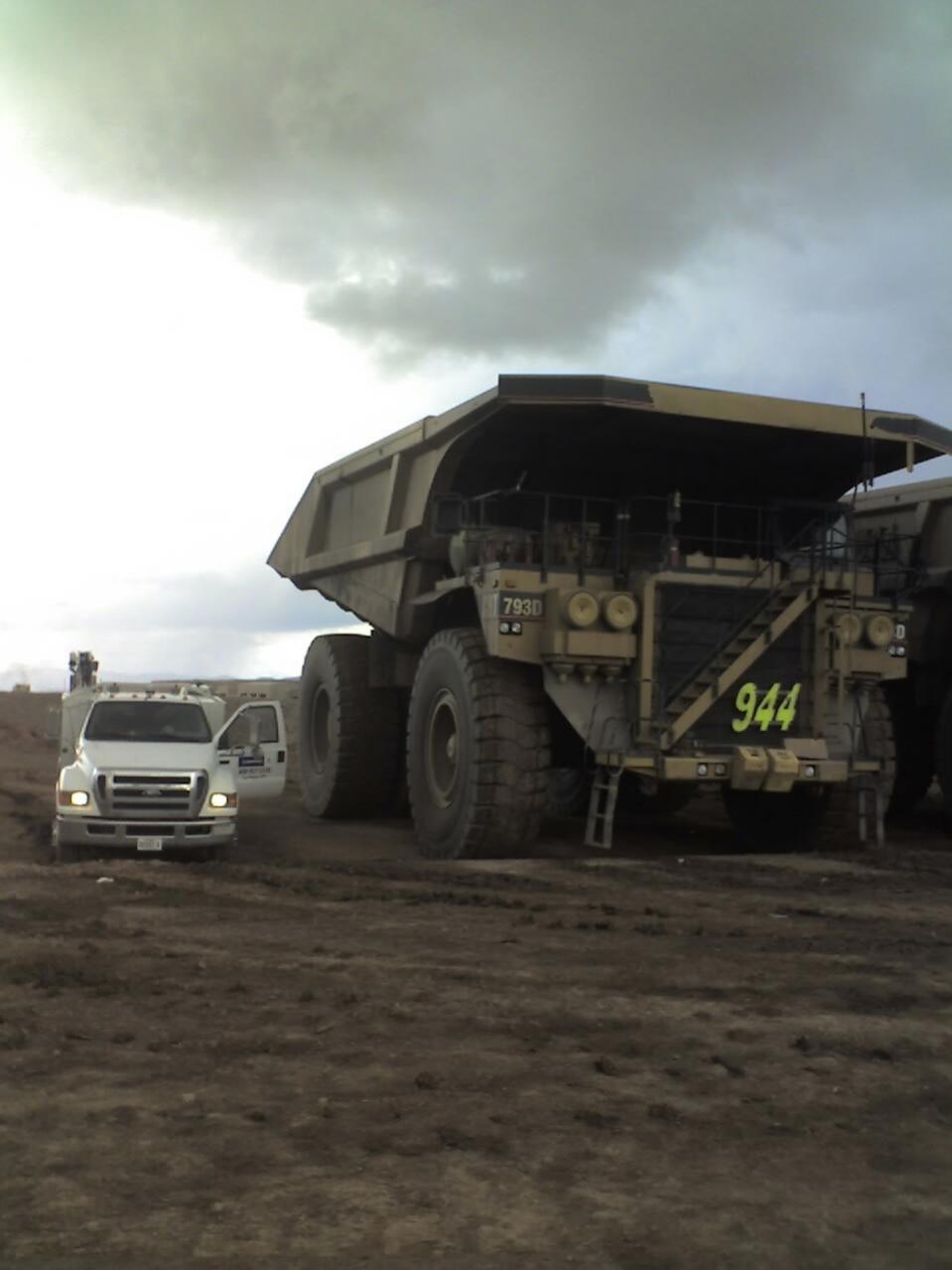

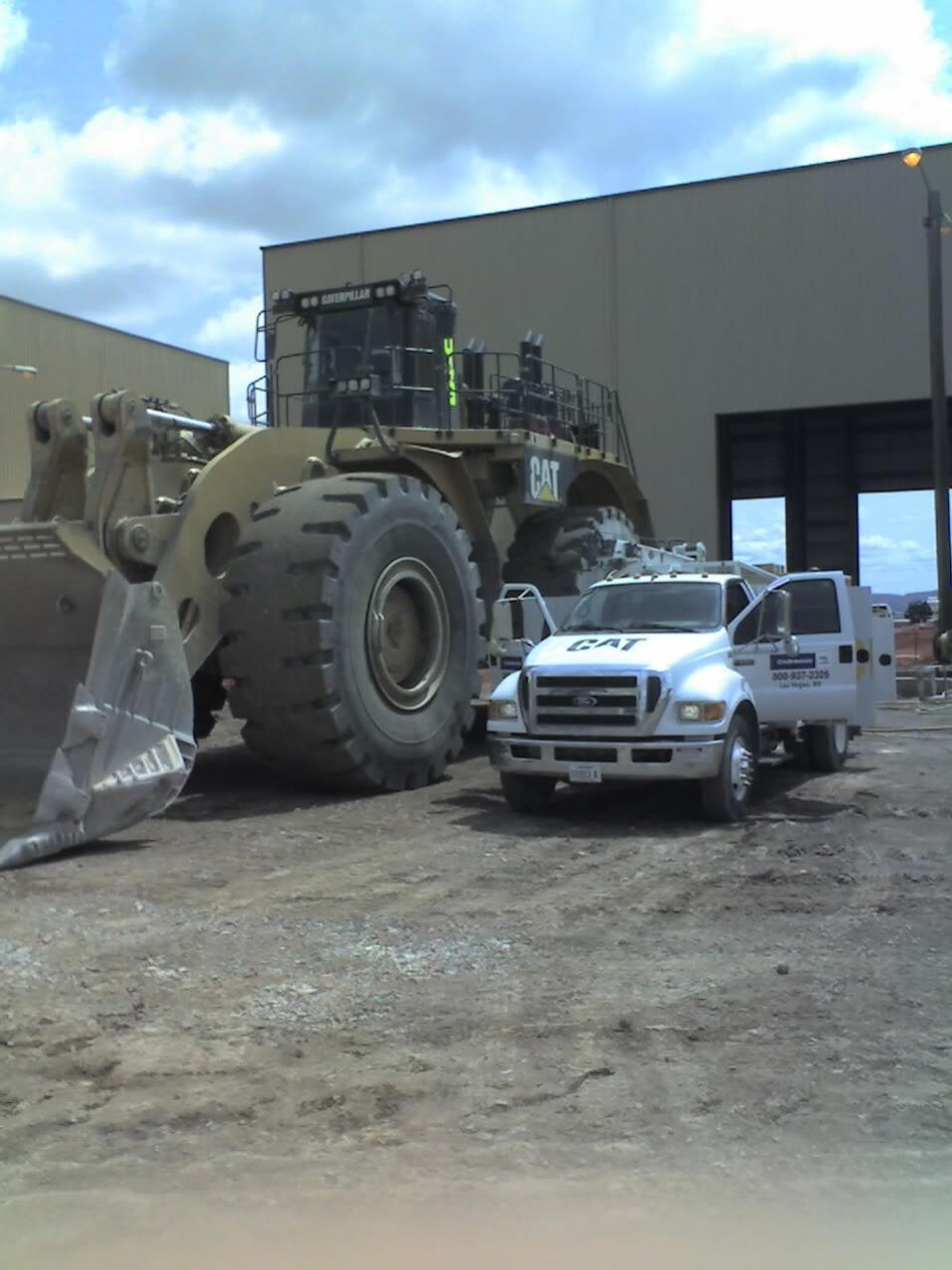

Heres a 994F twice and a 793D. Both have 3516B CAT engines. 793D is 2200 HP 994F is 1500 HP.

Attached Thumbnails Pics of ALL heavy equipment!-04-24-08_1317.jpg   Pics of ALL heavy equipment!-05-26-08_1841.jpg   Pics of ALL heavy equipment!-04-24-08_1318.jpg
