boost gauge

Thread Tools

Search this Thread

  #1
Old 10-02-2009, 04:32 PM
12valvetater's Avatar
Diesel Bomber
Thread Starter
Join Date: Oct 2008
Location: Pennsylvania
Posts: 1,474
Received 35 Likes on 34 Posts
Default boost gauge
we are putting gauges in my buddies truck where is a good place to put the boost gauge ive never done this on a duramax

Reply Like
  #2
Old 10-02-2009, 05:46 PM
dieseldocter16's Avatar
Diesel Wrench
Join Date: Aug 2008
Location: Schnecksville, Pa
Posts: 770
Received 19 Likes on 17 Posts
Default
I'd say on the A-pillar. If your lookin for something cleaner check out the BD X-monitor.

Reply Like
  #3
Old 10-02-2009, 06:06 PM
2500HeavyDuty's Avatar
Super Moderator
Join Date: Oct 2007
Location: Houston, Tx
Posts: 14,872
Received 764 Likes on 627 Posts
Default
a good place to tap for a boost gauge?

on a lb7 the easiest would be to put a T-tap in the wastegate line

Reply Like
  #4
Old 10-02-2009, 11:17 PM
12valvetater's Avatar
Diesel Bomber
Thread Starter
Join Date: Oct 2008
Location: Pennsylvania
Posts: 1,474
Received 35 Likes on 34 Posts
Default
i meant the fitting for the line a t-tap can you explain a little more could i just drill and tap into one of his boost tubes?

Reply Like
  #5
Old 10-03-2009, 01:33 PM
2500HeavyDuty's Avatar
Super Moderator
Join Date: Oct 2007
Location: Houston, Tx
Posts: 14,872
Received 764 Likes on 627 Posts
Default
its easier to to a t-tap, two 1/4 barbs with a tee cut the wastegate line in half and u set.

Reply Like
  #6
Old 10-03-2009, 05:09 PM
12valvetater's Avatar
Diesel Bomber
Thread Starter
Join Date: Oct 2008
Location: Pennsylvania
Posts: 1,474
Received 35 Likes on 34 Posts
Default
10 4 would this fitting come with is gauge i ust looked at the gauge face in the box and didnt go digging around inside my hands were kinda greasy from putting on his new exhaust manifold

Reply Like
  #7
Old 10-03-2009, 06:56 PM
2500HeavyDuty's Avatar
Super Moderator
Join Date: Oct 2007
Location: Houston, Tx
Posts: 14,872
Received 764 Likes on 627 Posts
Default

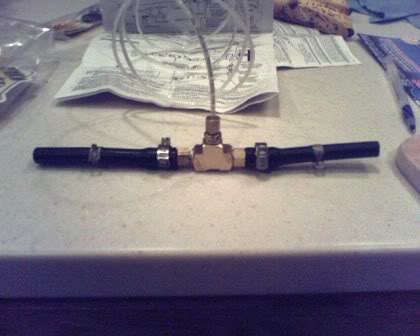

the only fitting that owuld come with the gauge would be the compression fittings to attach the nylon hose to your tap. you can stick that onto your tee

Name: IMG00138.jpg Views: 131 Size: 20.0 KB

Reply Like
  #8
Old 10-04-2009, 03:25 AM
12valvetater's Avatar
Diesel Bomber
Thread Starter
Join Date: Oct 2008
Location: Pennsylvania
Posts: 1,474
Received 35 Likes on 34 Posts
Default
well he wants to run a boost fooler so i put it in the intake pipe

Reply Like
  #9
Old 10-04-2009, 05:41 AM
hotlb7's Avatar
Diesel Fan
Join Date: Sep 2009
Posts: 96
Received 2 Likes on 2 Posts
Default
that wont give you a trure reading dont do it. tap it in the pipe before intake manifold.

Reply Like
  #10
Old 10-05-2009, 01:19 AM
12valvetater's Avatar
Diesel Bomber
Thread Starter
Join Date: Oct 2008
Location: Pennsylvania
Posts: 1,474
Received 35 Likes on 34 Posts
Default
that be what i done fella
