Chevy/GMC Duramax 01-04 LB7 Discussion of Chevy and GMC Trucks with LB7 Duramax Turbo Diesel Engines

Did a little logging today

Thread Tools

Search this Thread

  #1
Old 10-29-2008, 12:24 AM
uwyo_dmax's Avatar
Diesel Enthusiast
Thread Starter
Join Date: Oct 2008
Location: Laramie WY
Posts: 197
Received 14 Likes on 14 Posts
Default Did a little logging today

did a little logging today looks like i have a pretty strong fuel system. turned my pulse width up around 2600 just to experiment, i was able to hold 22,500-23,000psi at 24XX pw. One thing i cant figure out is i never see more than 85 or 86mm3 event though my base injection qt. is 110 at 100% TP

  #2
Old 10-29-2008, 12:28 AM
2500HeavyDuty's Avatar
Super Moderator
Join Date: Oct 2007
Location: Houston, Tx
Posts: 14,872
Received 764 Likes on 627 Posts
Default

got a log and tune, you can upload them as attachments


Last edited by 2500HeavyDuty; 11-13-2008 at 04:15 AM.
  #3
Old 10-29-2008, 12:42 AM
uwyo_dmax's Avatar
Diesel Enthusiast
Thread Starter
Join Date: Oct 2008
Location: Laramie WY
Posts: 197
Received 14 Likes on 14 Posts
Default

Here's a couple logs i took just short bursts around town. The latest one is with the PW turned up.
The tune is my normal DSP5 but i raised the PW on the Stock tune to see what i RP i could hold.

Attached Files
File Type: efi
BBL00013.efi (69.4 KB, 76 views)
File Type: efi
BBL00009.efi (92.6 KB, 68 views)

Last edited by uwyo_dmax; 10-29-2008 at 01:30 AM.
  #4
Old 10-29-2008, 01:19 AM
2500HeavyDuty's Avatar
Super Moderator
Join Date: Oct 2007
Location: Houston, Tx
Posts: 14,872
Received 764 Likes on 627 Posts
Default

turn up table B0728, you are requesting more fuel but B0728 is limiting all the tables including B0751 and B0727

might want to give B0747 a look also its going to limit the amount of fuel when you go faster.

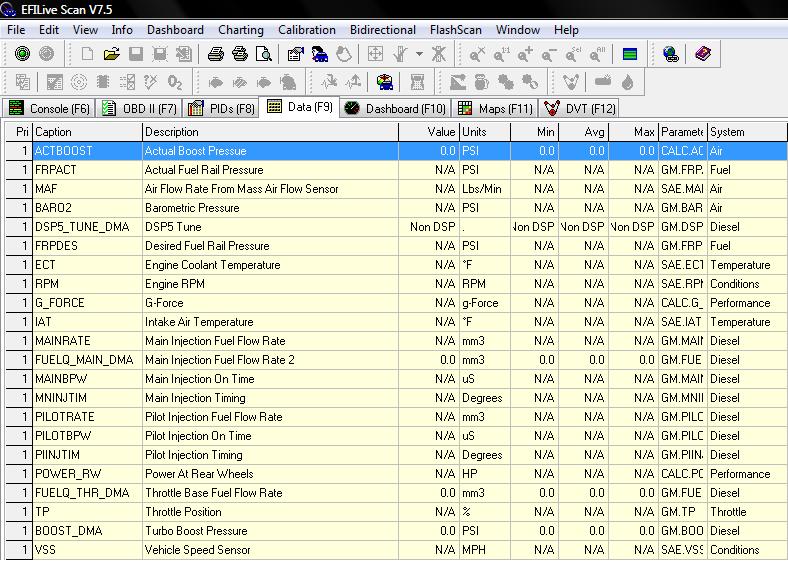

log a WOT run with these pids.

Shoot me your email and ill send the pid list to ya

Attached Thumbnails Did a little logging today-untitled.jpg
  #5
Old 10-29-2008, 01:40 AM
uwyo_dmax's Avatar
Diesel Enthusiast
Thread Starter
Join Date: Oct 2008
Location: Laramie WY
Posts: 197
Received 14 Likes on 14 Posts
Default

Thanks for the pid list, I looked at B0728 but its all at 100mm3 so why is it i can never see over 86 this table should let it go right up to 100 right? Is it something to do with the defuel tables?

  #6
Old 10-29-2008, 01:55 AM
2500HeavyDuty's Avatar
Super Moderator
Join Date: Oct 2007
Location: Houston, Tx
Posts: 14,872
Received 764 Likes on 627 Posts
Default

they do limit how much fuel is getting to the engine also, if you log GM.Max_trq_dma i bet it would point right to why you are seeing 80mm3 in the logs.

Look at B0741 there's your problem. with that amount of pw and rp you might limp the trans when you turn up that table

  #7
Old 10-29-2008, 02:04 AM
uwyo_dmax's Avatar
Diesel Enthusiast
Thread Starter
Join Date: Oct 2008
Location: Laramie WY
Posts: 197
Received 14 Likes on 14 Posts
Default

yep that would make sense I should have thought of that sooner This stock trans thing really sucks! i was out playin around tonight found a LBZ with edge hot could hardly beat him with the 5th pos. tune on there

  #8
Old 10-29-2008, 02:09 AM
2500HeavyDuty's Avatar
Super Moderator
Join Date: Oct 2007
Location: Houston, Tx
Posts: 14,872
Received 764 Likes on 627 Posts
Default

yeah looking at ur dsp #4 and ur trq limiting your only running like 20-2100pw on that tune. gotta be ways to tune to save the trans. and yeah stock trans sucks.

Sell your lift to me ill give ya like 500 for it towards the trans

  #9
Old 10-29-2008, 02:19 AM
uwyo_dmax's Avatar
Diesel Enthusiast
Thread Starter
Join Date: Oct 2008
Location: Laramie WY
Posts: 197
Received 14 Likes on 14 Posts
Default

haha I've become rather attached to the lift Guess I'll just have to be nice to the poor ally till summer when i can get a real job again. When I was running that guy he seemed to get me of the start, but that tune seems to pull real well on top by 55+ i mine would pull on him pretty quick.
Did you do your SCIV yourself?

  #10
Old 10-29-2008, 02:20 AM
2500HeavyDuty's Avatar
Super Moderator
Join Date: Oct 2007
Location: Houston, Tx
Posts: 14,872
Received 764 Likes on 627 Posts
Default

nah, its the only thing i didn't do my self.
