Chevy/GMC 6.2L and 6.5L Discussion of Chevy and GMC Trucks with 6.2L and 6.5L Diesel Engines

help 6.5

Thread Tools

Search this Thread

  #1
Old 02-19-2016, 08:52 PM
wolf1365's Avatar
Diesel Fan
Thread Starter
Join Date: Sep 2009
Location: mid tn
Posts: 86
Received 2 Likes on 2 Posts
Default help 6.5

putting my 6.5 back stock and need the location of the turbo oil supply port , currently its off my oil sending unit port but i want to put it back stock, where is the location of 98-99 port any pic or good info would be helpful. have the factory line just need to know where to pipe it in. and just for the record i cant remember where it was on the first engine

  #2
Old 02-20-2016, 02:34 PM
Mayhem's Avatar
Diesel Wrench
Join Date: Jun 2012
Location: Middle of nowhere Tn
Posts: 1,255
Received 128 Likes on 121 Posts
Default

Originally Posted by wolf1365
putting my 6.5 back stock and need the location of the turbo oil supply port , currently its off my oil sending unit port but i want to put it back stock, where is the location of 98-99 port any pic or good info would be helpful. have the factory line just need to know where to pipe it in. and just for the record i cant remember where it was on the first engine

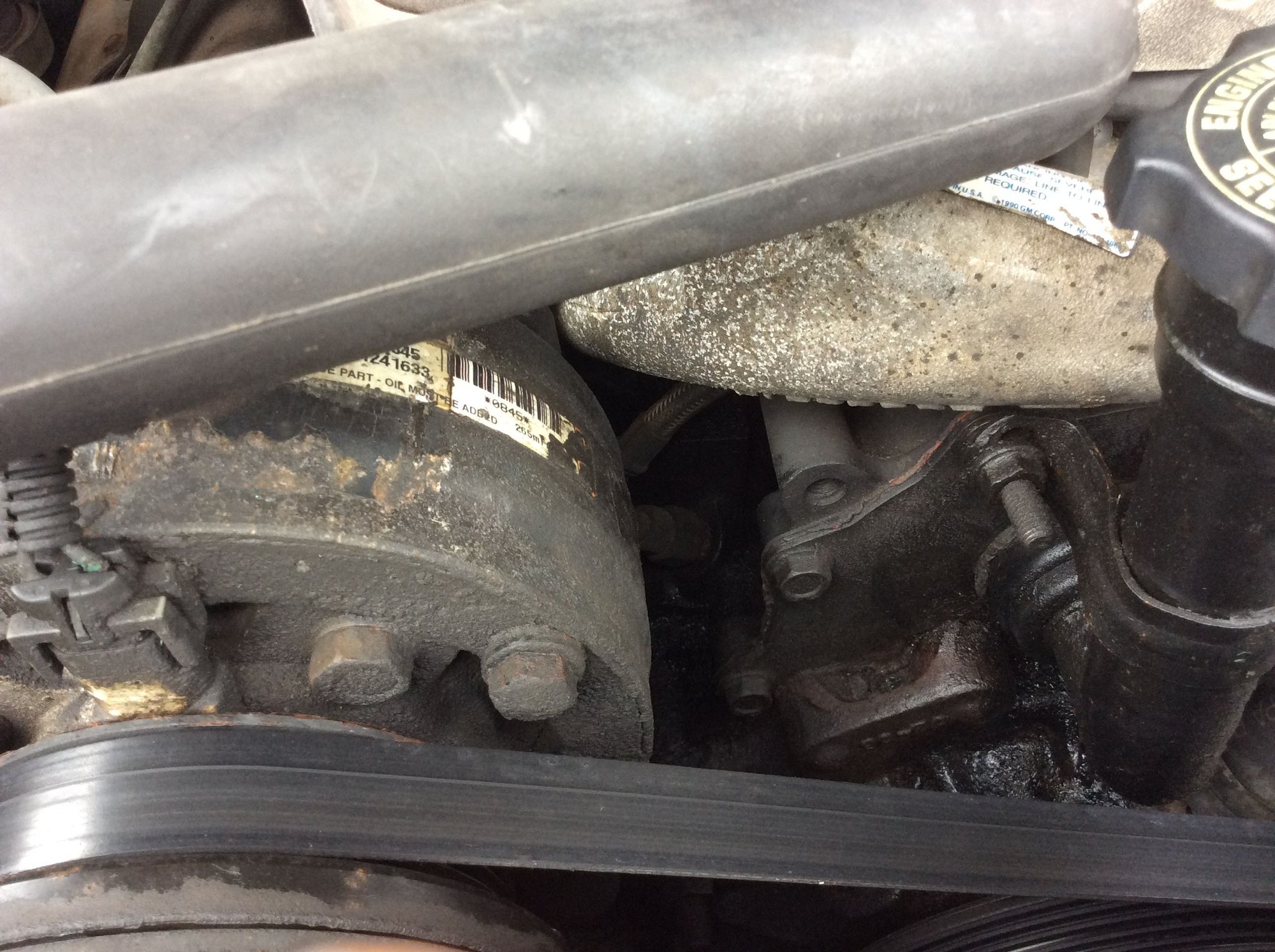

Ok mine is a 1993 but I believe they are all the same here is where mine is ported to in the block behind the water pump.


Behind the A/C compressor.

  #3
Old 02-20-2016, 07:58 PM
wolf1365's Avatar
Diesel Fan
Thread Starter
Join Date: Sep 2009
Location: mid tn
Posts: 86
Received 2 Likes on 2 Posts
Default

yepper thanks thats what i thought
