5.9L Rotary Performance Discussion of 12 Valve 5.9 Liter Dodge Cummins Diesels with Rotary Injection Pumps Related To Performance And Longevity

3 angle valve seats grinding

Thread Tools

Search this Thread

  #1
Old 04-14-2010, 10:21 AM
cumminskid92's Avatar
Diesel Enthusiast
Thread Starter
Join Date: Dec 2008
Posts: 305
Received 4 Likes on 4 Posts
Default 3 angle valve seats grinding

Alright if anybody ever has their head of and sent to a machine shop have them do a 3 angle grind on the valve seats. When my head gasket went out i did all my own head work at school. i did a three angle grind and before with the stock injectors and pump cranked i could hit 1200* egts pretty quick. now no matter how long i keep my foot in it with 100 horse pods i can barely get to 850*. alot less smoke and runs a hell of alot better.

  #2
Old 04-18-2010, 10:52 PM
seandonato73's Avatar
Diesel Wrench
Join Date: Oct 2009
Location: lebanon, Pa
Posts: 603
Received 9 Likes on 9 Posts
Default

i have a ported head off a 97 on my truck, DDP 80hp injectors, and my pump maxed out among other things, and i can't keep my egt's under 1300* at W.O.T. so i can't say that how you ground the valve seats would affect your egt's

  #3
Old 04-18-2010, 11:19 PM
big bad diesel 416's Avatar
Site Sponsor
Join Date: Apr 2009
Location: Lexington SC
Posts: 3,719
Received 636 Likes on 254 Posts
Default

Originally Posted by seandonato73
i have a ported head off a 97 on my truck, DDP 80hp injectors, and my pump maxed out among other things, and i can't keep my egt's under 1300* at W.O.T. so i can't say that how you ground the valve seats would affect your egt's
thats what they do on high HP gas rigs to help the seal and flow but i would not see a benefit on a diesel being you have the turbo pushing the air

---AutoMerged DoublePost---

Originally Posted by cumminskid92
Alright if anybody ever has their head of and sent to a machine shop have them do a 3 angle grind on the valve seats. When my head gasket went out i did all my own head work at school. i did a three angle grind and before with the stock injectors and pump cranked i could hit 1200* egts pretty quick. now no matter how long i keep my foot in it with 100 horse pods i can barely get to 850*. alot less smoke and runs a hell of alot better.
theres no way in hell that just doing a 3 angle grind did all that for you
if so everyone and there mother that owns one needs to do it


Last edited by big bad diesel 416; 04-18-2010 at 11:19 PM. Reason: Automerged Doublepost
  #4
Old 04-19-2010, 12:28 AM
cumminskid92's Avatar
Diesel Enthusiast
Thread Starter
Join Date: Dec 2008
Posts: 305
Received 4 Likes on 4 Posts
Default

i dont know but it made i world of difference on my truck. i suppose the three angle grind just allows air to flow a little better.

  #5
Old 04-19-2010, 12:42 AM
big bad diesel 416's Avatar
Site Sponsor
Join Date: Apr 2009
Location: Lexington SC
Posts: 3,719
Received 636 Likes on 254 Posts
Default

Originally Posted by cumminskid92
i dont know but it made i world of difference on my truck. i suppose the three angle grind just allows air to flow a little better.
oh it dose but i have a 97 head which flows more to begin with then its ported and polished and i barely saw a 200* drop

  #6
Old 04-19-2010, 03:24 PM
Richie O's Avatar
Diesel Enthusiast
Join Date: Jan 2009
Location: New England
Posts: 267
Received 17 Likes on 14 Posts
Default

I would say your pryo is junk. It happens. Or your not getting as much fuel somehow.

  #7
Old 04-19-2010, 03:51 PM
big bad diesel 416's Avatar
Site Sponsor
Join Date: Apr 2009
Location: Lexington SC
Posts: 3,719
Received 636 Likes on 254 Posts
Default

that is also an option

  #8
Old 04-19-2010, 06:31 PM
BC847's Avatar
Diesel Enthusiast
Join Date: Nov 2008
Location: In an old bus, down
Posts: 438
Received 108 Likes on 71 Posts
Default

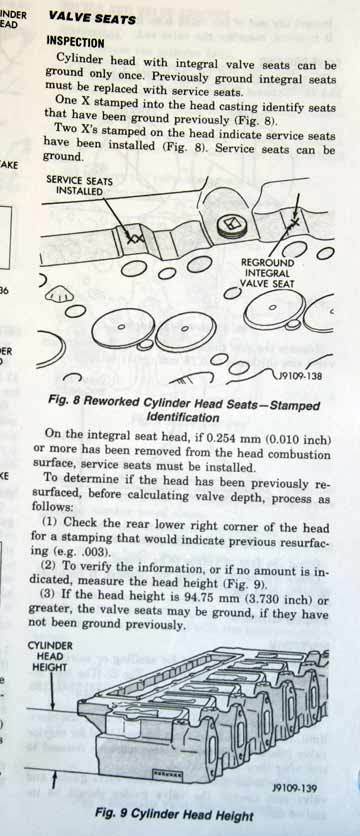

Y'all be careful grinding on the valve seats as they are induction hardened, integral from the factory. Getting heavy-handed with the grinder can result in needing to install service valve-seats.

Read:

Name:  ValveSeats.jpg
Views: 915
Size:  53.6 KB



Integral Seats (default)
Name:  IntegralValveSeat.jpg
Views: 1655
Size:  93.1 KB



Service Valve Seats (continued from bottom of above)
Name:  ServiceValveSeat.jpg
Views: 953
Size:  106.2 KB


Last edited by BC847; 04-19-2010 at 06:32 PM. Reason: Automerged Doublepost
  #9
Old 04-19-2010, 06:37 PM
big bad diesel 416's Avatar
Site Sponsor
Join Date: Apr 2009
Location: Lexington SC
Posts: 3,719
Received 636 Likes on 254 Posts
Default

good point david
