The following is for a '93 W250 with the A518. Hope it helps. (You may have to zoom in even after enlarging the images).

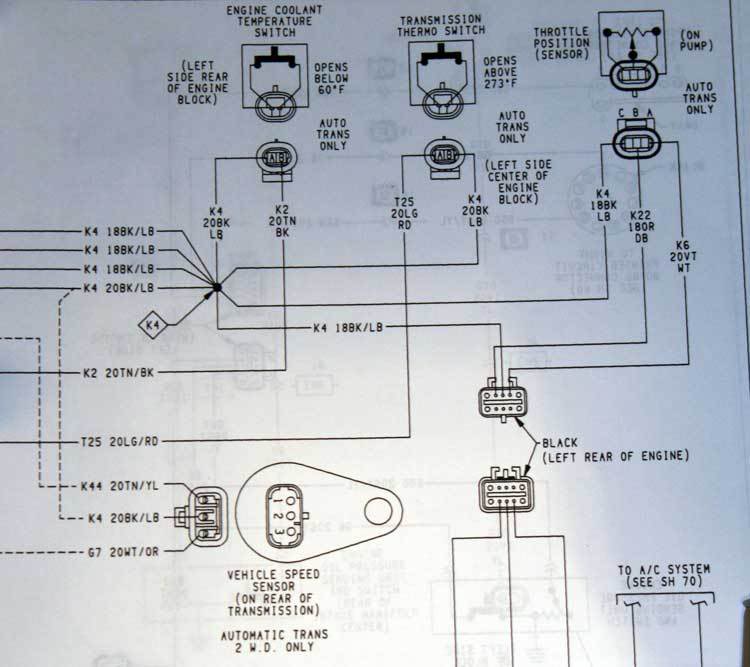

Cable routing and plug locations . . .

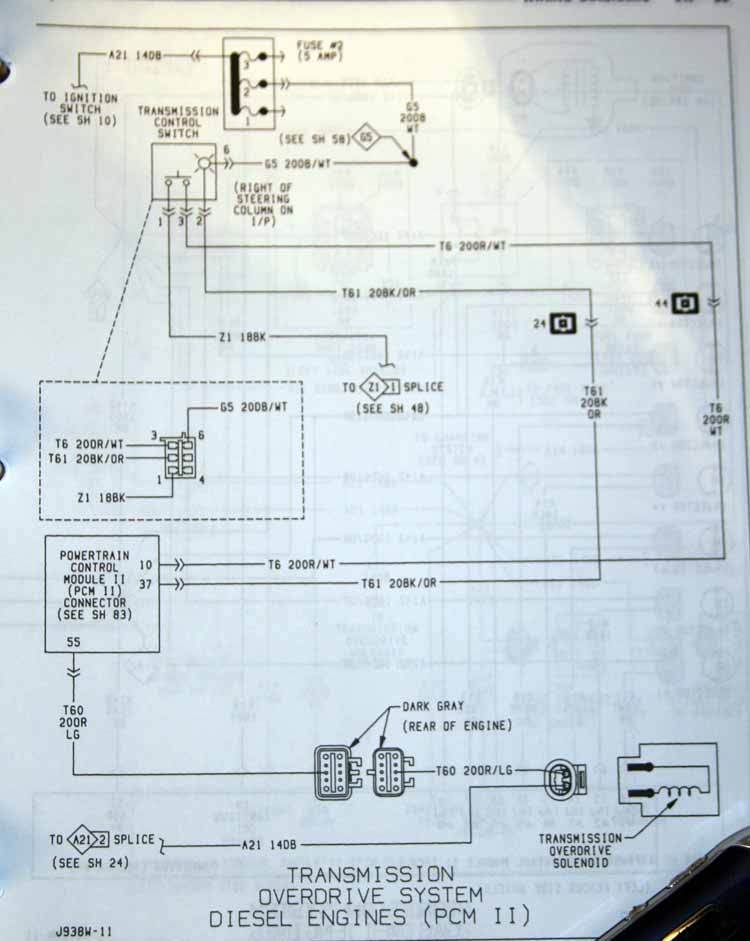

And wiring associated with the OD . . . .
(Unless I'm mistaken, once vehicle speed sensors, trans fluid temp sensors, etc are set, the PCM grounds the light-grey wire of the OD solenoid. The ignition switch applies 12vdc to the dark-blue wire).
Park/Neutral switch . . .
And transmission thermo switch . ..
Cable routing and plug locations . . .
And wiring associated with the OD . . . .
(Unless I'm mistaken, once vehicle speed sensors, trans fluid temp sensors, etc are set, the PCM grounds the light-grey wire of the OD solenoid. The ignition switch applies 12vdc to the dark-blue wire).
Park/Neutral switch . . .
And transmission thermo switch . ..
