Looking to build my own twin piping. I plan on using a hx35 and ??????? for turbos. I wanna see your pics(as many as you can or have from any angle). I have access to pretty much all the shop tools I need to do it. Not building them to start selling them, this will be for my own truck. I searched and all that comes up is a few companies kits. I wanna build my own not use someones kit.



I used a HX35 and S400 for my COMPOUND set up.
https://www.dieselbombers.com/5-9l-2...urbos-2-a.html



Same setup Im thinking about. How did you mount the bottom turbo?



It's just bolted to my hot pipe, nothing else.



What size exhaust housing you running on the s400

---AutoMerged DoublePost---

Maybe if I would have read the whole thread in the link



It has an A/R of 1.34, not to sure of the cm's. I bought a 1.00A/R housing off a complete liar. With that said, it wasn't for an S400, it's for a Mack turbo. I do have a very good door stop now though.

Haha, no problem. There are 5 pages there.



Thinking a 1.34 is a 21cm, could be wrong. Turning into a crap shoot when buying stuff of any of the forums anymore.
Thanks for all the help!!



No problem. If you want any other pic, shoot me a PM with an email or phone number to send them to. I'll do my best to get them.



http://s1094.photobucket.com/albums/i452/9512cummins/
here is the link i have to my tubo set-up. im actually sellin it but youre a bit too far away

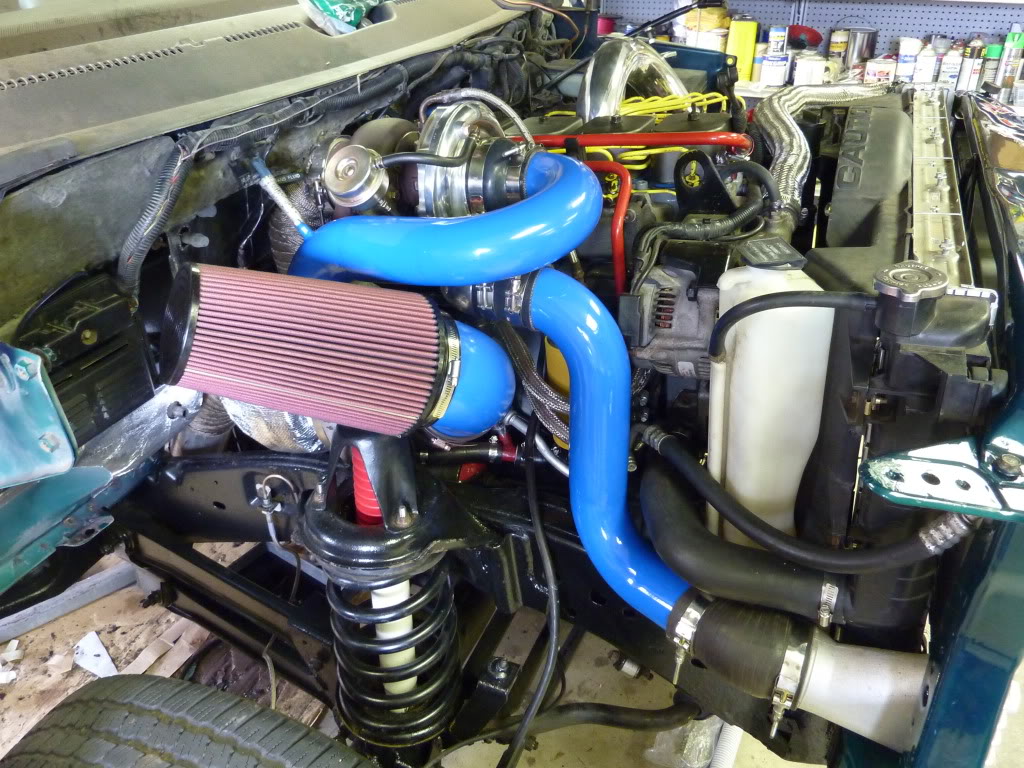

Mine looks like this:



Oh, if you need input on the oil return, this works well. The bottom line has more slope than it looks like too.
