Default bumper bolts

I need to take both front and rear bumpers off. Can anyone give me help as of to what size bolts and how many are there?

  #2
Old 10-04-2012, 09:07 AM
RAW's Avatar
RAW
RAW is offline
Administrator

iTrader: (1)
Join Date: Aug 2009
Location: Alberta
Posts: 6,218
Received 684 Likes on 549 Posts
Default

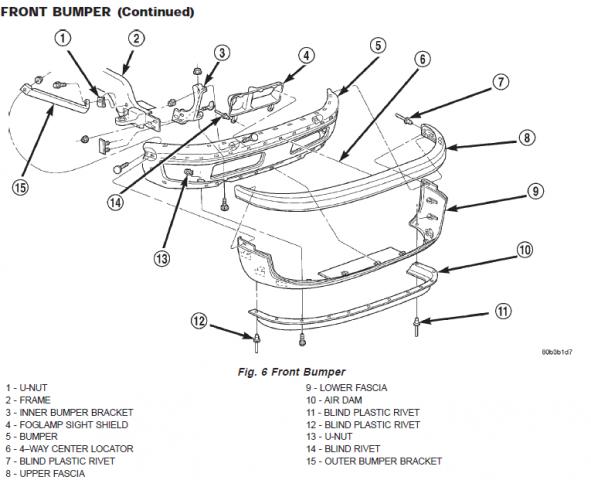

Attached are a couple exploded view pictures of the bumpers. 3 large (M12?) bolts plus the little strap (M8?) per side for the front. It is a little tricky to remove without completely removing the side straps, but is possible.

The rear is just 3 bolts (M12?) per side, the inner bracket does not need to be removed.

Hope that helps.

Attached Thumbnails bumper bolts-rear-bumper.png   bumper bolts-front-bumper.jpg
The following users liked this post:
codyawise (10-04-2012)
