93 cummins with auto trans - need help with trans cooler lines
#1
93 cummins with auto trans - need help with trans cooler lines
hey guys i got my cummins runnin today and its blowin oil out of the lines that i dont have hooked up from the transmissions. i am able to get some of them hooked up at least the ones that i know where they go. but there are two that i dont know where they go to. i know where all the metal lines go pretty much lost on the rubber lines. any way anyone could draw me up a quick little drawing on microsoft paint or something just on where the trans lines go to or give me a pointer on where they go? alldata is no help with this one.
thanks in advance!!
thanks in advance!!
#3
#5

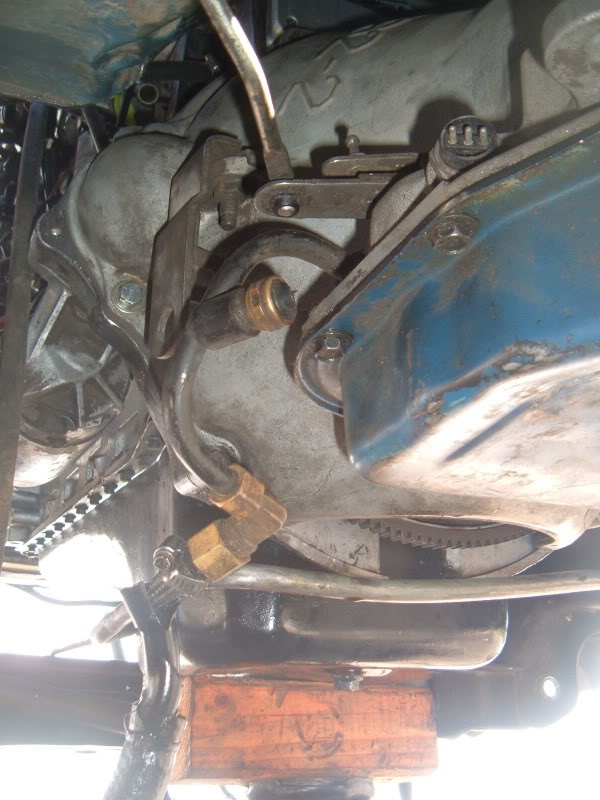

this is the first one that i dont know where it goes. it is the one with the 90 degree turn it in.
this is the second one. it is the one towards the back of the engine (on the left in the pic) it drops down and turns to rubber hose and i dont know where it goes from there.
any help is greatly appreciated. thanks guys
#6
Should have one from the front cooler fitting on the trans up to the rear of the heat exchanger
one from the front of the exchanger to the cooler itself
and one from the back trans fitting straight to the cooler
I can't see how it would matter which direction the fluid actually moves through the system, so think of it as being 2 lines off of the transmission, up to the oil cooler, with one of them being detoured up through the heat exchanger
one from the front of the exchanger to the cooler itself
and one from the back trans fitting straight to the cooler
I can't see how it would matter which direction the fluid actually moves through the system, so think of it as being 2 lines off of the transmission, up to the oil cooler, with one of them being detoured up through the heat exchanger
#8
i drew up this little picture. does this look like it would work? it would send the trans output to the heat transfer, then from the heat transfer to the tranny cooler, than from the tranny cooler back to the trans. does this look like itll work? thanks everyone for their input!
#9
The transmission port in the first picture is the hot line; that is where the ATF leaves the transmission and is at it's hottest.
The return line to the transmission is back on the same side, towards the rear.
The stock fluid flow is from the hotline to the rear port of the liquid-to-liquid exchanger on the side of the engine, from the front port of the liquid-to-liquid exchanger to the finny cooler, then from the finny cooler to the rear port on the transmission.
But, the direction or path of fluid flow doesn't really matter.
The return line to the transmission is back on the same side, towards the rear.
The stock fluid flow is from the hotline to the rear port of the liquid-to-liquid exchanger on the side of the engine, from the front port of the liquid-to-liquid exchanger to the finny cooler, then from the finny cooler to the rear port on the transmission.
But, the direction or path of fluid flow doesn't really matter.
