upgrade turbo to HX35W?
#1
upgrade turbo to HX35W?
Hi, I'm new here. Nice site! I have a 93 cummins that is running loaded all the time. I have a big camper on it and i use it to pull my race car trailer. The mods are listed in my sig. It has 140,000 miles on the stock injectors, and I figured they must be worn out by now. So I just ordered some rebuilt bosch injectors that are 5 x .012, and I am adding 4" exhaust. EGT's can get way high, especially on a long uphill pull.
What I want to accomplish is better mileage towing, less smoke, especially when leaving from a stop, and lower EGTs. Extra power would be a bonus, but it does fine the way it is.
So would swapping an HX35w assembly into my exising 16cm non-wastegated exhoust housing be a good step? I see these for sale on ebay by the ricers, and they claim "twing scroll"60 mm". I am assuming that is a good thing? Or is there a better choice. I am short on time before my next trip, so I am looking for something easy and fast if I do it now, or I can wait till winter and do something more time consuming. And cheap if possible.
Any advice or suggestion would be evry much appreciated!
Thanks, Joel
What I want to accomplish is better mileage towing, less smoke, especially when leaving from a stop, and lower EGTs. Extra power would be a bonus, but it does fine the way it is.
So would swapping an HX35w assembly into my exising 16cm non-wastegated exhoust housing be a good step? I see these for sale on ebay by the ricers, and they claim "twing scroll"60 mm". I am assuming that is a good thing? Or is there a better choice. I am short on time before my next trip, so I am looking for something easy and fast if I do it now, or I can wait till winter and do something more time consuming. And cheap if possible.
Any advice or suggestion would be evry much appreciated!
Thanks, Joel
#2
your better off doing a small s300 very streetable turbo and would be good for the mods toy have listed and make sure you get guages before you melt that engine.
---AutoMerged DoublePost---
ooh and you might want to re-gear to 4:10s
---AutoMerged DoublePost---
ooh and you might want to re-gear to 4:10s
Last edited by jdbigblue12v; 08-15-2012 at 03:40 PM. Reason: Automerged Doublepost
#3

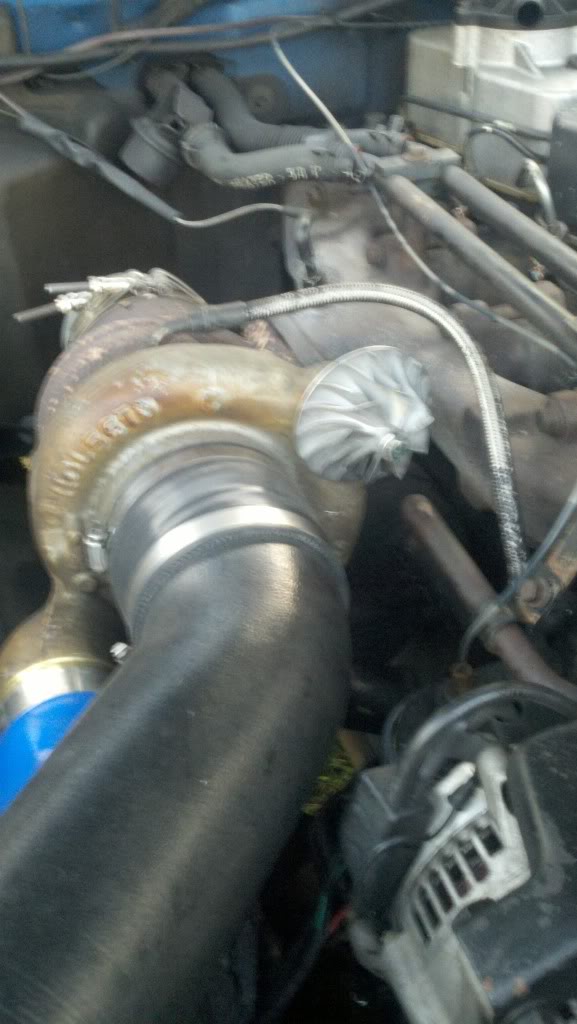

I am running a HX35 with 5x.012 injectors. I have more pump tuning to do, but so far I haven't yet been able to get past 1200 degrees running empty - no matter how hard I try.
The exhaust housing on the HX35 might to too tight/hot for towing heavy.
Overall, still a big improvment over the H1C.
The exhaust housing on the HX35 might to too tight/hot for towing heavy.
Overall, still a big improvment over the H1C.
#4
#5
#7
Oh, I forgot to put the guages in my signature. Yes, I have pre-turbo EGT, trans temp, and boost guages.
I just won a turbo off of ebay, a HE351cw. he351cw holset turbo 04 05 06 07 5.9 cummins | eBay
Now I have to learn how to operate the waste gate on this thing. Any ideas?
I think I can make an exhaust adapter on the lathe that I can weld to the exhaust pipe and clamp to the turbo.
How about the oil lines, does anyone know if they fit?
Thanks! Joel
I just won a turbo off of ebay, a HE351cw. he351cw holset turbo 04 05 06 07 5.9 cummins | eBay
Now I have to learn how to operate the waste gate on this thing. Any ideas?
I think I can make an exhaust adapter on the lathe that I can weld to the exhaust pipe and clamp to the turbo.
How about the oil lines, does anyone know if they fit?
Thanks! Joel
#8
#9
Sent from my DROIDX using Tapatalk 2
Last edited by moparbubbabt59l; 08-21-2012 at 03:32 PM.
