Default fuel pressure sensor

where do i but my fuel pressure sensor for my gauge pics would be awesome
Reply With Quote
  #2
Old 05-27-2010, 08:59 PM
94 12valve's Avatar
Diesel Bomber

Join Date: Jan 2009
Location: Pylesville, Maryland
Posts: 3,503
Default

I just installed a T fitting for mine.
Reply With Quote
  #3
Old 05-28-2010, 06:50 PM
ztk7220's Avatar
Diesel Fan
Thread Starter

Join Date: Jan 2010
Location: Freeport, Michigan
Posts: 77
Default

a T fitting on the main fuel line or what
Reply With Quote
  #4
Old 05-28-2010, 09:13 PM
cumminspwr11's Avatar
Diesel Wrench

Join Date: Apr 2010
Location: arizona
Posts: 567
Default

ya i would like to know also, i put mine on the top of the filter housing, the out-side that goes to the injection pump- is that a good location?
Reply With Quote
  #5
Old 05-29-2010, 08:02 AM
94 12valve's Avatar
Diesel Bomber

Join Date: Jan 2009
Location: Pylesville, Maryland
Posts: 3,503
Default

Quote:
Originally Posted by ztk7220 View Post
a T fitting on the main fuel line or what
yes, I put it on the feed line right before the injection pump
Reply With Quote
  #6
Old 05-29-2010, 06:31 PM
dan33klein's Avatar
Diesel Bomber
iTrader: (-1)

Join Date: Nov 2008
Location: cherry,il
Posts: 1,019
Default

drill and tap the banjo bolt
Reply With Quote
  #7
Old 05-29-2010, 07:43 PM
Dr. Evil's Avatar
BOMBARDIER

Join Date: Mar 2007
Location: North of You
Posts: 23,293
Default

Quote:
Originally Posted by dan33klein View Post
drill and tap the banjo bolt
on the P-7100 inlet...go with 1/8" NPT

Last edited by Dr. Evil; 05-29-2010 at 10:29 PM.
Reply With Quote
  #8
Old 05-29-2010, 08:28 PM
cumminspwr11's Avatar
Diesel Wrench

Join Date: Apr 2010
Location: arizona
Posts: 567
Default

i put on of the valve stem things that come on the newer 24vs on the outlet on top of the fuel filter housing and then ran a 12" braded line with sender on the end of it
Reply With Quote
  #9
Old 05-30-2010, 03:52 PM
94 12valve's Avatar
Diesel Bomber

Join Date: Jan 2009
Location: Pylesville, Maryland
Posts: 3,503
Default

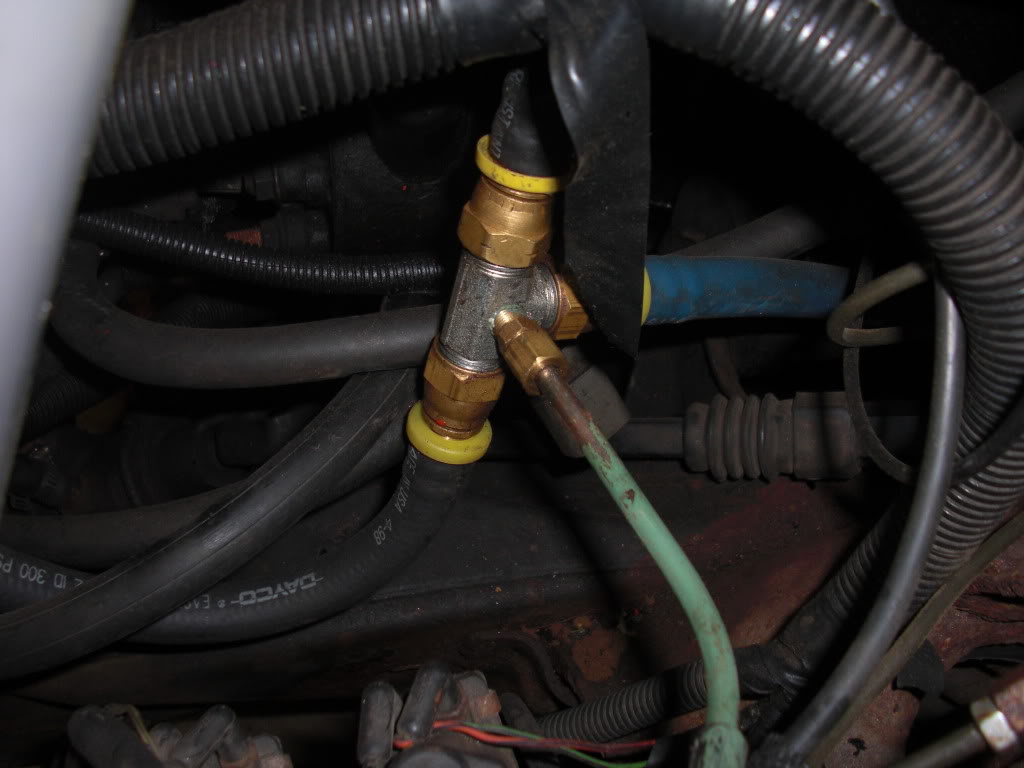

here is mine

Reply With Quote
  #10
Old 05-31-2010, 12:26 PM
Diesel Enthusiast

Join Date: Oct 2009
Location: south oc cali
Posts: 200
Default

i know summit and i think jegs sells in line adapters with the tap already there ... something along these lines ... idk if it will work for our trucks tho .. some one will chime in and say yes or no ...
Summit Racing SUM-G1711 - Summit Racing® Fuel Pressure Gauge Fittings - Overview - SummitRacing.com
Reply With Quote
