turbo and intercooler Q

Thread Tools

Search this Thread

  #1
Old 01-19-2010, 09:14 PM
IH1206's Avatar
Diesel Fan
Thread Starter
Join Date: Jan 2010
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
Default turbo and intercooler Q
Hey guys, can anyone tell me what kind of turbo and what size (a pic would be great) came on 1994 12v's? and anyone got an idea of what size intercooler(dimensions, air flow #'s)?? thanks, and im new here!

Reply Like
  #2
Old 01-20-2010, 09:36 AM
ArizonaRedneck's Avatar
BOMBARDIER
Join Date: Oct 2009
Location: arizona
Posts: 4,366
Received 240 Likes on 192 Posts
Default
welcome to diesel bombers and all i got so far if your turbo is stock is that its an hx35 with a 12 cm exhaust and a 54 mm compressor

Reply Like
  #3
Old 01-20-2010, 09:42 AM
12valvetater's Avatar
Diesel Bomber
Join Date: Oct 2008
Location: Pennsylvania
Posts: 1,474
Received 35 Likes on 34 Posts
Default
It's a 94 so it should be a WH1C.

Reply Like
  #4
Old 01-20-2010, 11:01 AM
94 12valve's Avatar
Diesel Bomber
Join Date: Jan 2009
Location: Pylesville, Maryland
Posts: 3,504
Received 157 Likes on 142 Posts
Default
it could be either some late 94's had the hx35's

If I remember right the wh1c has the 54mm compressor and the hx35 has the 56mm.

Reply Like
  #5
Old 01-20-2010, 12:26 PM
ArizonaRedneck's Avatar
BOMBARDIER
Join Date: Oct 2009
Location: arizona
Posts: 4,366
Received 240 Likes on 192 Posts
Default
if the cummins part no is still on the turbo he can look there to and know for sure

Reply Like
  #6
Old 01-20-2010, 04:34 PM
12valvetater's Avatar
Diesel Bomber
Join Date: Oct 2008
Location: Pennsylvania
Posts: 1,474
Received 35 Likes on 34 Posts
Default
It's easier than that wh1c turbos have a v- band clamp that hold the compressor cover on, hx35s have a big snap ring.

Reply Like
  #7
Old 01-20-2010, 08:02 PM
IH1206's Avatar
Diesel Fan
Thread Starter
Join Date: Jan 2010
Posts: 15
Likes: 0
Received 0 Likes on 0 Posts
Default
mm, anyone know what stock boost #'s were?

Reply Like
  #8
Old 01-20-2010, 11:02 PM
12valvetater's Avatar
Diesel Bomber
Join Date: Oct 2008
Location: Pennsylvania
Posts: 1,474
Received 35 Likes on 34 Posts
Default
I've never drove a stock truck with gauges. 20 sounds about right. It would depend on what charger you had. When I went to and h1c from my hx35 i went from 48lbs to 37lbs flat footed in high gear out side temp 20*.

Reply Like
  #9
Old 01-20-2010, 11:43 PM
seandonato73's Avatar
Diesel Wrench
Join Date: Oct 2009
Location: lebanon, Pa
Posts: 603
Received 9 Likes on 9 Posts
Default
i made 32 with my stock H1C with the 60mm upgrade i make 42 psi ( i know i own a first gen but boost is boost)

Reply Like
  #10
Old 01-21-2010, 04:11 PM
94 12valve's Avatar
Diesel Bomber
Join Date: Jan 2009
Location: Pylesville, Maryland
Posts: 3,504
Received 157 Likes on 142 Posts
Default
Originally Posted by IH1206
Hey guys, can anyone tell me what kind of turbo and what size (a pic would be great) came on 1994 12v's? and anyone got an idea of what size intercooler(dimensions, air flow #'s)?? thanks, and im new here!
here are some pics

wh1c on the left s465 on the right
Name: CIMG0201.jpg Views: 369 Size: 164.9 KB

wh1c on the bottom and 62/65/14 on the top
Name: DSCF3816.jpg Views: 343 Size: 195.4 KB

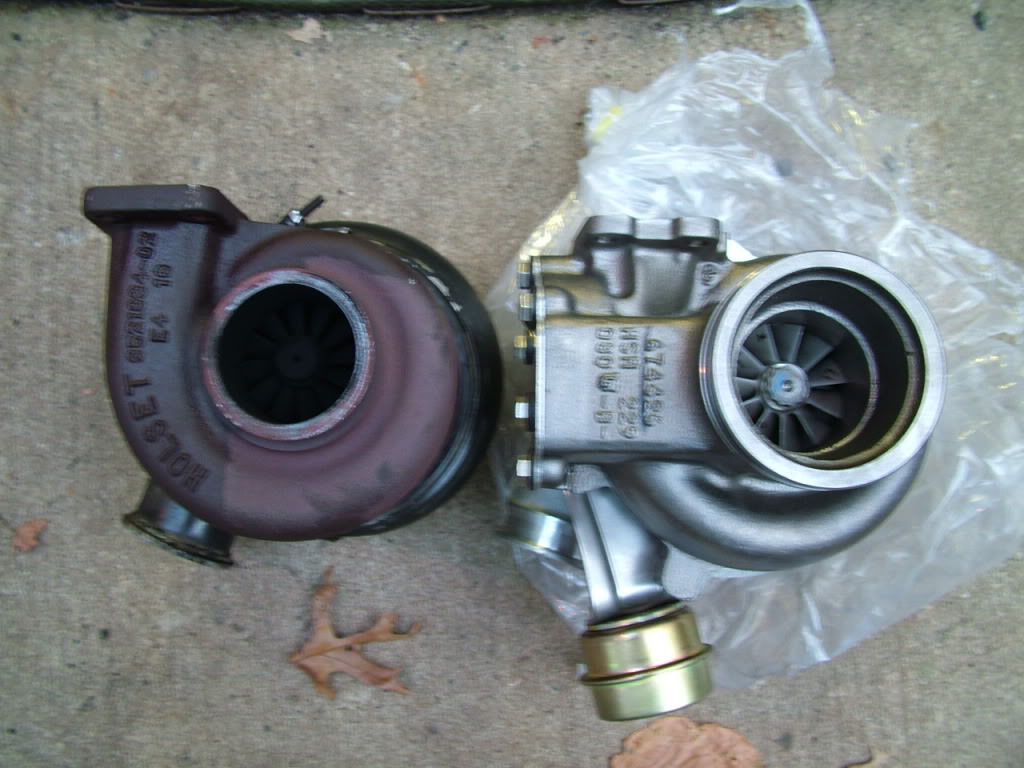

wh1c exhaust on the left and 62/65/14 " HX 40" exhaust on the right
Name: DSCF3817.jpg Views: 377 Size: 120.1 KB
