ok guys ive been readin the 12v forum and threads for 2 or 3 days now and i haven't been able to find any info on how to cut or modify my stock fuel plate . any info or pics would be greatly appreciated thanks.

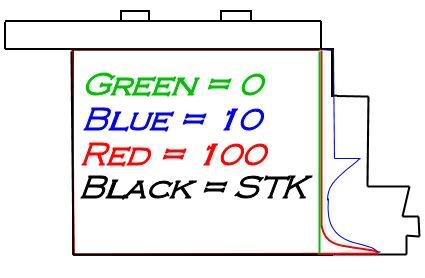

here is plate profiles



https://www.dieselbombers.com/12-val...-profiles.html



could you give me a discription of what each different one will do for me and what other mods will have to be done to allow the more drastic of the mods?

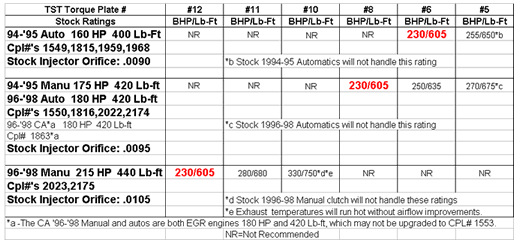

here ya go hope this helps



yes that helped alot.... now what is the best way of going about cutting the fuel plate itself?



what truck are you doing this on?



x2? .
I just looked at a plate diagram and then traced it on the plate. used a little grinder and a Roll-lock type sand paper wheel to smooth it out. worked great for me. it was a 100 plate i think. heck its been 3 years ago. it was smooth and at the very bottom it had a pointed tip. Would help to know what hp pump your workin with.



well the truck is a 95 s/c dually 5spd 2wd and the pump is a stock replacement that was just put on a month ago ... i am in the middle of tradin my old 6.2 chevy for it and the guy is a close friend of mine so he is driving mine and im in the dodge till the title comes in.... oh it has 265000 on it btw



stock clutch i assume?. how much power you wanting?. Got gauges?
