Default waste-gate cut-away
does anybody know where i can see a good cut-away pic of a waste-gate?

Reply Like
  #2
Old 07-03-2009, 12:10 AM
supersportjim's Avatar
Diesel Enthusiast
Join Date: Jun 2008
Location: Toms River, NJ
Posts: 211
Received 6 Likes on 6 Posts
Default

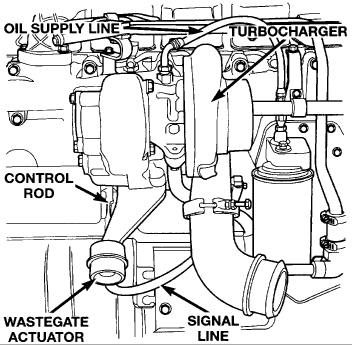

this is the best I could come up with on Alldata

Attached Thumbnails waste-gate cut-away-wastegate-1.gif   waste-gate cut-away-wastegate.gif
Reply Like
  #3
Old 07-03-2009, 07:19 AM
12valvetater's Avatar
Diesel Bomber
Join Date: Oct 2008
Location: Pennsylvania
Posts: 1,474
Received 35 Likes on 34 Posts
Default
all i know is it is only fed by 3 cylinders

Reply Like
