Default 1988 Chevy Crew Cab build

Hey guys, thought I would share my build. Please bear with me as it will be a slow build (tight funds and truck is 35 mins away)

started life as lowly 2wd 1ton work truck with 350tbi and 4spd manual, previous owner converted to 4wd with axles,tranny and transfer case from 1/2 ton meaning weaker axles 3.08 ratios and a 700r4 AUTO.

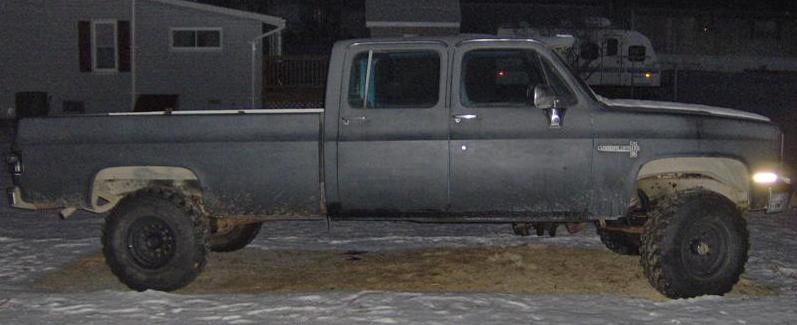

first day I had truck I swapped the axles for a set I had laying around (dana 44hd front and 14bolt FF rear with 3.73 gears) and lifted truck 4" with used lift I also had laying around...along with 5 35x14.50x16.5 STA trailbreaker tires bringing truck to this point
Attached Images
File Type: jpg HPIM1013 (Medium).jpg (49.6 KB, 194 views)
Reply With Quote
  #2
Old 10-10-2009, 06:35 PM
Diesel Fan


View Member's Albums

Default

drove truck for about a week and got bored with the gutless 700r4 3.73ratio and 35" tall tire combo (truck is really heavy)

so out came front axle,trans and transfer case,and springs

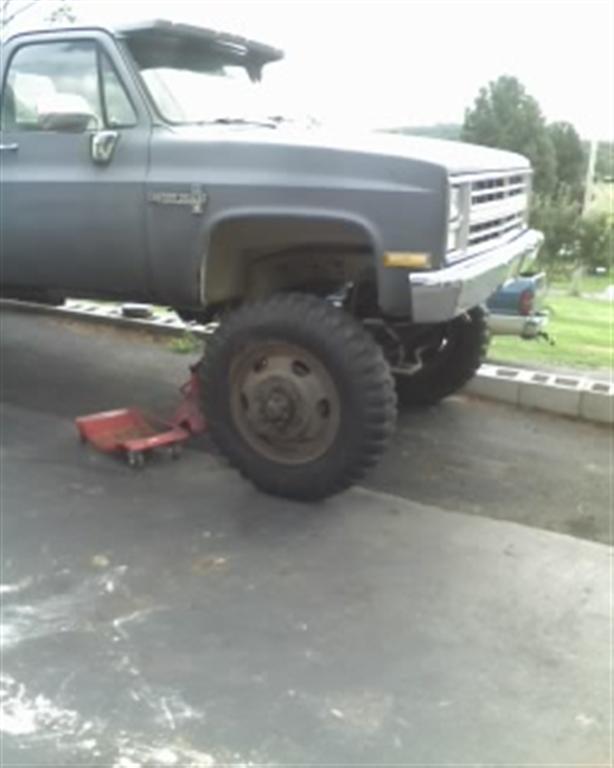

in went 52" chevy rear springs with AAL's, 2.5ton GMC front axle (with 6.17 gears), 5spd manual NV3500 trans and np241 transfer from newer body style 89 chevy truck... for now has 39" tall stock military 9.00-20 tires

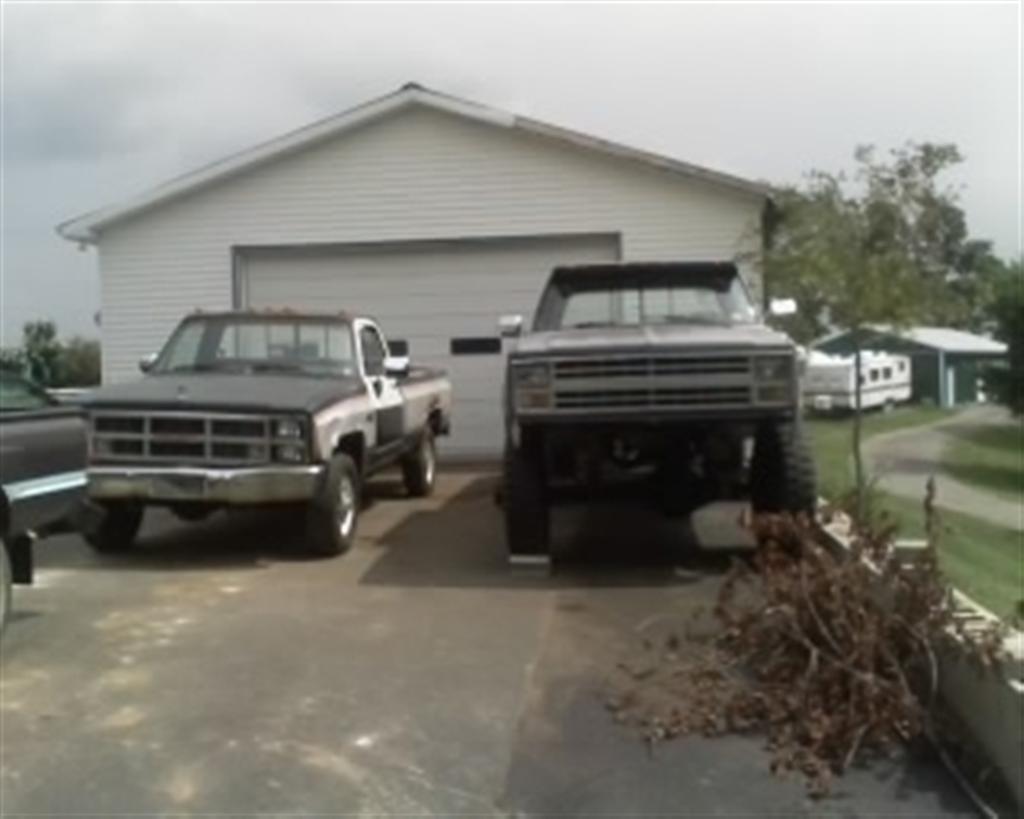

2nd pic is with stock 4wd 2500 gmc so you can tell how much lift is on it
Attached Images
File Type: jpg 37d5857e8345__1249228261000 (Large).jpg (34.1 KB, 141 views)
File Type: jpg 0e4b08120cb6__1250181354000 (Large).jpg (56.5 KB, 156 views)
Reply With Quote
  #3
Old 10-10-2009, 06:36 PM
Diesel Fan


View Member's Albums

Default

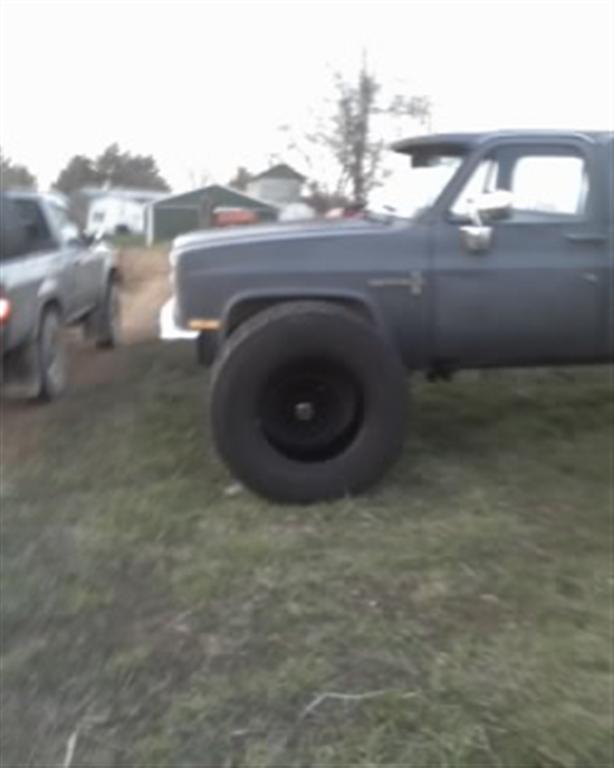

truck beside it is a 6.2L diesel truck that I am pulling motor from for this swap... I have hummer headers and a M90 eaton supercharger that i am fabbing intake for on top of 6.2... was going to turbo but with engines low rpm manners I thought the turbo would only be useful for very small rpm band...so super charged it will make boost at idle and top out at about 8psi perfect for slow revving diesel

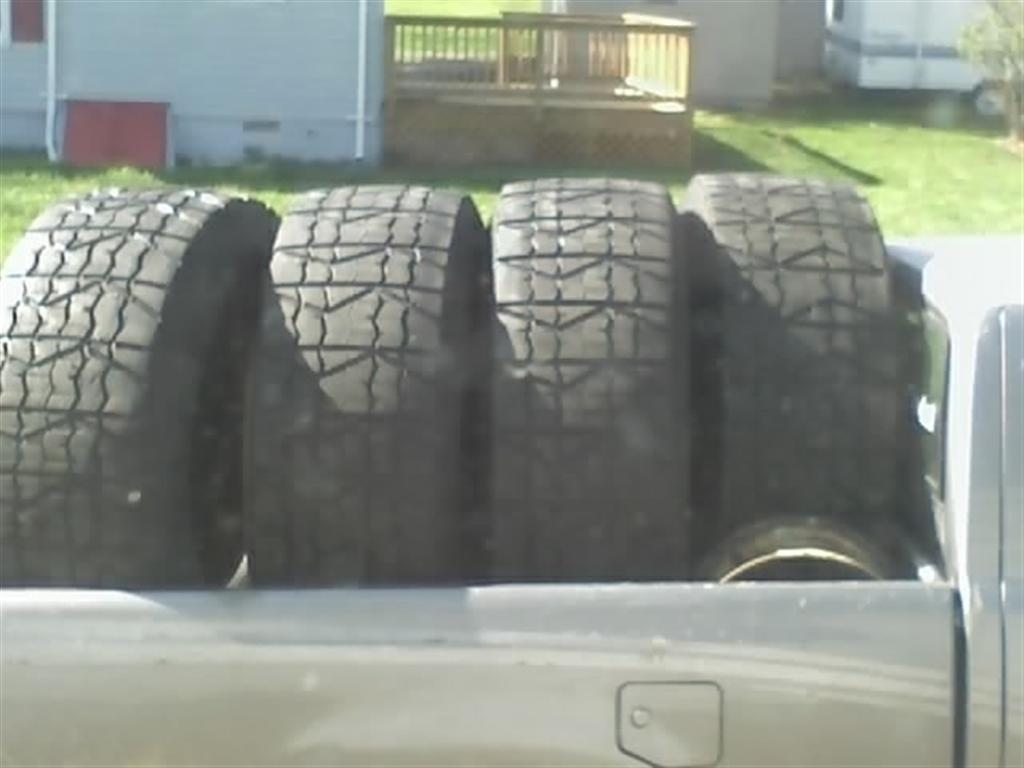

also here is picture of tires I have for truck... they are 425/65/22.5 super singles from front of cement trucks

equal out to be about 43" tall 14" wide AT tire


using gear ratio calc program should be running around 2288 RPM @65mph PERFECT!! campared to a stock military chevy's 3288rpm @65 (th400.4.56 gears and 32" tires stock)
Attached Images
File Type: jpg 3ccfa50f9aa5__1251470531000 (Large).jpg (55.9 KB, 125 views)
File Type: jpg c95938d361d6__1251470543000 (Large).jpg (30.9 KB, 122 views)
Reply With Quote
  #4
Old 10-10-2009, 06:38 PM
Diesel Fan


View Member's Albums

Default

the 2.5 axles are from a 1950's GMC military truck.. they are normal faceload style instead of "toploader" like rockwells.. one wierd fact about them is they are setup passenger side high pinion reverse rotation front, low pinion standard rotation rear using the exact same carriers.. all you have to do up front to be able to run a standard transfer case (instead of the huge heavy military one) is either flip the front around from high pinion to low pinion staying passenger side OR flip axle front to rear and stick the carrier in the spot where cover used to be, making it a driver side low pinion standard rotation.

if you want to keep it passenger side pinion you have to notch the housing for the ring gear and shorten one inner axle shaft, if you flip it over to the driver side you dont have to do either but requires different transfercase (which I already had along with newer 5spd from a IFS equipped chevy)

there are few different ones

10 spline set with 6.67 axle gears (weaker axles)

10 spline set with 7.20 axle gears (weakest axles and VERY RARE 2yrs only I think)

27 spline set with 6.17 axle gears (strongest set)

by comparison the 10 spline axles are about as strong as stock rockwell axles, the 27's are little stronger, but people like rockwells because of the top loader design and there are aftermarket parts for them... onlything available for gm's are stock replacement bearings,seals and a detroit locker

I went with them to try and keep my truck all gm and because they have a better gear ratio for the street unless you are running super tall tires (rockwells come with 6.72 gears)

also drum brakes with 2 wheel cylinders per drum, I am working on a disk setup right now though

here is pic of the inner axle at the splines
Attached Images
File Type: jpg 2.5 TON 003 (WinCE).jpg (17.9 KB, 36 views)
Reply With Quote
  #5
Old 10-10-2009, 06:41 PM
Diesel Fan


View Member's Albums

Default

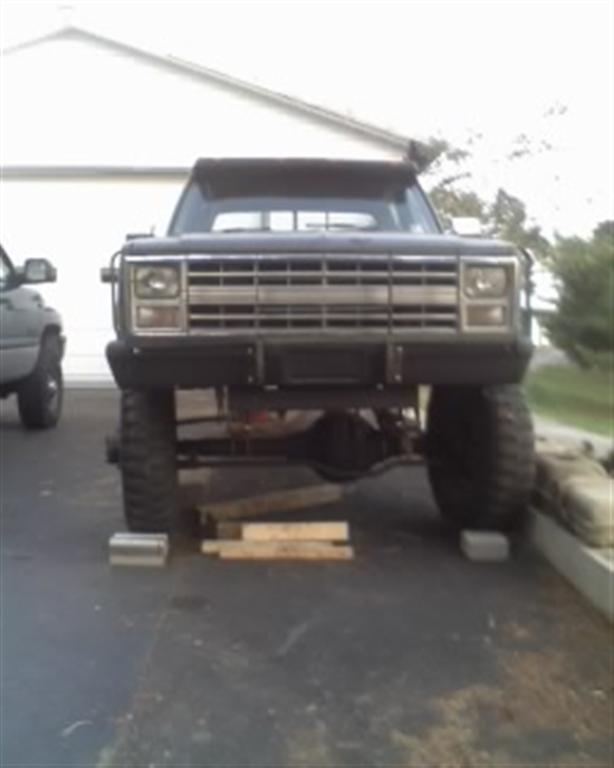

here is a cell pic from this weekend you can see bumper is flat blacked but ran out on brush guard so i will have to finish it up later


got the rear frame mounts finished up for triangulated 4link using bushings at frame end and heims on axle
Attached Images
File Type: jpg ddb6a5816f5c__1252253691000 (Large).jpg (31.4 KB, 85 views)
Reply With Quote
  #6
Old 10-10-2009, 07:23 PM
sidekick's Avatar
Diesel Bomber
Status: Goerend Trans is SWEET


Send a message via AIM to sidekick View Member's Albums View Member's FaceBook Profile View Member's Youtube Account

Default

sounds like a cool project keep us posted i have a restored 83 reg cab short bed im getting ready to do but i have rockwells toploaders for mine. 6.72ratio 35" tires and a turbo 400 trans can we say hi rpms at 60mph

sidekick's Sig:2006 Ram 2500 3" leveling kit, 33" Nitto Terra Grapplers,
18" Xtreme Alloy 6001 wheels, S&B cold air intake and air horn,
Magna Flow 5" turbo back exhaust, Mads Electronics Smarty, Edge Juice w/Attitude (HOT UNLOCK), Quadzilla rail and fuel pressure gauge,Devils Own Water Meth, BD Super B Special Turbo, BD Boost Fooler, Trans and Converter by GOEREND , Home made traction bars, Super spring helper springs

Reply With Quote
  #7
Old 10-10-2009, 09:23 PM
Sycostang67's Avatar
Diesel Wrench
Status: I seen some THINGS man!


View Member's Albums

Default

Looking pretty sweet so far.

Sycostang67's Sig:1993 F-250HD SC XLT Lariat 4X4 7.3/ZF5spd ATS WG Turbo @ 12psi, 3" DP 4" straight exhaust, 5" stacks, Hypermax cowl induction, IP up 3 flats, DPS stage 1 injectors, SMF conversion w/12"clutch, GPR LED mod, Pyro/Boost guages
1986 F-250HD XLT Lariat 4X4 6.9/T19 Soup bowl mod, straight pipe.
Reply With Quote
  #8
Old 10-10-2009, 11:36 PM
Dr. Evil's Avatar
BOMBARDIER


Default

Id love to see a Cummins in there but old Chebbys are way cool...

Dr. Evil's Sig:
98 12V quad cab 4X4 AND 2001 24V quad cab 4X4


SEEN IT ALL, DONE IT ALL, CAN'T REMEMBER MOST OF IT !

Last edited by Dr. Evil; 10-10-2009 at 11:50 PM..
Reply With Quote
  #9
Old 10-11-2009, 11:15 AM
Diesel Fan


View Member's Albums

Default

thanx guys, yeah I would love to have a 400hp cummins in there but thats alot of $$ for something I dont really need.

I also started the project with idea to keep as much of it GM as possible, I had originally tried to source the 8.2L fuel pincher diesel/5spd eaton combo that gm put in buses and dump trucks....but again $$$ for a good running one or $$ to fix a broken one.

Truck is just going to be weekend cruiser for me and GF, might hook it to a sled once or twice for fun.

paint plans are dark blue with icicles hanging down from the body line, interior will probably be either blazer buckets and console up front and stock bench in rear OR 2 dodge ram quad cab benchs with the seat belts in seats.
Reply With Quote
  #10
Old 10-11-2009, 11:57 AM
12vcummins96's Avatar
Administrator
Status: not in my house you dont

Troy Davis

Default

hey good luck on this project it looks like you got it handled let us know if you need any advice

12vcummins96's Sig:

DIESEL BOMBERS ADMINISTRATOR

96 12v with LBDP 5x.014s Smokem Specials dual fed modded afc aeromotive fuel pressure regulator no plate 2095 rack plug Airdog 4ghd 63/68 .88 over a 76/85 24cm 46mm tial external gate bd cool down timer 5k gsk 60lb springs Ati Balancer ats arc flow Arps 21 degrees Kdp killed Isspro gauges built tranny 5 inch tb to a single 6 inc tip and a 125hp shot

They go wooooooossssssssshhhhhh the the truck goes VROOOOOOOOOMMMMM then the trans goes f* this
