Jeep cherokee xj with a v2203 kubota

  #1
Old 03-30-2013, 10:50 AM
Diesel Enthusiast
Thread Starter
Join Date: Mar 2013
Location: Monroe wa
Posts: 178
Received 34 Likes on 31 Posts
Default Jeep cherokee xj with a v2203 kubota

So this is my second build on this site and this time I will take better pics. The purpose of the build is to have a daily driver expedition type vehicle that can still achieve respectable mpg.30-35 hwy. my last build with a 99 ranger ext cab 4x4 currently is getting 39 hwy and 32 city very consistently. The jeep is a 88 cherokee that currently has a good 4.0l i6 and a 5-speed trans and 4x4. The jeep has electrical issues preventing it to run properly.(mice) I paid 300 for the jeep. I will update as progress goes Name:  image_zpsbf8b0b12.jpg
Views: 639
Size:  83.8 KBName:  photobucket-61111-1362899847543_zps269ac109.jpg
Views: 548
Size:  80.5 KB
Name:  photobucket-64820-1362899950858_zpsdabc5692.jpg
Views: 513
Size:  85.5 KB
Name:  photobucket-62799-1362899967704_zps7258c2cd.jpg
Views: 469
Size:  69.5 KB
Name:  photobucket-33816-1362900149869_zps974cffbf.jpg
Views: 493
Size:  83.8 KB


Last edited by Rangmar; 03-30-2013 at 10:55 AM. Reason: More pics
  #2
Old 03-30-2013, 11:06 AM
Diesel Enthusiast
Thread Starter
Join Date: Mar 2013
Location: Monroe wa
Posts: 178
Received 34 Likes on 31 Posts
Default

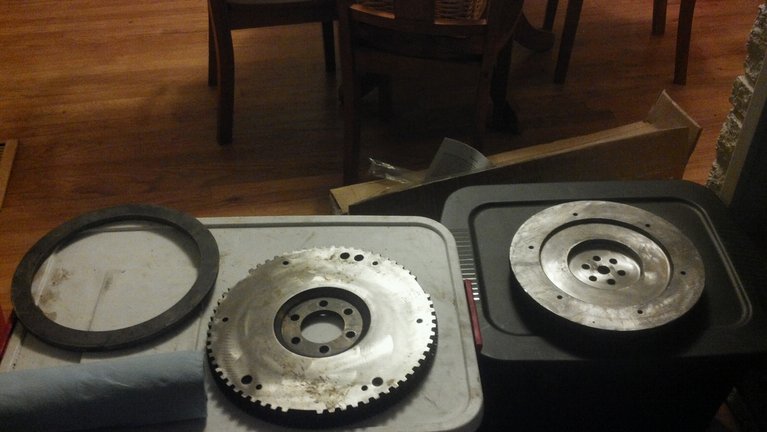

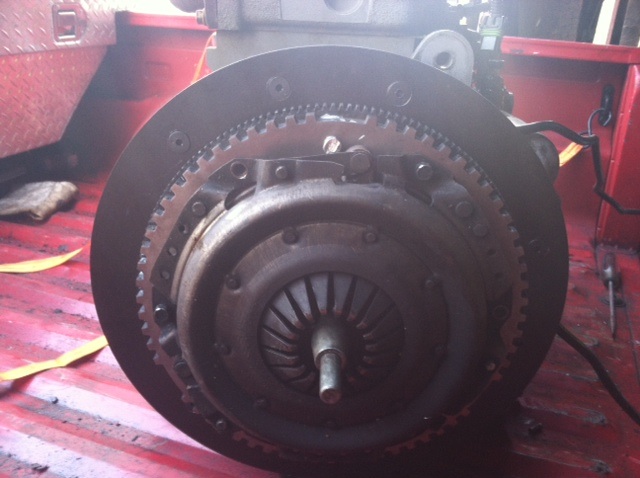

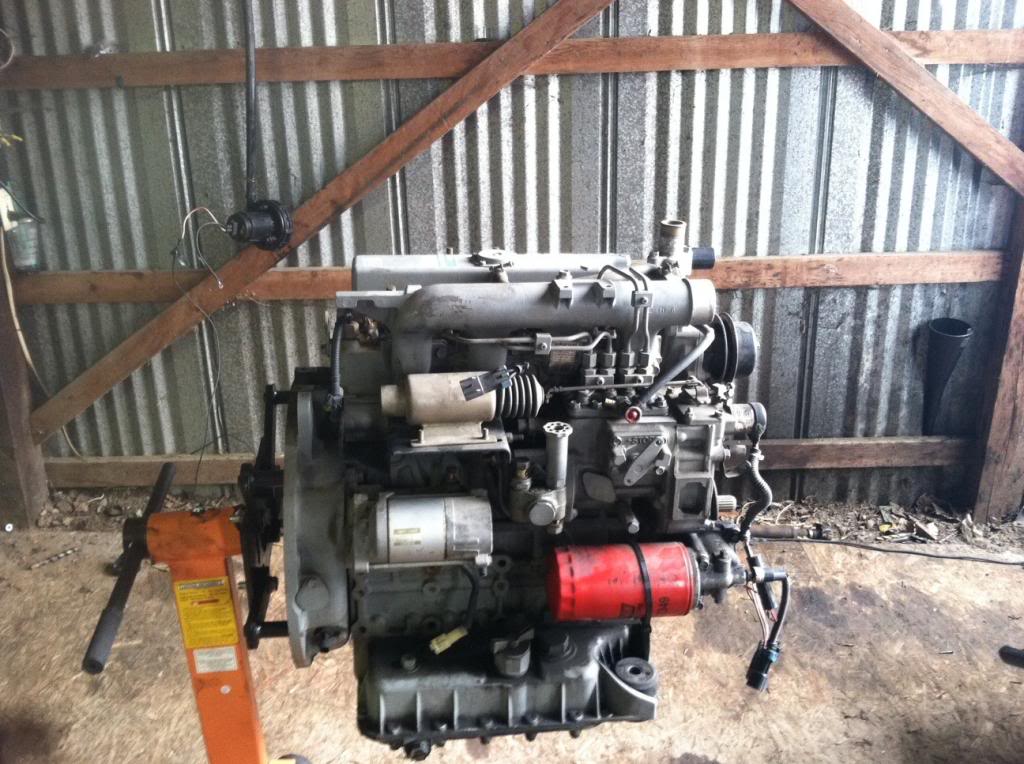

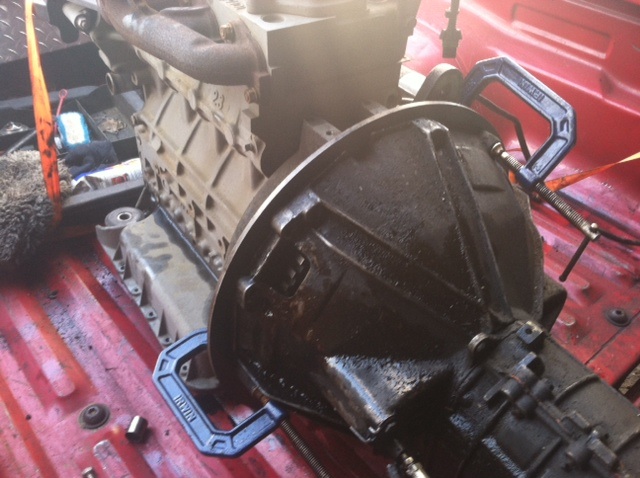

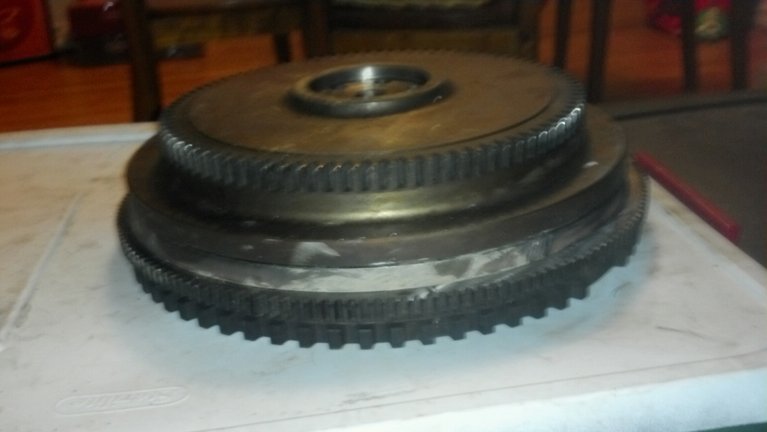

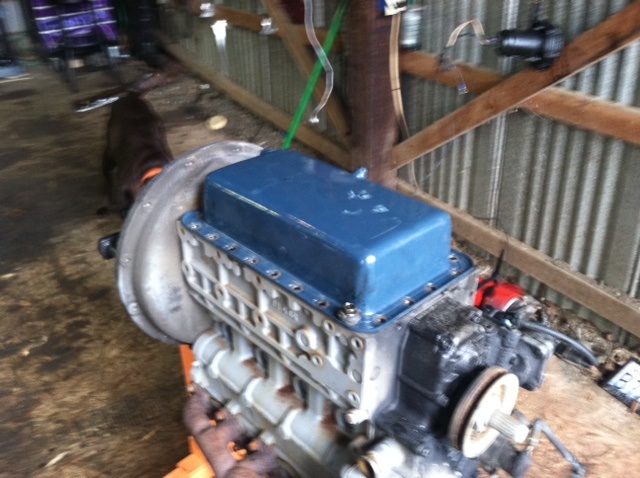

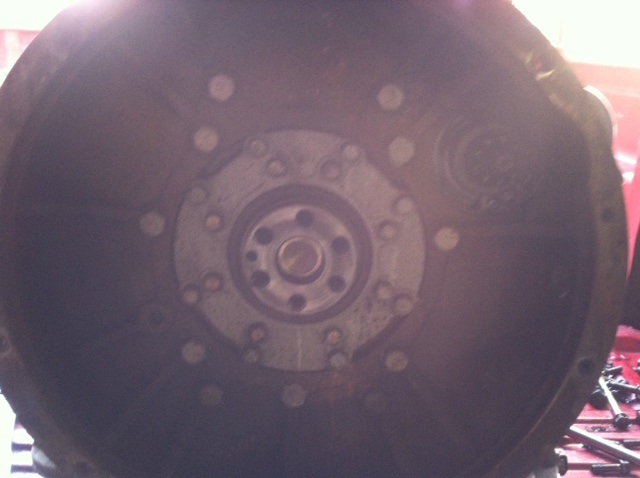

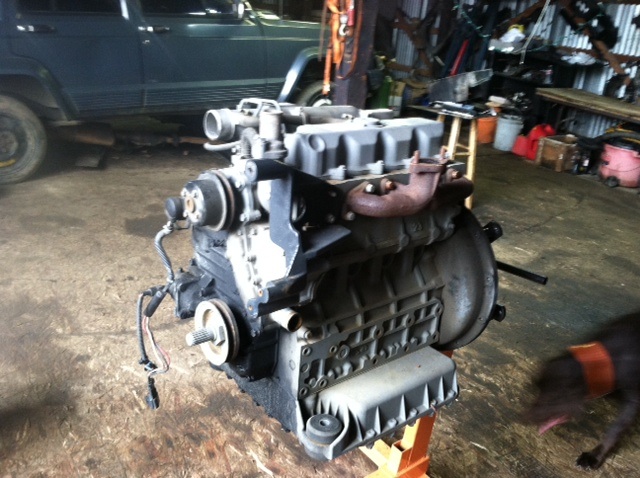

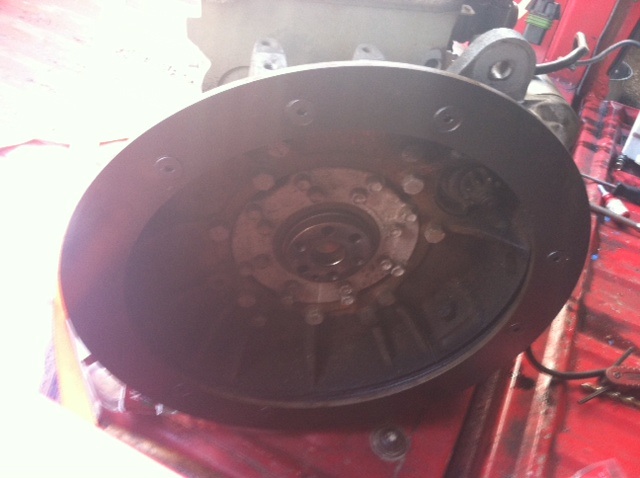

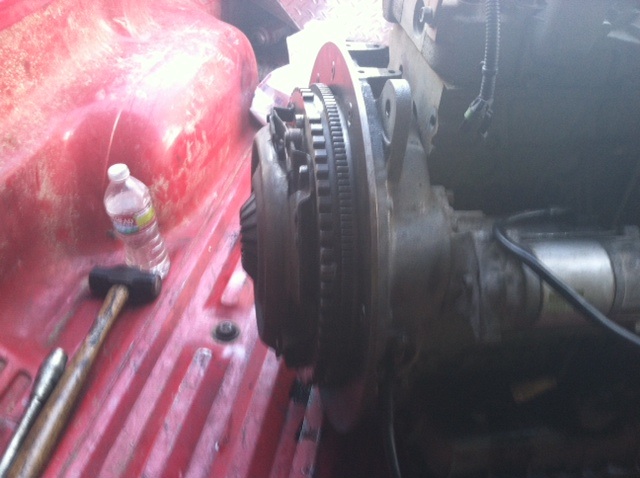

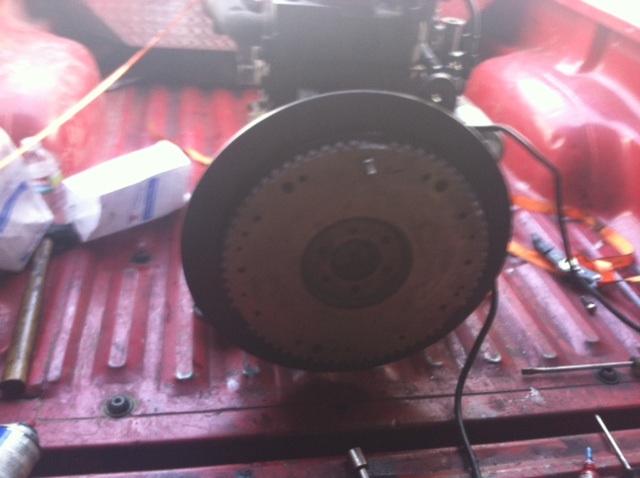

The engine is a 2005 kubota v2203 di with only 800 hrs. I made some progress on the trans adapter yesterday Name:  photobucket-37277-1363403340428_zps6ee375ba.jpg
Views: 476
Size:  52.1 KB
Name:  photobucket-20144-1363403414087_zpsca332fb4.jpg
Views: 470
Size:  35.9 KB
Name:  image_zps5f72f3f6.jpg
Views: 542
Size:  129.7 KB
Name:  image_zps6d6014c3.jpg
Views: 502
Size:  125.9 KBName:  image_zpsf0b82ec7.jpg
Views: 664
Size:  113.5 KBName:  image_zpsd9dd7b8b.jpg
Views: 533
Size:  140.8 KBName:  image_zps6e856a39.jpg
Views: 463
Size:  69.9 KB
Name:  image_zps7e291f29.jpg
Views: 465
Size:  72.1 KBName:  image_zps044565ed.jpg
Views: 462
Size:  80.9 KB
Name:  image_zps95593ff9.jpg
Views: 470
Size:  85.8 KB
Name:  image_zps72f5cd94.jpg
Views: 462
Size:  86.6 KB
Name:  image_zps4ba86aaa.jpg
Views: 456
Size:  108.7 KB

  #3
Old 03-31-2013, 09:36 AM
Diesel Enthusiast
Join Date: Jun 2011
Location: Nashville TN
Posts: 271
Likes: 0
Received 15 Likes on 15 Posts
Default

That looks good, what's it made out of 1/4 steel? Nice clean tight look.

  #4
Old 03-31-2013, 11:37 AM
Diesel Enthusiast
Thread Starter
Join Date: Mar 2013
Location: Monroe wa
Posts: 178
Received 34 Likes on 31 Posts
Default

Thanks the trans adaptor is 1/4 and the flywheel adaptor is 1/2. What turbo are you running. I think fte had said something about a Saab turbo. I have a few turbos at the house. I was planning an using the kkk k03 from a 1999 passat 1.8t. Any thoughts

  #5
Old 03-31-2013, 07:47 PM
wyoranch's Avatar
Diesel Wrench
Join Date: Mar 2007
Location: Stockdale, Tx.
Posts: 551
Received 10 Likes on 6 Posts
Default

From what I understand a VW Turbo will work awesome. I originally bought one but it was variable geometry and from my research I couldn't find a good way to operate it on a mechanical injection motor. So as long as its not variable geometry you should be ok

  #6
Old 03-31-2013, 08:52 PM
Diesel Enthusiast
Thread Starter
Join Date: Mar 2013
Location: Monroe wa
Posts: 178
Received 34 Likes on 31 Posts
Default

I have a teo4h mits turbo on my ranger and I found a vnt25 that I was planning on ordering its all mechanically controlled. Incase you wanted a variable geometry turbo. I'm just curious what everyone else was running and the boost and egt they were seeing


Last edited by Rangmar; 03-31-2013 at 09:03 PM. Reason: Typo
  #7
Old 04-01-2013, 12:29 PM
Diesel Fan
Join Date: Dec 2011
Location: Memphis, TN
Posts: 30
Likes: 0
Received 1 Like on 1 Post
Default

FWIW, I'm running a GT1544 Garrett turbo. It was fitted to a 2.0L turbodiesel in Europe. I cannot recall the exact fitment. I got it at a really good price off eBay. The turbo calculator on Garrett's site recommended this turbo for my application (HP, diesel, rpm range), and also recommended the GT12 series. I grabbed the GT1544 because it is only oil cooled, whereas the GT12 is oil and water cooled.

EGT max is around 1000 degrees. This is with peak boost of 15 psi. Typical EGTs are around 500-700, but what has thrown me off is the fact the EGTs do not fall off much once I am off the boost. I think perhaps the EGT sensor is not fully in the exhaust stream.

Boost builds immediately with this turbo. If I had to do it over again, I might actually go with a larger turbo, but I have no real reason to suggest that is the way to go.

Jurgen

  #8
Old 04-01-2013, 06:32 PM
wyoranch's Avatar
Diesel Wrench
Join Date: Mar 2007
Location: Stockdale, Tx.
Posts: 551
Received 10 Likes on 6 Posts
Default

I'm using an ihi rhf4 off a cat skid steer. Website says its good for 130hp on a diesel. Mine whines good but doesn't build much boost until higher rpm, will get 1300 degrees if I push it hard enough. I have a small exhaust leak between my manifold and Turbo so I think that's why I have higher egts and why it takes awhile to build boost. I think it'll be perfect when I get that fixed. As it is, if I'm going 65 or so it usually runs 800 degrees or so.

  #9
Old 04-01-2013, 08:18 PM
Diesel Enthusiast
Thread Starter
Join Date: Mar 2013
Location: Monroe wa
Posts: 178
Received 34 Likes on 31 Posts
Default

Thanks for the advice I really appreciate it. My ranger builds boost quick right off the line 5 psi almost instantly but you realy have to winde it up to see 10-12 psi. Egts are 500-600 driving and 850-950 wot on a hard pull it won't climb past 950 now was 1025 max before the inter cooler its a teo4h I think it's a little big but it works for now

---AutoMerged DoublePost---

Some updatesName:  image_zps0a026774.jpg
Views: 476
Size:  127.8 KB
Name:  image_zpsbbb6902c.jpg
Views: 530
Size:  134.0 KB
[IMG][/IMG]
Name:  image_zps5377facc.jpg
Views: 484
Size:  127.5 KBName:  image_zps8d6ff9d7.jpg
Views: 466
Size:  109.1 KB:


Last edited by Rangmar; 04-01-2013 at 08:18 PM. Reason: Automerged Doublepost
  #10
Old 04-01-2013, 08:55 PM
Newbie
Join Date: Feb 2013
Location: Alexandria, MN
Posts: 2
Likes: 0
Received 0 Likes on 0 Posts
Default

I've been a member on here for just a couple months. This is actually my first post too... I've been waiting for this exact combination to happen as I'm totally into Jeeps. Definitely watching this one! Thanks for the play-by-play with the pictures!
