Default MY AIRDOG II!!!
That right ladies and gents that nice man in the brown truck has made my day along with Charlie From PureFlow Technologies and Chad and everyone from DieselBombers! Let me tell you what people this pumps is a work of ART! The pictures I took don't do this thing justice, I'm gonna hate to hide it under my truck. This is so awesome, I can't wait to get my truck below a 1/4 tank now so I can tear into it.

Its a good day....
Name: 047-1.jpg Views: 137 Size: 80.6 KB

Name: 048-1.jpg Views: 125 Size: 89.4 KB

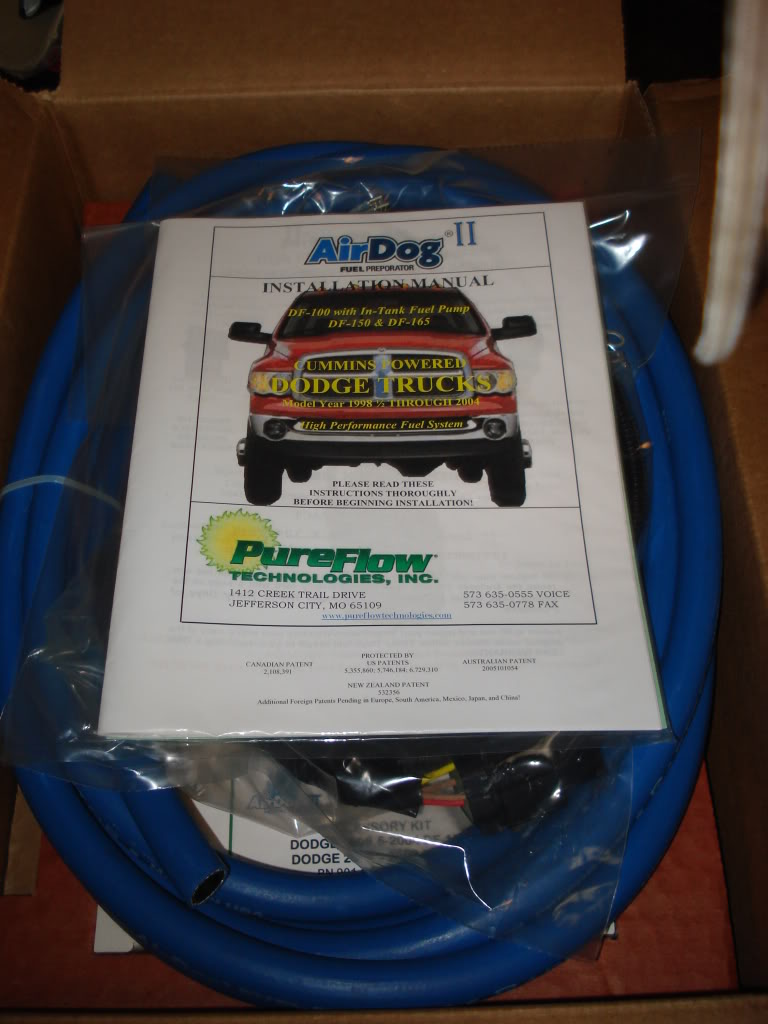

Nicely packaged..
Name: 061-1.jpg Views: 107 Size: 92.2 KB

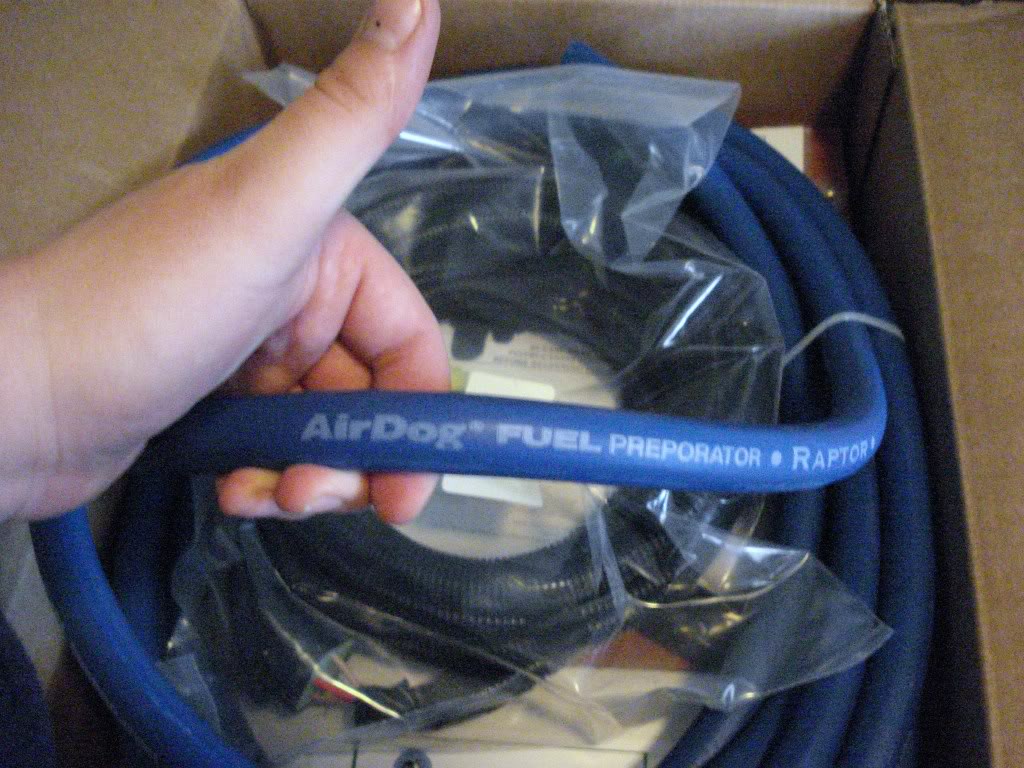

Charlies new customized 1/2" fuel line...

Name: 049-1.jpg Views: 138 Size: 156.1 KB

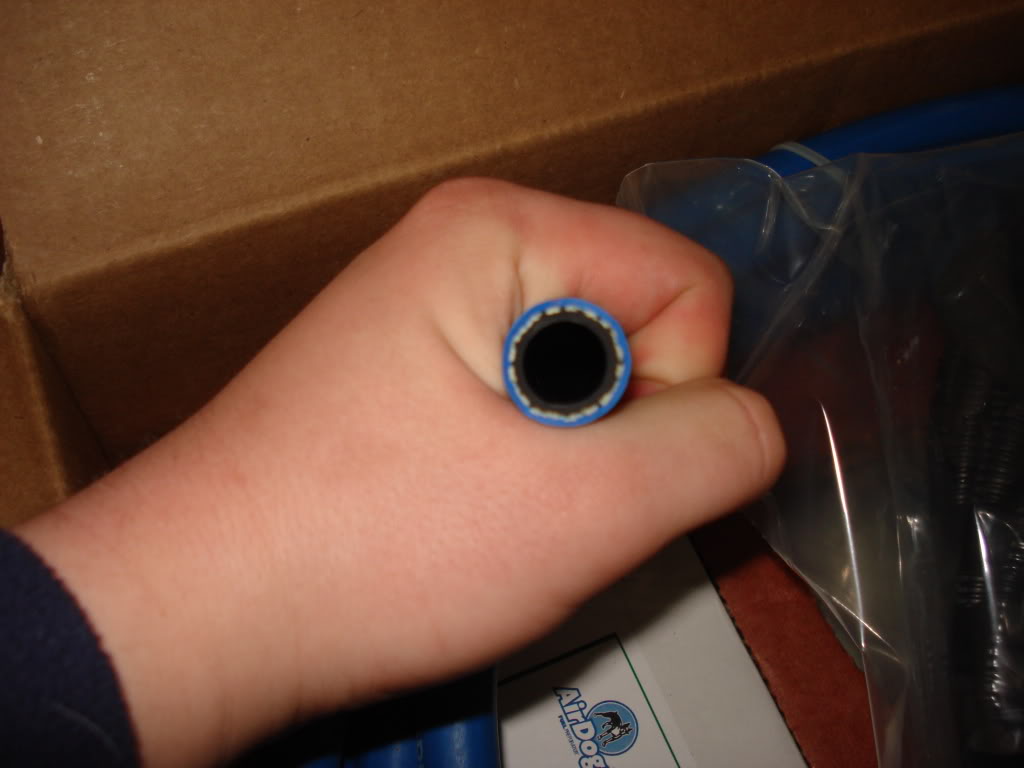

This stuff it huge!
Name: 063-1.jpg Views: 102 Size: 56.4 KB

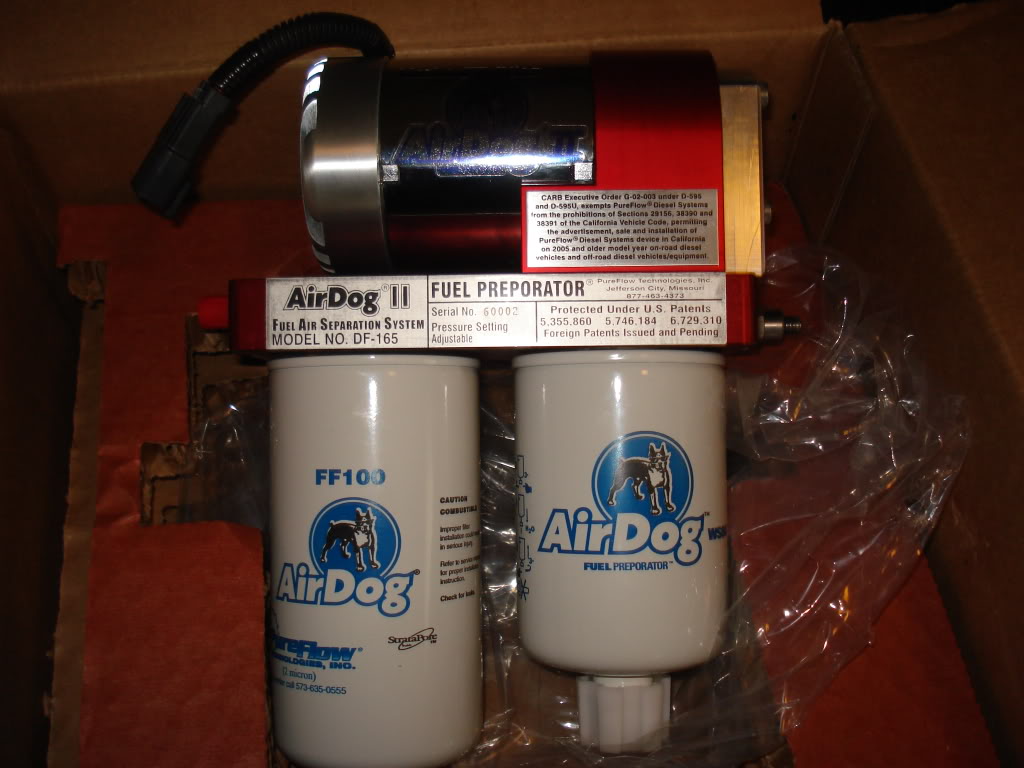

Beautiful...
Name: 050-1.jpg Views: 109 Size: 97.1 KB

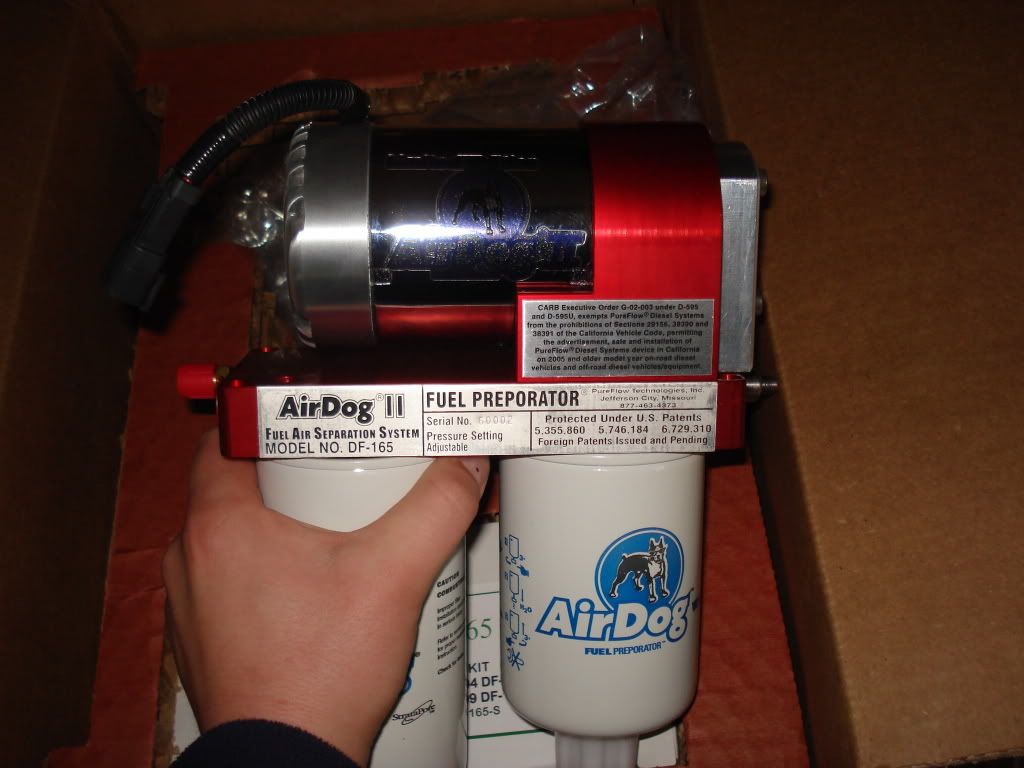

For the flow this thing will put out, it is very compact, I love it!
Name: 053-1.jpg Views: 115 Size: 89.6 KB

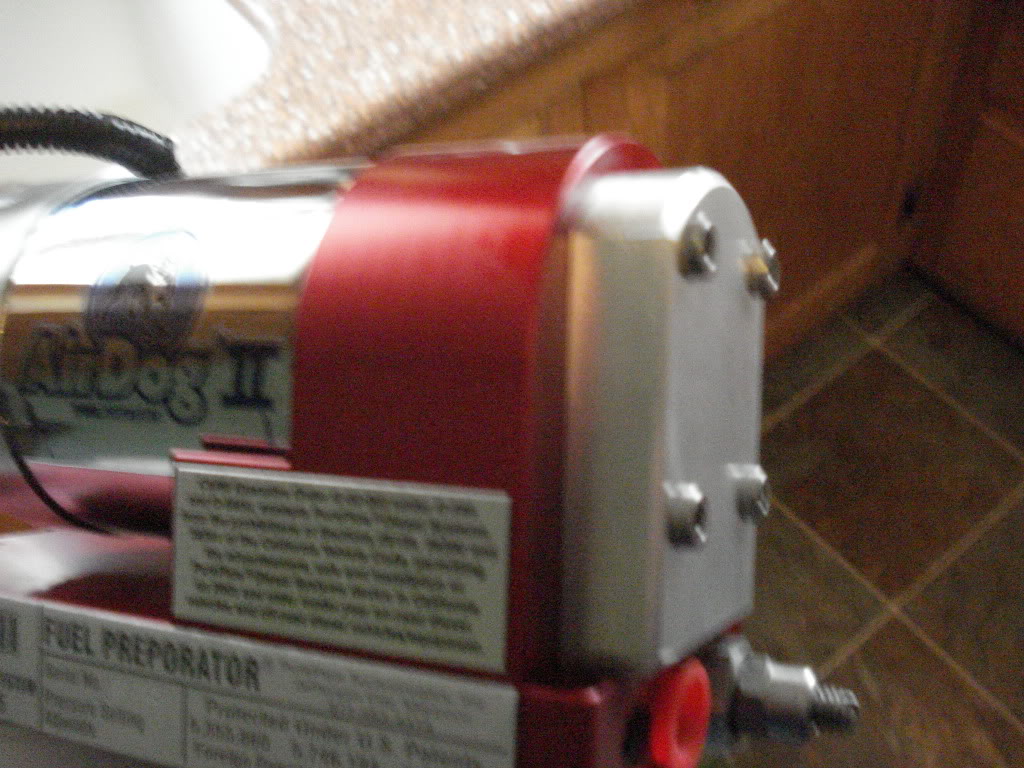

New modded cap for better flow and even quieter operation.
Name: 056-1.jpg Views: 98 Size: 150.9 KB

Last edited by Red_Rattler; 03-24-2009 at 08:28 PM.
Reply Like
  #2
Old 03-24-2009, 03:16 PM
Cummins97's Avatar
Diesel Bomber
Join Date: Nov 2008
Location: Missouri
Posts: 1,232
Received 43 Likes on 37 Posts
Default
Nice! :upup:

Reply Like
  #3
Old 03-24-2009, 03:17 PM
Whit's Avatar
Site Mascot
Join Date: Mar 2007
Location: Why-homing
Posts: 16,010
Received 940 Likes on 701 Posts
Default
cool deal Red..................keep us posted on the install eh

Reply Like
  #4
Old 03-24-2009, 03:18 PM
Red_Rattler's Avatar
High Tech Redneck

Thread Starter
Join Date: Nov 2007
Location: Columbus WI
Posts: 6,730
Received 496 Likes on 397 Posts
Default

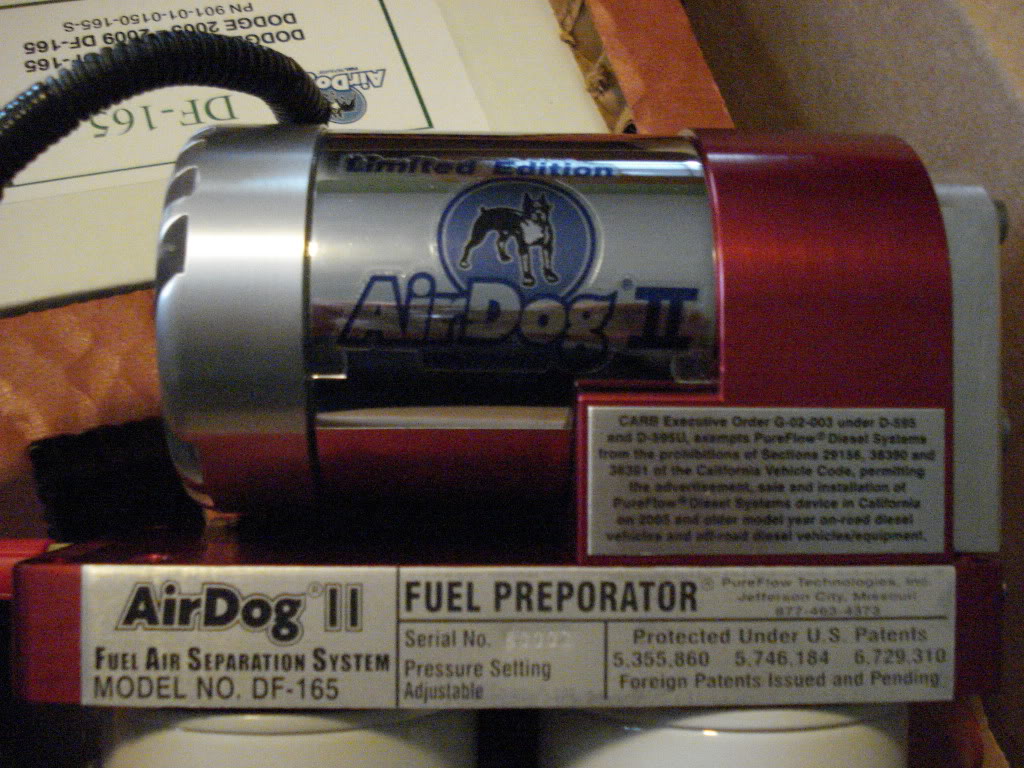

Mmmmmmm chrome...
Name: 055-1.jpg Views: 97 Size: 160.0 KB

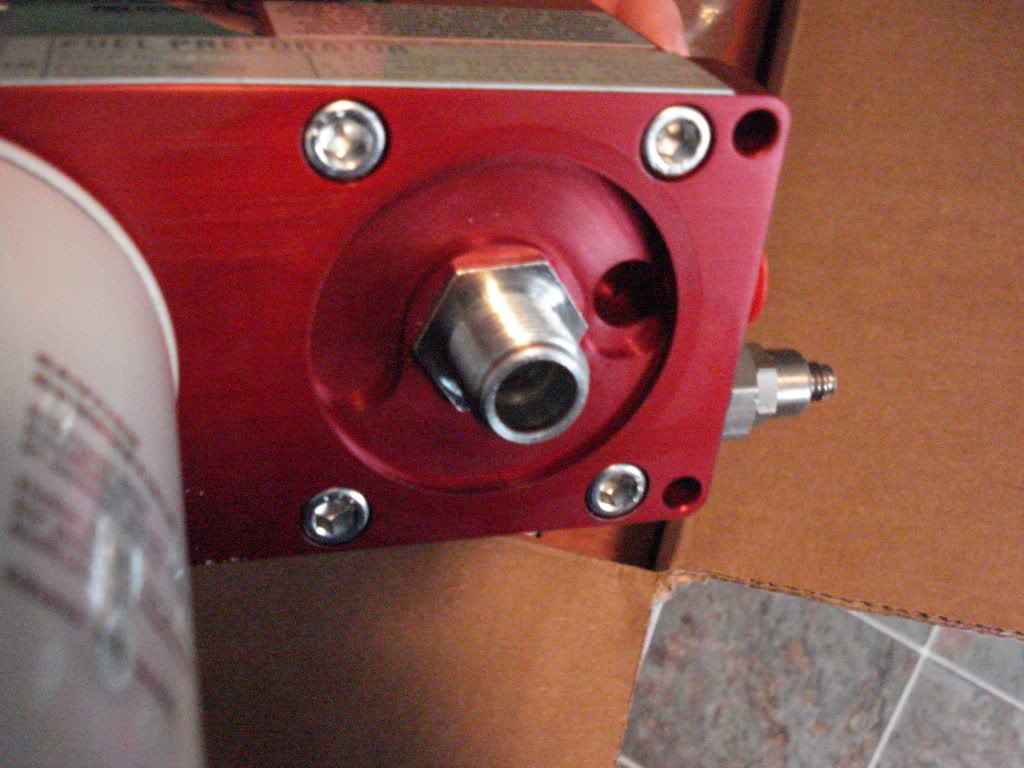

Nice quality piece. Fuel water sep. side..
Name: 057-1.jpg Views: 99 Size: 152.9 KB

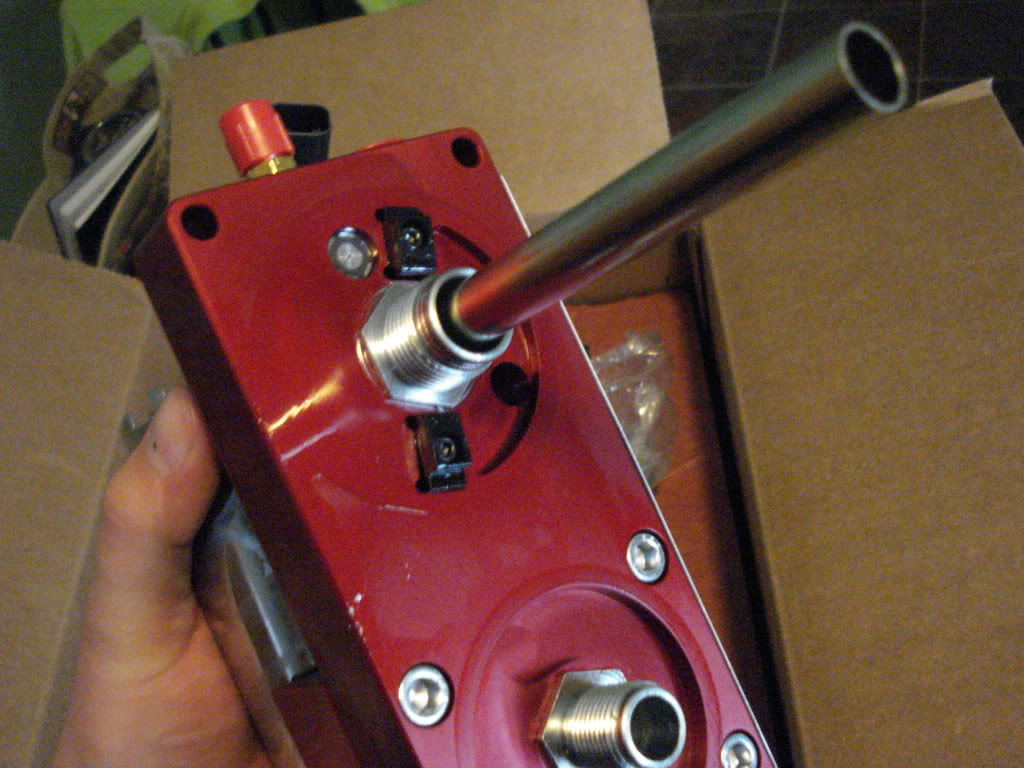

Fuel filter side...
Name: 058-2.jpg Views: 141 Size: 158.8 KB

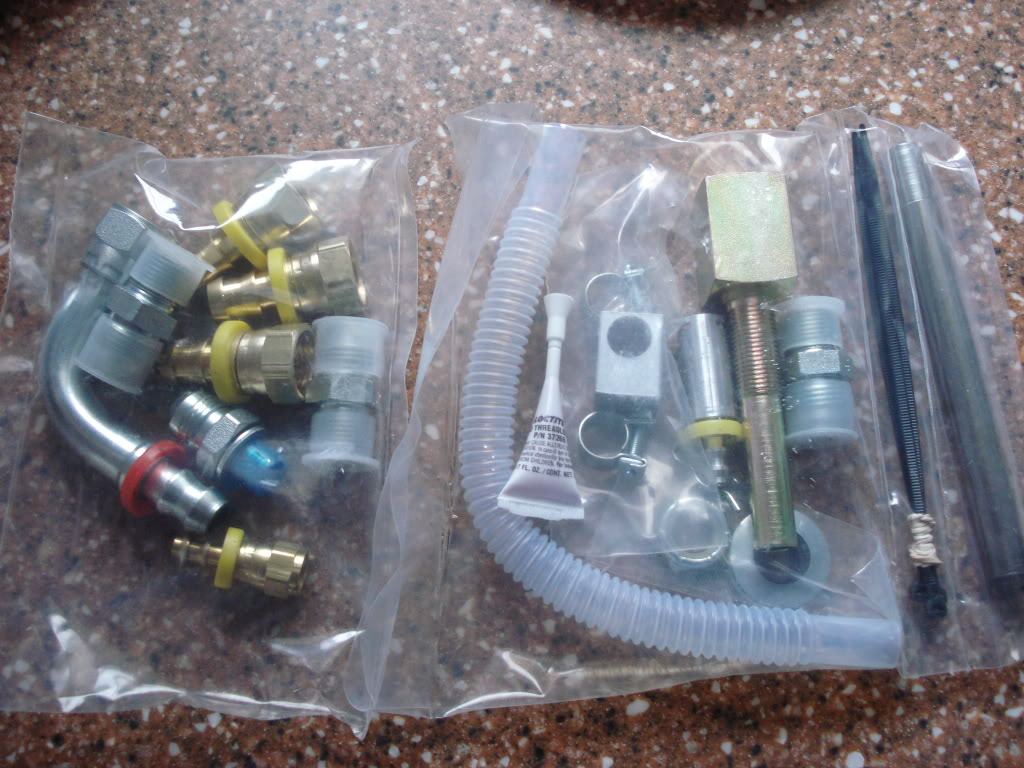

More bits and pieces...

Name: 060-2.jpg Views: 139 Size: 139.6 KB

I'm happier than a fat kid with cake


Reply Like
  #5
Old 03-24-2009, 03:38 PM
Red_Rattler's Avatar
High Tech Redneck

Thread Starter
Join Date: Nov 2007
Location: Columbus WI
Posts: 6,730
Received 496 Likes on 397 Posts
Default
I just have to find a way I can bypass my original filter housing since I have a JakeBrake with the vacume pump mounted right above my cp3. Soooo I cant use that nice fancey HUGE 90 degree fitting.... Just another downfall to having a brake. Anyone know where or if they make a Banjo bolt oem style that will accept 1/2 inch line? Otherwise I have to retain the filter housing and then come back outa that with a 3/8" line. Crap now that I think about this I never got the adaptor for the stock filter housing because this kit is for the intank conversion which mine has never had I'll have to call Charlie to double check...

Last edited by Red_Rattler; 03-24-2009 at 04:17 PM.
Reply Like
  #6
Old 03-24-2009, 03:52 PM
Whit's Avatar
Site Mascot
Join Date: Mar 2007
Location: Why-homing
Posts: 16,010
Received 940 Likes on 701 Posts
Default
you have the fitting in the kit to mount right to the CP3...............the Airdog has its own filter so the OEM filter housing in not needed at all

Reply Like
  #7
Old 03-24-2009, 04:14 PM
Red_Rattler's Avatar
High Tech Redneck

Thread Starter
Join Date: Nov 2007
Location: Columbus WI
Posts: 6,730
Received 496 Likes on 397 Posts
Default
Right I know Whit but since the vacumme pump for the Jakebrake is right above the cp3 I have to use a banjo style fitting. Theres only like 5/8 inch between the pump fitting and the vacumme pump.

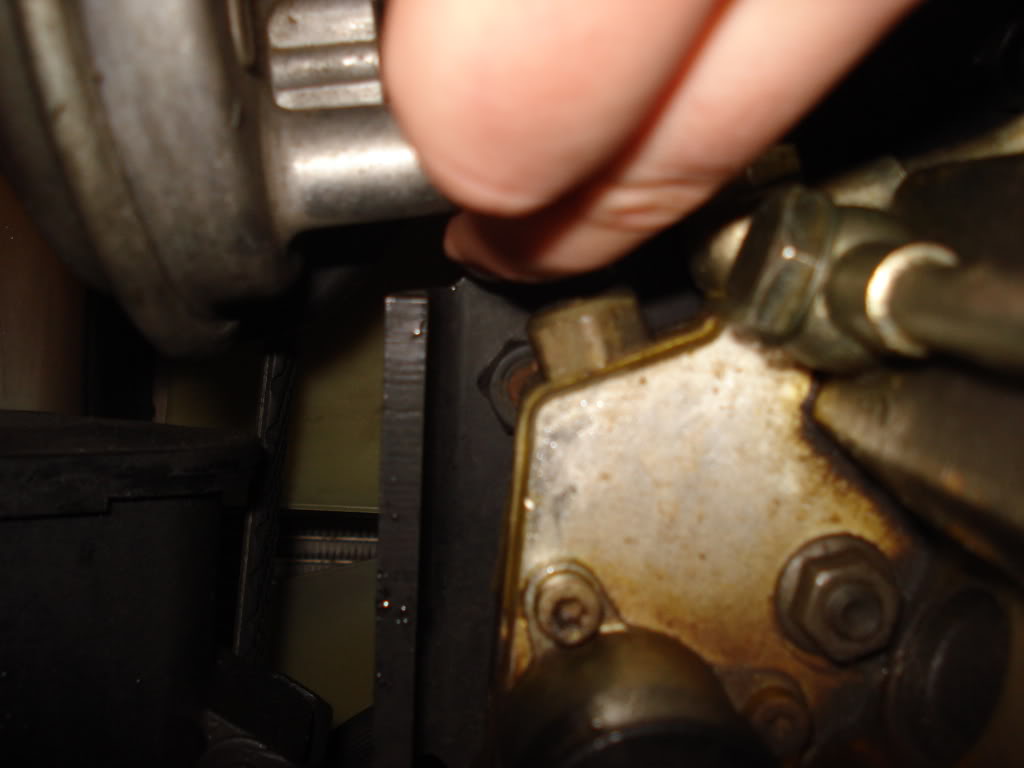

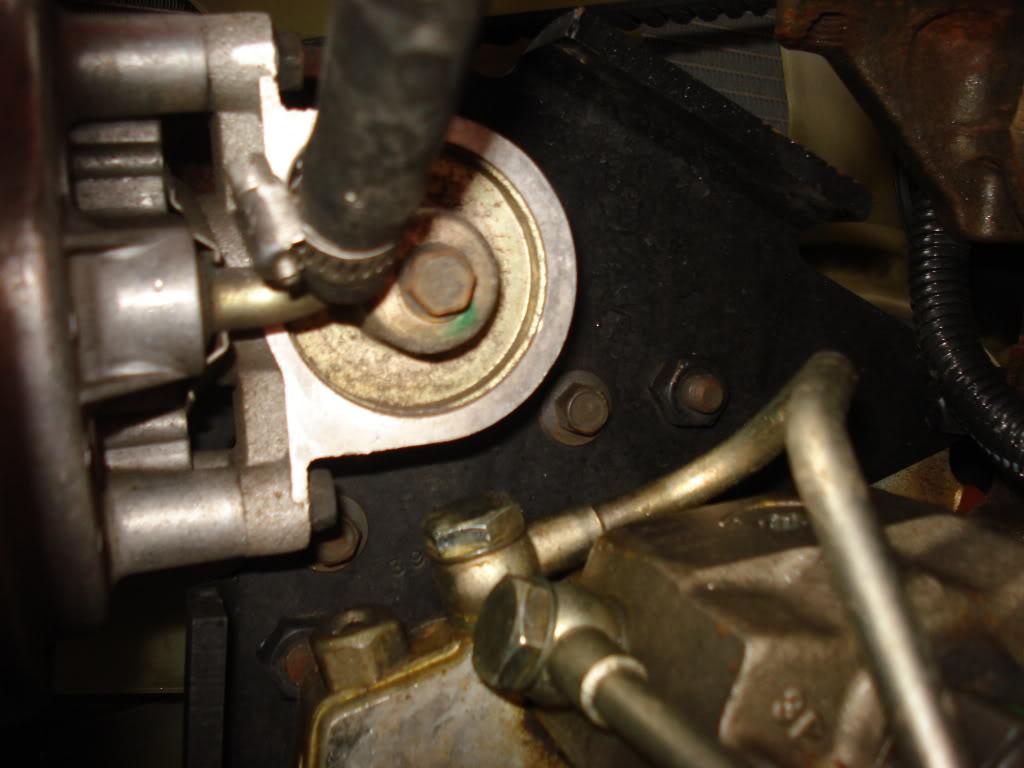

Heres my problem.....

Name: 064-1.jpg Views: 124 Size: 77.8 KB
Name: 065-1.jpg Views: 96 Size: 54.3 KB

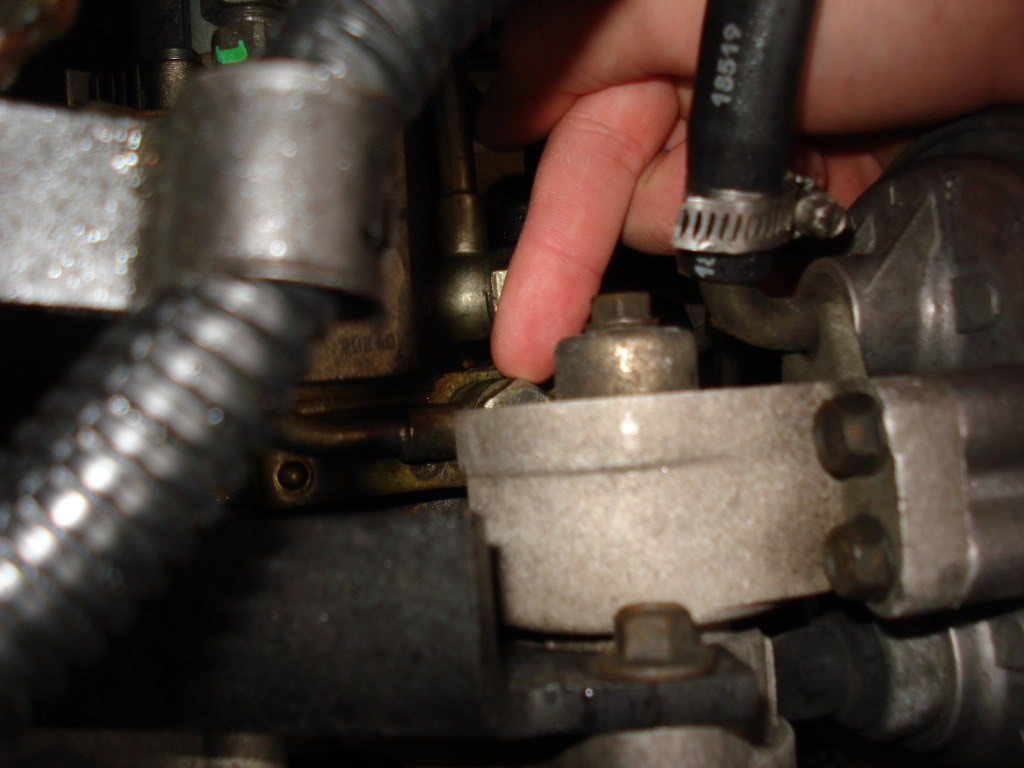

Top view....
Name: 066-1.jpg Views: 100 Size: 64.9 KB

Reply Like
  #8
Old 03-24-2009, 04:20 PM
Whit's Avatar
Site Mascot
Join Date: Mar 2007
Location: Why-homing
Posts: 16,010
Received 940 Likes on 701 Posts
Default
OH OK..........I think Vulkan may sell sompin like that

Reply Like
  #9
Old 03-24-2009, 04:44 PM
Red_Rattler's Avatar
High Tech Redneck

Thread Starter
Join Date: Nov 2007
Location: Columbus WI
Posts: 6,730
Received 496 Likes on 397 Posts
Default
Glacier Diesel sells a kit for JakeBrake trucks, but its 3/8 and I have to use the stock canister... If I find a 1/2 banjo fitting I should be set.... Bah I dunno what to do

Jake Brake Kit 3/8

Last edited by Red_Rattler; 03-24-2009 at 04:48 PM.
Reply Like
  #10
Old 03-24-2009, 05:02 PM
stkdram55's Avatar
BOMBARDIER
Join Date: May 2008
Location: New Holland Ohio
Posts: 6,548
Received 279 Likes on 256 Posts
Default
its about time ya got that thing, what's it been since december when ya won that thing
