No I didn't get stuck!!!

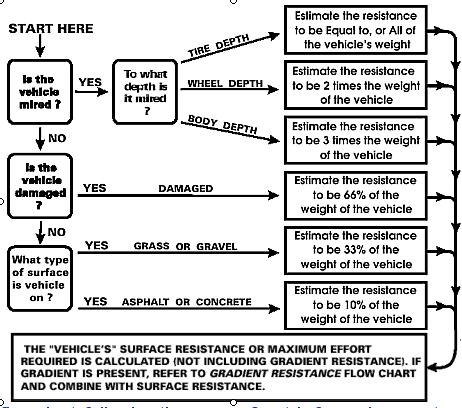

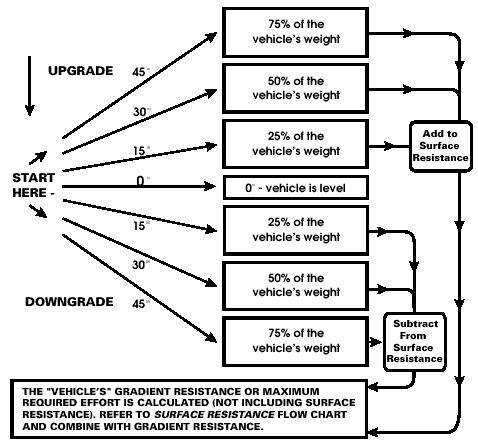

This is a chart I have had for a long time, It is a VERY good reference fro how much pulling power you need to pull out a stuck truck. It will also show you how easy it is to blow right by the rated working limits of alot of your recovery gear.

RSWORDS's Sig:

DIESEL BOMBERS SUPER MODERATOR

CLICK HERE FOR SPONSORSHIP INFORMATION
CLICK HERE TO BECOME A PREMIUM MEMBER AKA BOMBARDIER
___________________________________________

Thats awesome information!! Thanks!

tdiezel's Sig:

04.5 Dodge Ram 2500 QCSB 6spd
FASS HPLP 150gph
Volant Cold Air Intake
6" Pro Comp Coil-over Suspension
17" Eagle alloys
35" Cooper S/T Tires
Industrial Injection CP3 85% over stock
5" TB Straight Pipe Exhaust
Line-X Bed Liner

Cummins Member #25

reminds me of work........go to do a task and ya end up with a flow chart..................its good though Bobby

Whit's Sig:

* 01 Cummins/Dodge/HO/6 speed*275 injectors*PDR 35 turbo w/14cm housing & high pressure boots*HTT 3 piece ported exhaust manifold*Progaurd 7 with prefilter*Edge Comp*Fass II*Southbend con OFE*Jacobs brake*5"Stacks Big ens*E/F shift knob w/2low & brake switch*10 Gages*KW Ram air System cab controlled*Rickson 19.5x265's*True speed calibrator*Rancho 9000's*DT track bar*DSS steering stabilizer*KW Side impact rails*KW Traction Bars*Toolbox/fueltank 60 gal Combo*Mag High Tech Diff Cover*Ranchand bumpers*Grover air horns*Rear Wheel Cylinder Upgrade DYNO 375 Horse 941 Torque

“Life is not about waiting on the storms to pass…it’s about learning how to dance in the rain.”

what ever happen to hooking up the chains and giving it hell

Woody35's Sig:

1997 Chevy K1500 4X4 EC/SB L56 6.5 Liter Turbodiesel
2100 PSI Pop Pressure Bosch Injectors, Bosch Duratherm Glowplugs, Relocated PMD,
Steel Braided Oil Cooler Lines,Custom Steel Vaccum Lines,Tekonsha Voyager Brake Controller
ARP Headstuds, .010 Thicker Gasket , 265/75R/16 UniRoyal Liberators A/T

i just usually think 2nd or 3rd gear??

stkdram55's Sig:

Just an Inline 6 Cylinder

Only 2 defining forces have ever offered to die for you.....Jesus Christ and the American Soldier..
One died for your soul, the other for your freedom.

thats how i do it woody

---AutoMerged DoublePost---

try the fun way first and if that dont work then go to the techncil stuff

12.valve.hauler's Sig:

97 ctd 4x4,230,000,215hp pump,no plate, star wheel ff, silencer ring disposed of, open turbo,courser mt's, 5 inch mitre cut stack(stuck up under the bed)

After you buy a few tailgates and windshield you will switch to using a heavy ass strap and giving it hell!

I usually do that 1st.

This is more to help in choising a winch for your truck.

Chains work great if there is consistant static force... but that really never happens.

Exactly

I was always told a good rule of thumb for choosing a winch is it should be rated for at least 1.5 times the weight of the truck it's attached to, I.E. an 8000 lb diesel truck should have a minimum 12,000 LB winch.

If a straight line pull won't do it, simply use a snatch block at the anchor point and bring the winch hook back to the winch vehicle. The pulling speed will be cut in half but the pulling power will be doubled!

As Bobby said, you can see pretty quickly how easy it is to overload your recovery gear. With the use of a snatch block, several tree savers, or whatever you use for your anchor point, may need to be used.
