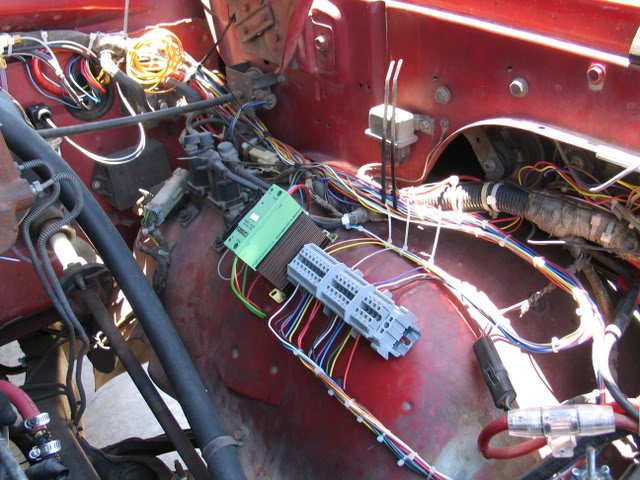

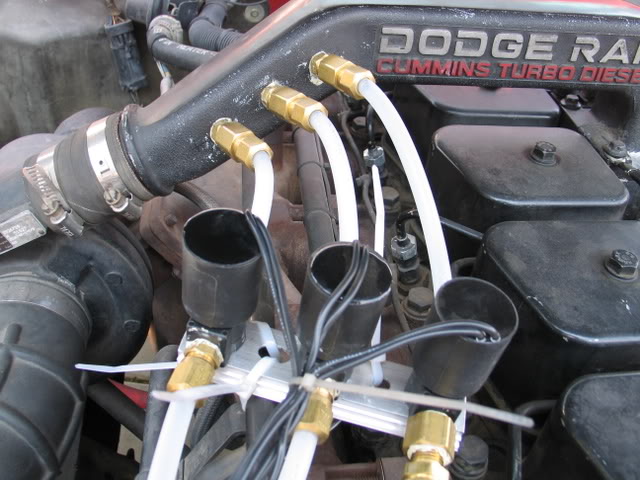

Computer programmable 7-stage boost/ EGT/ RPM-referenced water/ methanol fumigation.

Work in progress.

1stGen.org :: View topic - Begle's Water Injection

Begle1's Sig:

A custom-made electro-digital-hydraulic water injection system with a 1990 D-250 wrapped around it that on a good day might break 15 seconds in the quarter.

WOW thats pretty innovated !

DieselMinded's Sig:

DIESEL BOMBERS OWNER & FOUNDER
CLICK HERE TO SHOW YOUR SUPPORT

TRUCKpullers.com - Your Truck Pulling Resource

______________________________________

Then it comes to be that the soothing light at the end of your tunnel, was just a freight train coming your way...

do you have a picture of the water coming out of the nozzle? i'd be interested in seeing the spray pattern.

Benjamin's Sig:

Diesel Bombers | Bombers Brand | Diesel Bookmarks | Top Diesel Sites | The Diesel Classifieds

Click Here To Link To Us !

REMEMBER SOME PEOPLE ARE ALIVE SIMPLY BECAUSE IT IS ILLEGAL TO SHOOT THEM.

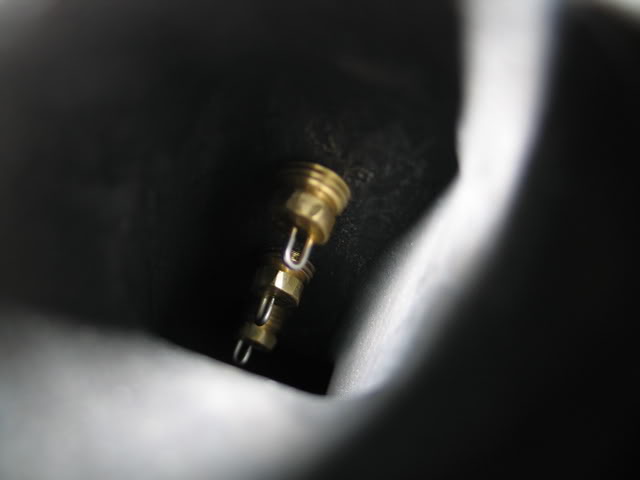

It's a well atomized cone, around 130 degrees. I wasn't able to take any pictures with my test rig, and it's too much of a pain to pull the nozzles out and build a new one...

what is the flow rates per nozzle and where did you get them. i've never seen that style...

1stGen.org :: View topic - Fogger water-meth nozzles

6.6, 12.6 and 26.4 GPH at 100 PSI. I seem to be actually getting quite a bit lower. I need to put a pressure gauge on my water pump to see what it's actually putting out at 40 GPH; I suspect that it's dropping a bit low.

remember that whatever boost pressure you are running needs to be subtracted from the pump pressure. so if the pump is putting out 100psi and you are boosting 35psi then you are only getting roughly 65psi though the nozzle..... now what a few guys with gassers that i know do is make sure the water resivoir is completely sealed and put a boost reference on the water tank. therefore it'll negate the boost affect in the intake.... you'll have 35 psi blowin into the 100psi pump..... do you see what i'm tryin to say? it sounds better in my head than it does in type.....

Yeah, I got that part.

I still need to get a pressure reading on one of the water lines.

ya you do have a ton of volume there.....

Thats a nice setup Is this for power and EGTs while towing or just more power?

dozerboy's Sig:

These views expressed on this post are not my own, but rather randomly generated computer gibberish and in no way should be used to judge the author's IQ or mental health.

for someone who doesnt act all that smart in chat thats really.......over my head

CumminsCrazed's Sig:

Any questions about my truck just ask!!

Blowin Smoke Gang - Member #13

Thank you Diesel Dummy and MRaynor!!!

For somebody who acts dumb in chat, I'm not really that surprised.

OWNED !

Here's a picture I took just for you Ben.



One nozzle:
http://i159.photobucket.com/albums/t...rGation046.jpg

Two nozzle:
http://i159.photobucket.com/albums/t...rGation048.jpg

Three nozzle:
http://i159.photobucket.com/albums/t...rGation049.jpg

They only flowed 34 GPH. I think I need another Shurflo.

cool deal.... have you used it yet? how well does it work?
