Default 6.0poerstroke 2003 wont start (Fuse22)

Hello
My name is Kristján Hagalín and I come from Iceland.
I have a problem with my 2003 F250 6.0powerstroke.
I was driving on a gravel road when he died, and did not start.
I disconnected the Edge Juice chip and replaced fuse 22 , it exploded when he died.

I start up again. and everything was fine until the next day. Then fuse 22 blew again and the car has not start up again. .

I have to disconnect the fan clutch, fuel heater in the frame, EBP sensor and air flow sensor.

What could be the problem?

Extras in the car are, webbasto Heater and I have changed the A / C pump in to air pump.

Sorry about my spelling

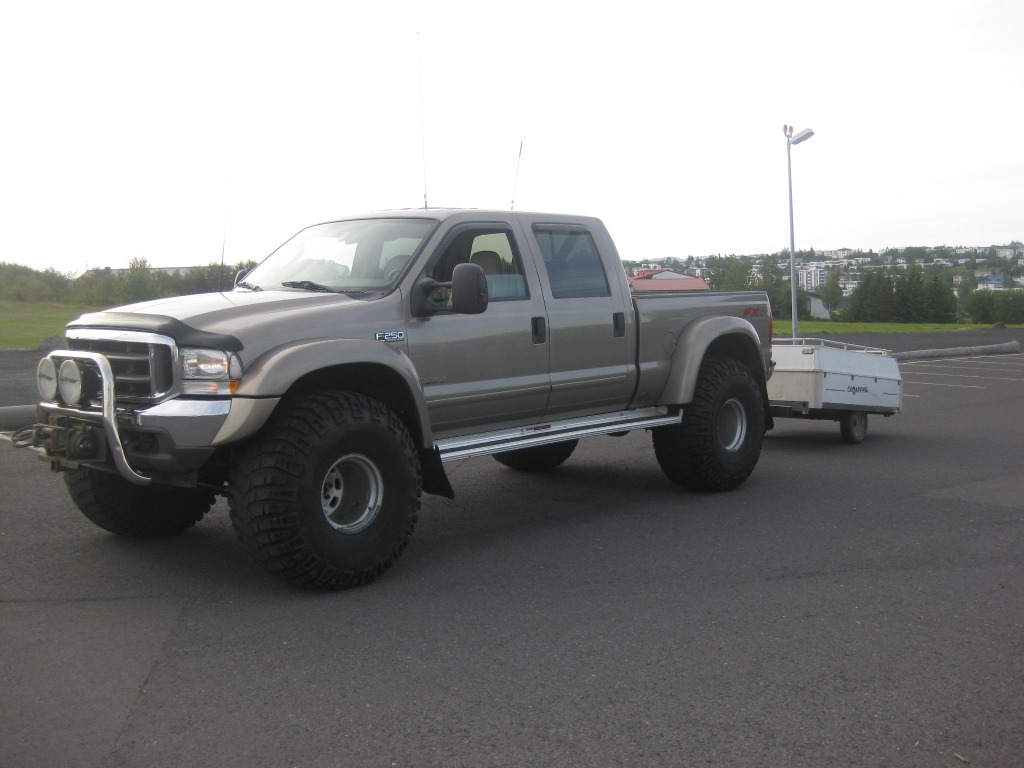

Click the image to open in full size.
Reply With Quote
  #2
Old 07-20-2012, 07:05 AM
1999stroker's Avatar
Diesel Bomber
Status: Working n' wrenching



Default

Damn Wats up with big tires? Nice truck.welcome

Sent from my dumb phone!

1999stroker's Sig:2004 dodge cummins qcsb,4x4,laramie,4inch exhaust,stock
Reply With Quote
  #3
Old 07-20-2012, 08:30 AM
1964Horseman's Avatar
Diesel Fan
Status: Tryin' to learn something new every day!


View Member's Albums

Default

check the wiring going to and from the fan clutch. have seen several issues where the fan gets into the wiring or a wire is chaffed bad (rubbed raw).
I think that there was also a recall on that 03 harness. It might have just been a TSB. can't quite remember.
also, my 03 does have a problem with the pigtail that goes to the IPR. check that too.
Bad connections generate heat. heat causes blown fuses more often than faulty equipment.

1964Horseman's Sig:IF it's paid for, it's a toy! Don't TOY with someone elses truck!
2003 F-250 SD 6.0 CREW KING RANCH. ARP Studs, EGR Delete, MBRP 4" Exhaust (Cat delete), Blue sping upgrade, 6.4 Banjos. (More to come!)
Reply With Quote
  #4
Old 07-20-2012, 09:41 AM
Mdub707's Avatar
BOMBARDIER
Status: 6.0 powerstroke masochist



Default

Hagalin, welcome to DB. Sweet looking rig you have there. (1999 stroker, they drive these things on ice and all sorts of deep snow, they need the big tires for float).

Is there any chance you have access to a scanner? Can you try reading the trouble codes with your Edge?

Anyone here with an 03 that can tell me what the heck fuse 22 is?

Mdub707's Sig:

Reply With Quote
  #5
Old 07-20-2012, 12:35 PM
Diesel Fan


View Member's Albums

Default

Originally Posted by Mdub707 View Post
Hagalin, welcome to DB. Sweet looking rig you have there. (1999 stroker, they drive these things on ice and all sorts of deep snow, they need the big tires for float).

Is there any chance you have access to a scanner? Can you try reading the trouble codes with your Edge?

Anyone here with an 03 that can tell me what the heck fuse 22 is?
My Edge is one of the first and dont have attitude possible to it.
I am waiting for my friend to read codes so I am not to worried YET

Fuse 22 is Engine Control.....
Reply With Quote
  #6
Old 07-21-2012, 01:08 AM
Diesel Enthusiast


View Member's FaceBook Profile

Default

Welcome to DB... Nice truck. Dang those tires sure make a crew cab look like a toyota! hahaha

What size tires?

ntmdtr3fan's Sig:2007 F350 Crewed LB 6.0 4 inch turbo back, 80k miles. sinister coolant filter.

Last edited by ntmdtr3fan; 07-21-2012 at 01:16 AM..
Reply With Quote
  #7
Old 07-23-2012, 08:54 AM
Diesel Fan


View Member's Albums

Default

Can I use my friends SCT computer to read my truck?
Reply With Quote
  #8
Old 07-23-2012, 08:56 AM
Mdub707's Avatar
BOMBARDIER
Status: 6.0 powerstroke masochist



Default

Yes, you can. If you can get codes that will help tremendously.

After you get this figured out, we would sure like some details and some more pics of that beast!
Reply With Quote
  #9
Old 07-28-2012, 04:45 AM
Diesel Fan


View Member's Albums

Default

Well, I went to the car yesterday with code reader.
And of course I could not read the computer because there is no power in it because it always explodes fuse numbers 22.
I took all three connectors from the computer but he blows fuse 22 onwards. Is it the wires from the key to the fuse or the wire from fuse for the computer that is causing this problem?
Can also be a speedometer converter that could cause this problem? He is aftermarket.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Last edited by Hagalín; 07-28-2012 at 04:51 AM..
Reply With Quote
  #10
Old 07-30-2012, 10:13 AM
Mdub707's Avatar
BOMBARDIER
Status: 6.0 powerstroke masochist



Default

Can one of you other goobers with an 03/early 04 truck let me know exactly what fuse 22 is so we can help this guy out?

Thanks for sharing the pictures Hagalin, looks like a blast!

If the code reader isn't coming on to read the codes, the OBD fuse is blown, which is also the cigarette lighter fuse. Have anything crazy plugged into the cigarette lighter port?
