Default looking to relocate om617 oil-filter housing...

Currently In the middle of installing this motor into my fj40 (early toyota landcruiser).

would love to replace the housing completely...with a modern spin-on filter solution.

found a examples online, please see attached.

any other options?

thanks,
manny
Attached Images
File Type: jpg oilplate4.jpg (75.0 KB, 43 views)
File Type: jpg oilplate5.jpg (56.5 KB, 47 views)
Reply With Quote
  #2
Old 11-05-2010, 08:10 PM
ben2go's Avatar
Diesel Fan
Status: INLINE ON INTERWEB



Default

Check superturbodiesel.com - tuning performance turbo diesel mercedes, W123, W116 and up. OM617, OM60X and the Mercedes section of www.4btswaps.com Most people fab their own and use AN fittings, braided SS hose, and a regular remote filter adapter.

ben2go's Sig:1990 Mercury Blue Max Cougar 3.8L Automatic-Upgrading to an OM617 Mercedes Turbo Diesel and Cougar/T-Bird M5R2 or Camaro/Firebird T56
Reply With Quote
  #3
Old 11-05-2010, 09:17 PM
FTE FTE is offline
Diesel Wrench
Status: redneck engineering on an amish budget


View Member's Albums

Default

It is not a good idea to replace the factory oil filter with a "modern spin-on". The benz unit is not only a main and bypass filter but thermostatically controlls the flow through the cooler. This is way better than a single spin-on, if you need to move for clearance then just remote mount the facory unit. What trans are you planning on using in the FJ?

Last edited by FTE; 11-06-2010 at 06:56 PM..
Reply With Quote
  #4
Old 11-07-2010, 08:14 AM
Banned
Status: The All Unknowing



Default

External oil cooler thermostats are available for around $50.

A cooler must be installed though and it needs a thermostat set for over 212*f.
Reply With Quote
  #5
Old 11-07-2010, 10:42 AM
mr_manny's Avatar
Diesel Fan



Default

sounds like the best option if to make an adapter that allows me to relocate the stock housing...

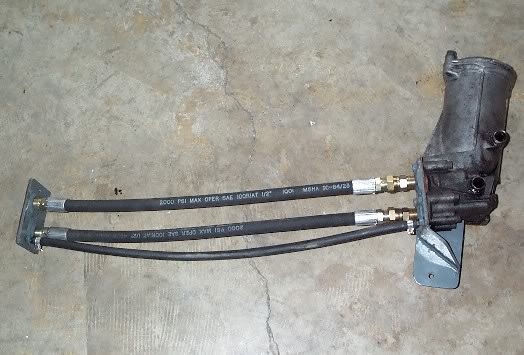

found the following example:

Click the image to open in full size.



FTE,

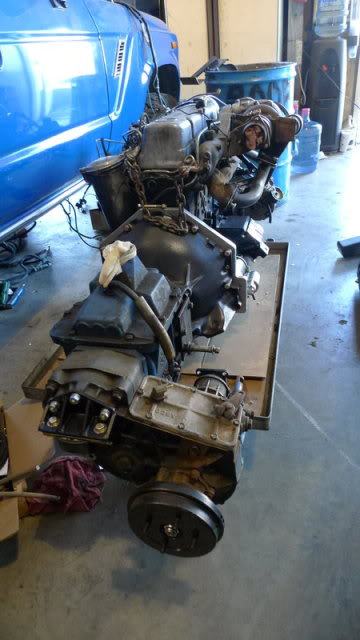

tranny is a sm465:

Click the image to open in full size.

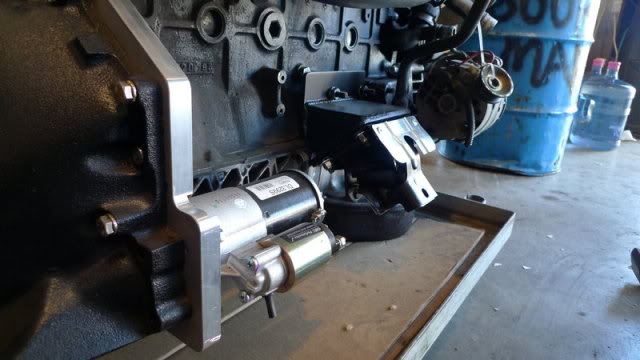

made possible w/Luke's kit (4x4labs.com):

Click the image to open in full size.


thanks for the replies,
manny
Reply With Quote
  #6
Old 11-07-2010, 11:33 AM
FTE FTE is offline
Diesel Wrench
Status: redneck engineering on an amish budget


View Member's Albums

Default

Hey looks great! I see you also have the motor with the cali emissions although yours has already been deleted. I kind of like the turbo mounted up high, and the intake looks like it flows better. I like your FJ! Keep us posted.
Reply With Quote
  #7
Old 11-08-2010, 04:23 AM
Banned
Status: The All Unknowing



Default

Originally Posted by FTE View Post
and the intake looks like it flows better.
Worse actually, the air has to make two hard right turns instead of flowing straight in.
Reply With Quote
  #8
Old 11-08-2010, 08:36 PM
mr_manny's Avatar
Diesel Fan



Default

Regardless of number of turns, I'll bet you guys will be able to see the grin on my face...the day I drive her home

as always, thanks for the info.
Reply With Quote
  #9
Old 12-24-2010, 01:15 PM
mr_manny's Avatar
Diesel Fan



Default

With the help from a few friends, I know have an adapter made from 5/8" aluminum...really happy with how it turned out

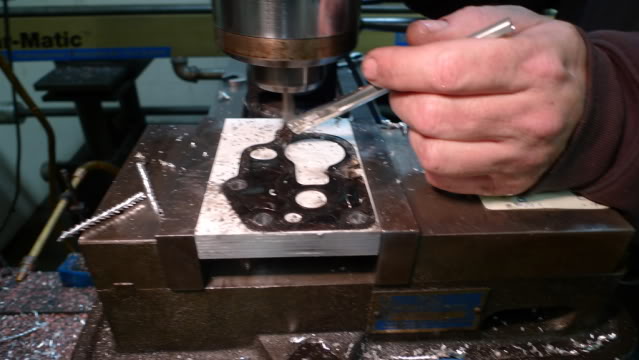

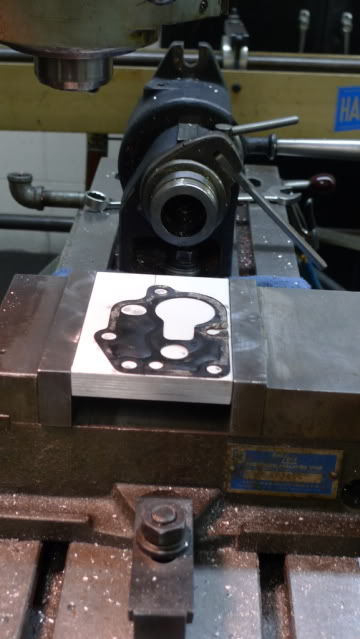

Used a gasket, as a template:

Click the image to open in full size.


Click the image to open in full size.

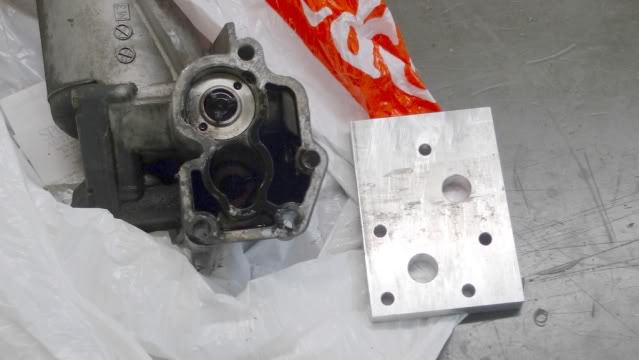

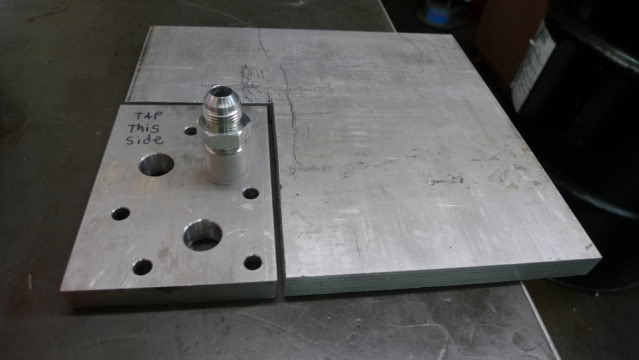

will be using 1/2NPT to AN8 fittings

Click the image to open in full size.


Click the image to open in full size.

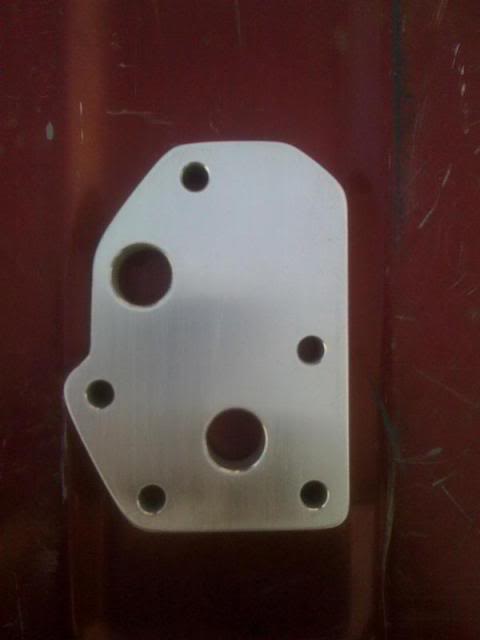

final trimming:

Click the image to open in full size.

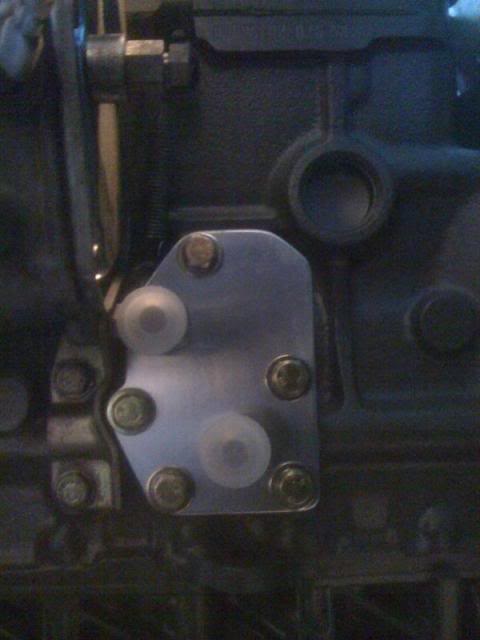

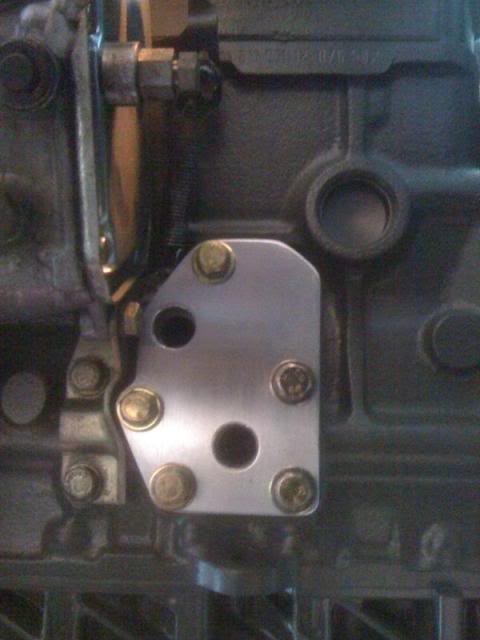

test fit:

Click the image to open in full size.


the biggest reason for my oil-housing relocation was due to a parking brake cable interference...no longer an issue

Click the image to open in full size.

mr_manny's Sig:Toyota fj40 Landcruiser with a Mercedes om617 3.0L turbo diesel
Reply With Quote
  #10
Old 12-24-2010, 01:38 PM
ben2go's Avatar
Diesel Fan
Status: INLINE ON INTERWEB



Default

Great job on whittling that piece out.Give me a few days and I'll have one filed out of aluminum.
