4bt cummins jeep tj


  #31
Old 07-07-2015, 03:05 PM
Dzljon's Avatar
Diesel Fan
Thread Starter
Join Date: Jun 2015
Posts: 38
Received 9 Likes on 8 Posts
Default

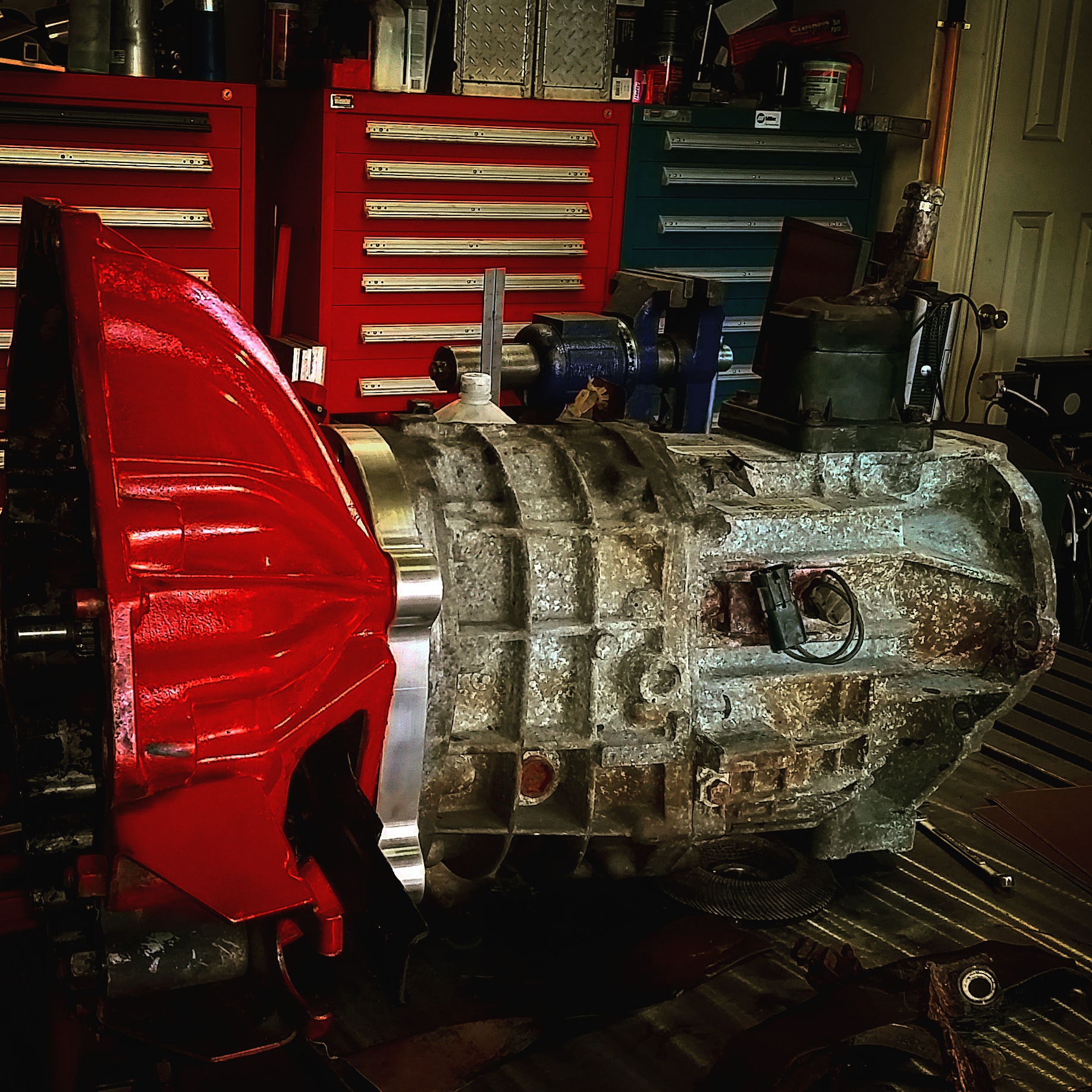

Before and after

Attached Thumbnails 4bt cummins jeep tj-img_20150630_191123.jpg   4bt cummins jeep tj-img_20150701_205946.jpg
Reply Like
  #32
Old 07-07-2015, 03:13 PM
Dzljon's Avatar
Diesel Fan
Thread Starter
Join Date: Jun 2015
Posts: 38
Received 9 Likes on 8 Posts
Default

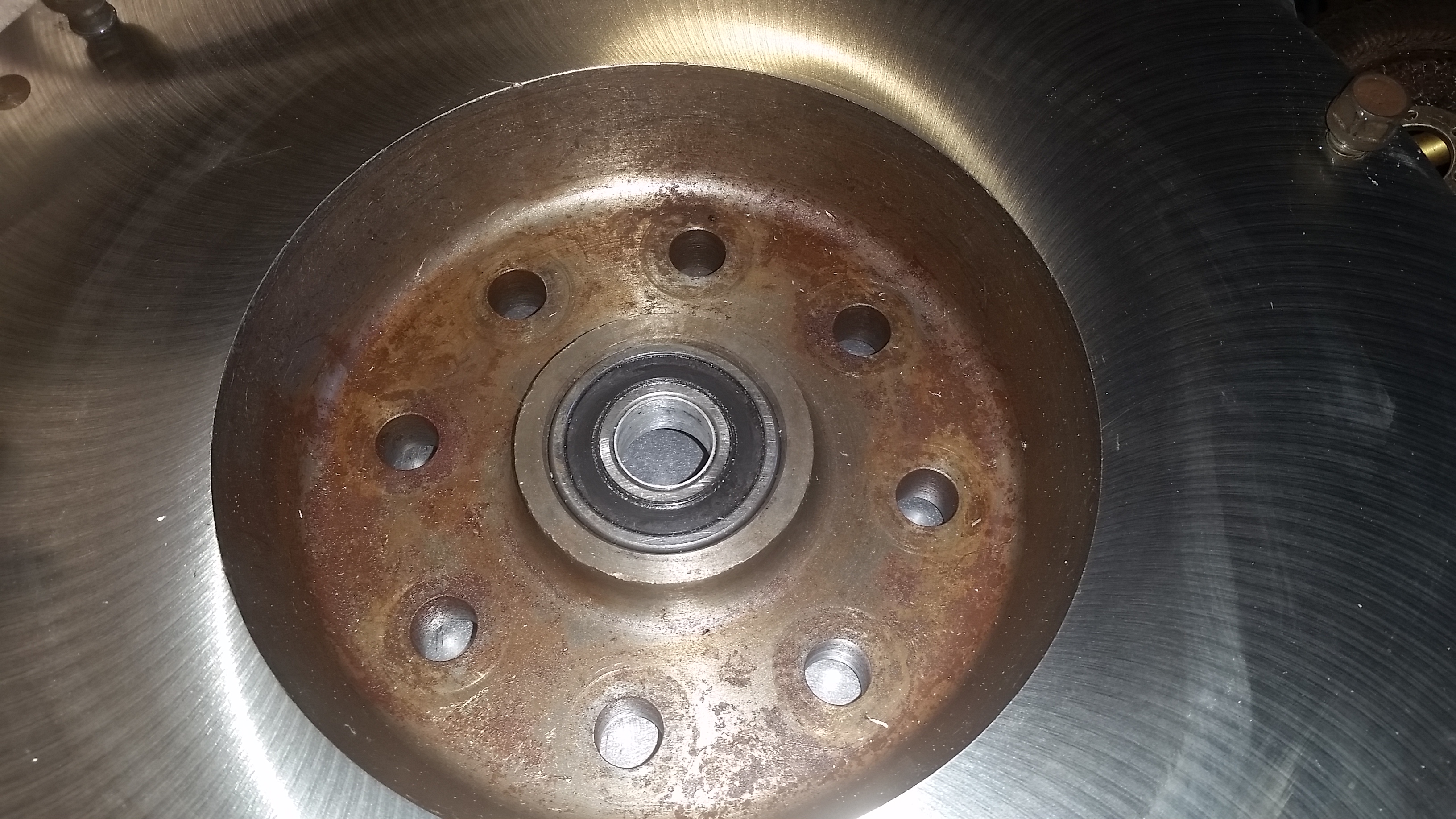

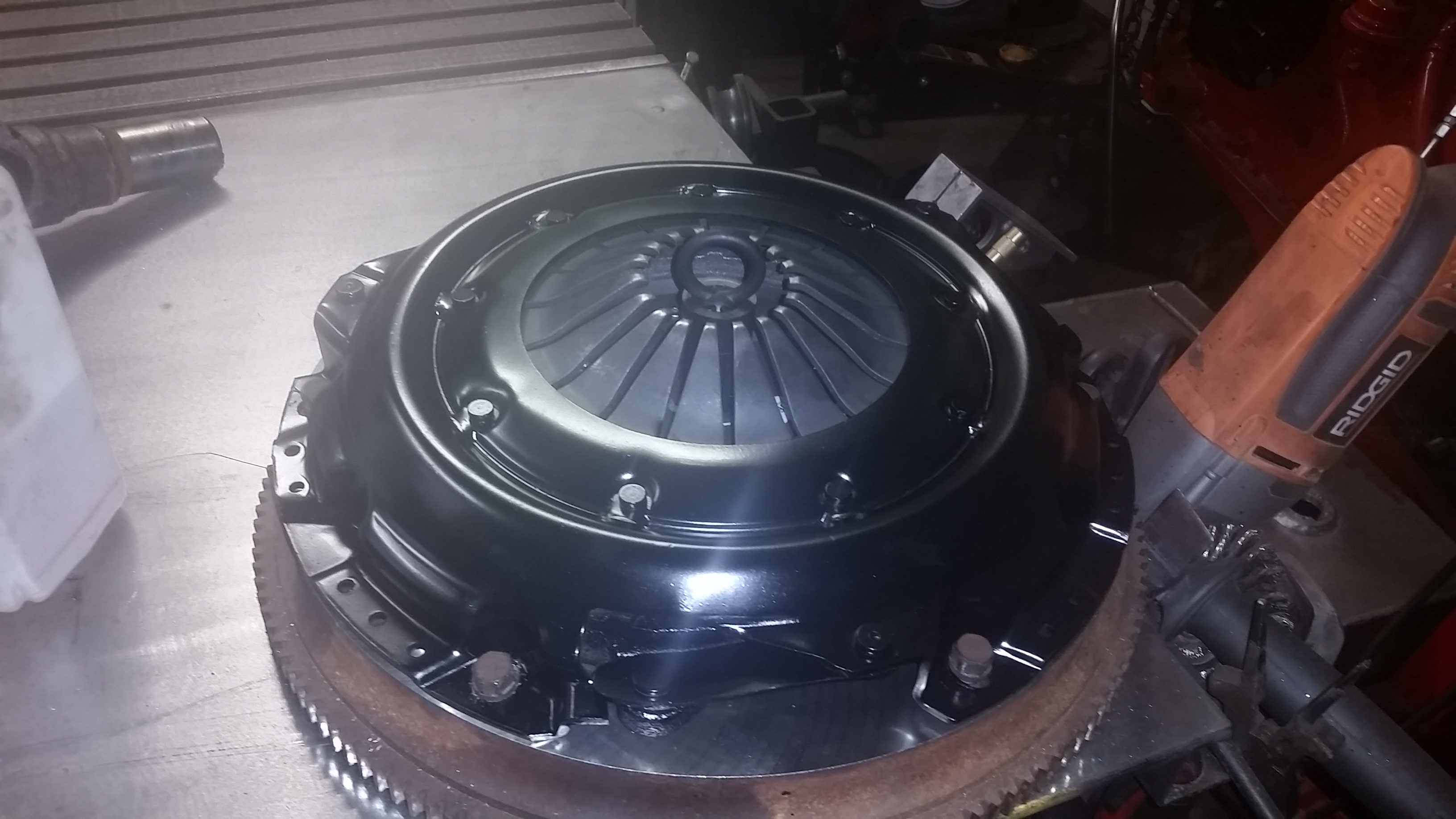

Got the flywheel back from the machine shop and went to work on the clutch, I sourced a new pilot bearing from the local bearing supply but the minor diameter is 1mm to large so I made a bushing and pressed it into the bearing and has a good slip fit over the input shaft

Attached Thumbnails 4bt cummins jeep tj-20150706_201044.jpg   4bt cummins jeep tj-20150706_220905.jpg
Reply Like
  #33
Old 09-19-2015, 05:07 PM
Dzljon's Avatar
Diesel Fan
Thread Starter
Join Date: Jun 2015
Posts: 38
Received 9 Likes on 8 Posts
Default

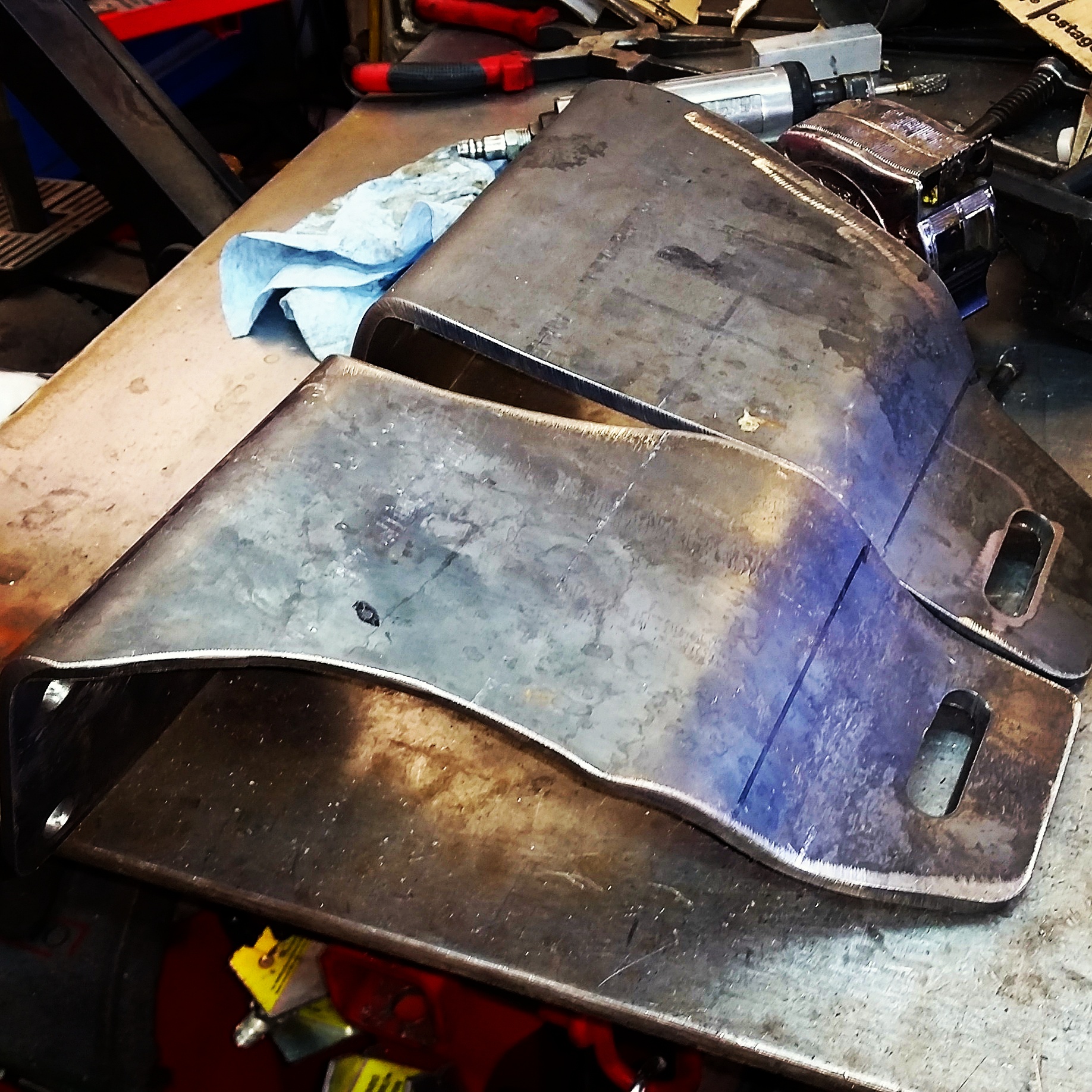

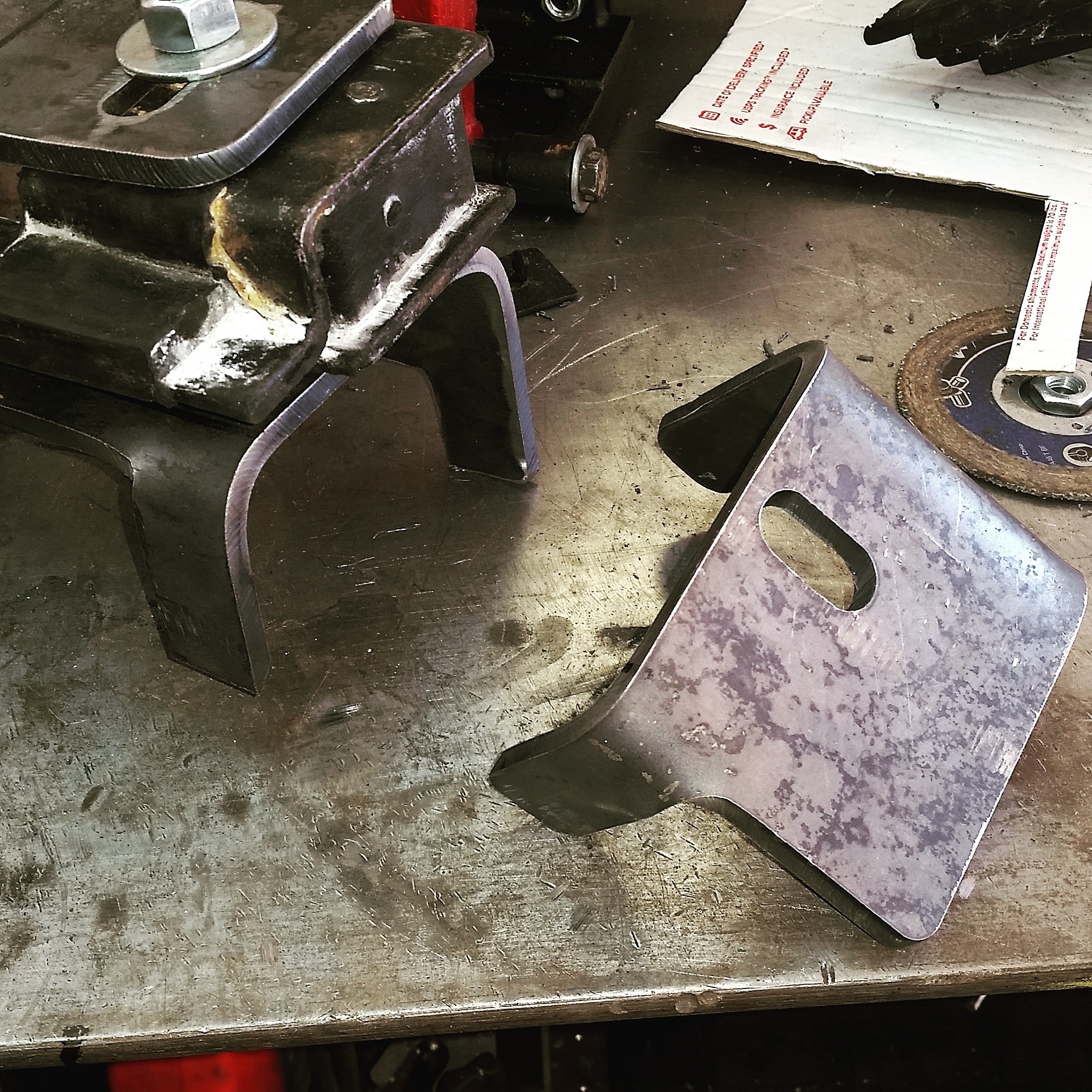

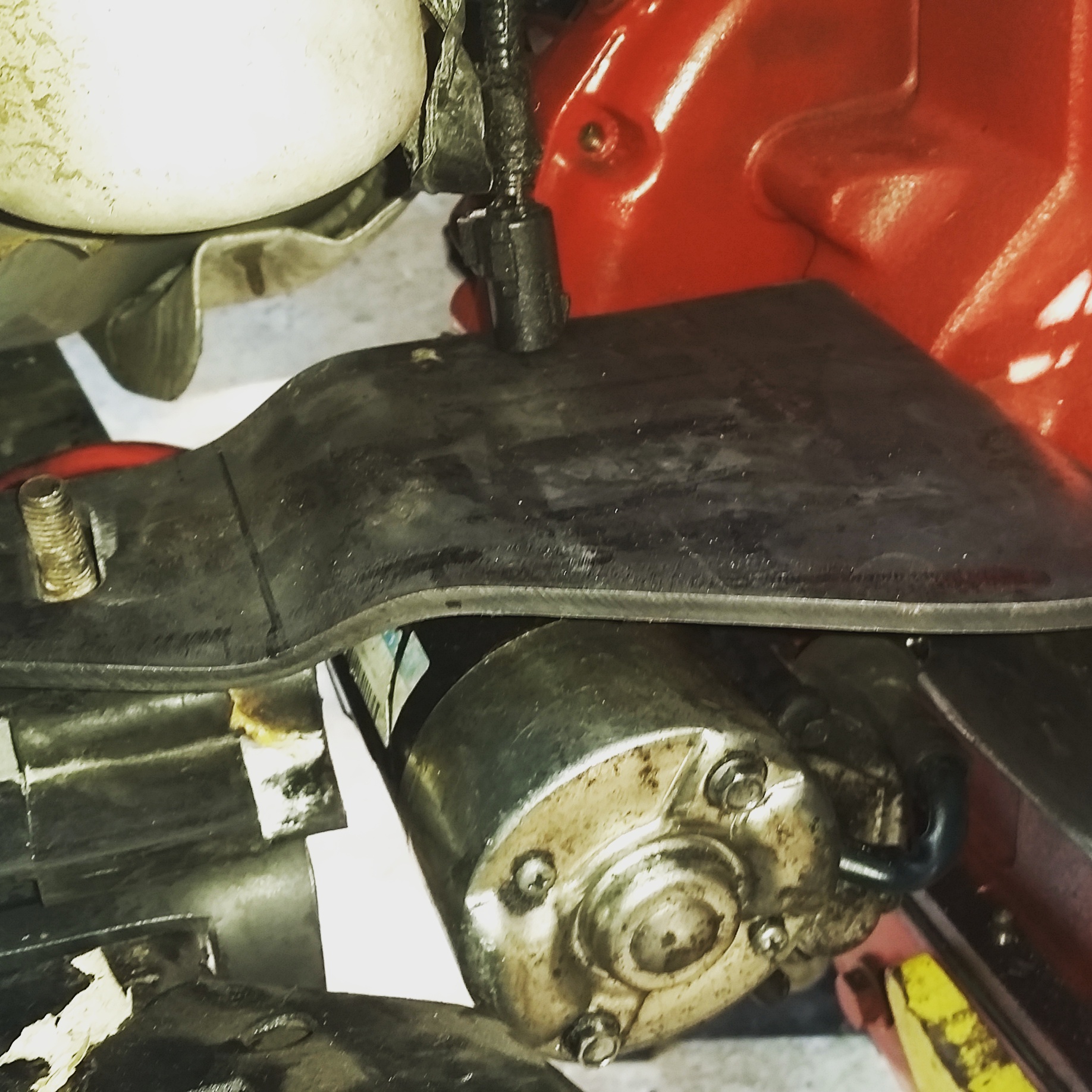

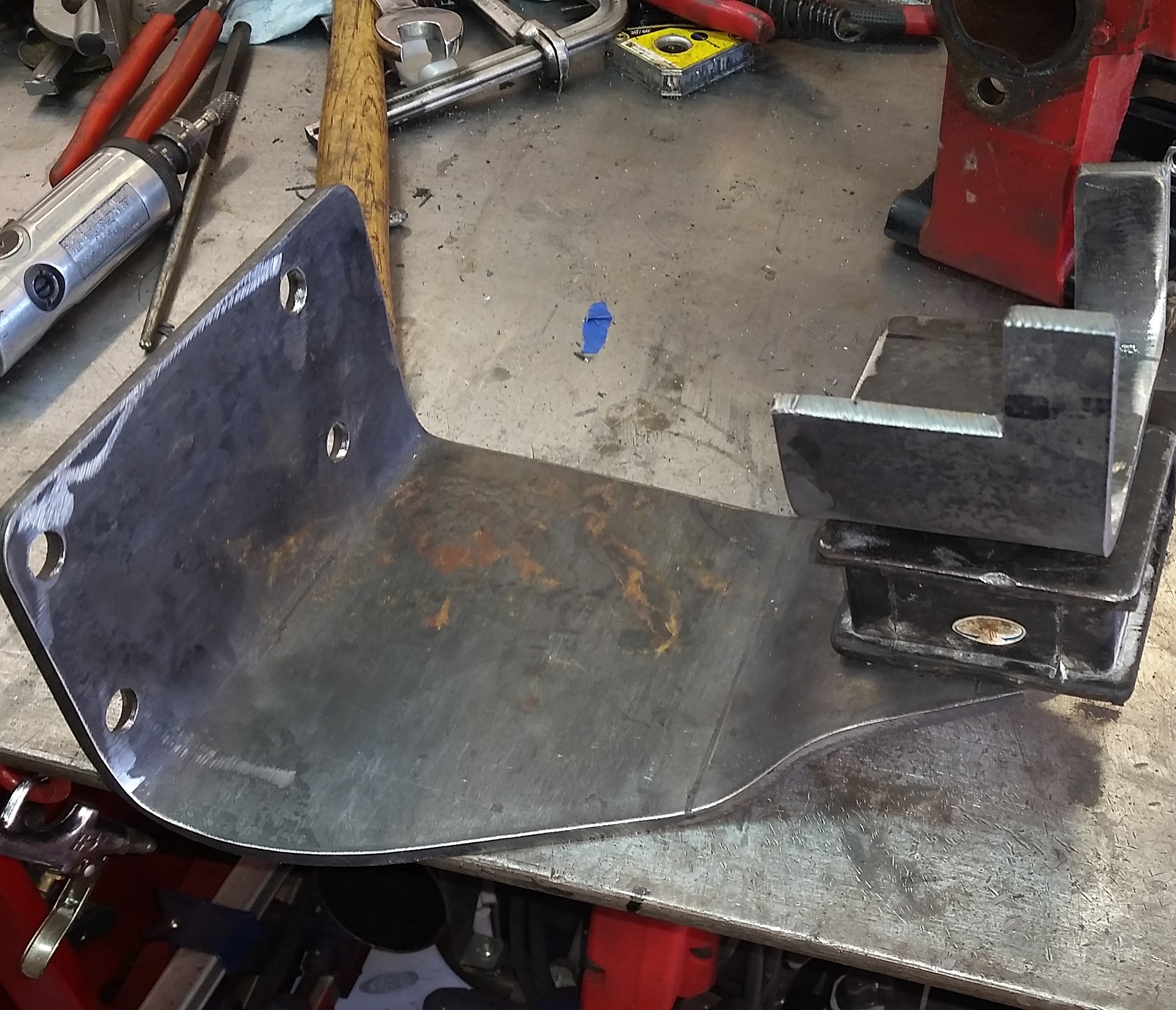

I have been working on the shape of the motor mounts, still lots of gussetts to build and weld to stiffen them

Attached Thumbnails 4bt cummins jeep tj-img_20150907_140534.jpg   4bt cummins jeep tj-img_20150904_181933.jpg   4bt cummins jeep tj-img_20150902_205816.jpg   4bt cummins jeep tj-img_20150902_102357.jpg
Reply Like
  #34
Old 09-19-2015, 05:10 PM
Dzljon's Avatar
Diesel Fan
Thread Starter
Join Date: Jun 2015
Posts: 38
Received 9 Likes on 8 Posts
Default

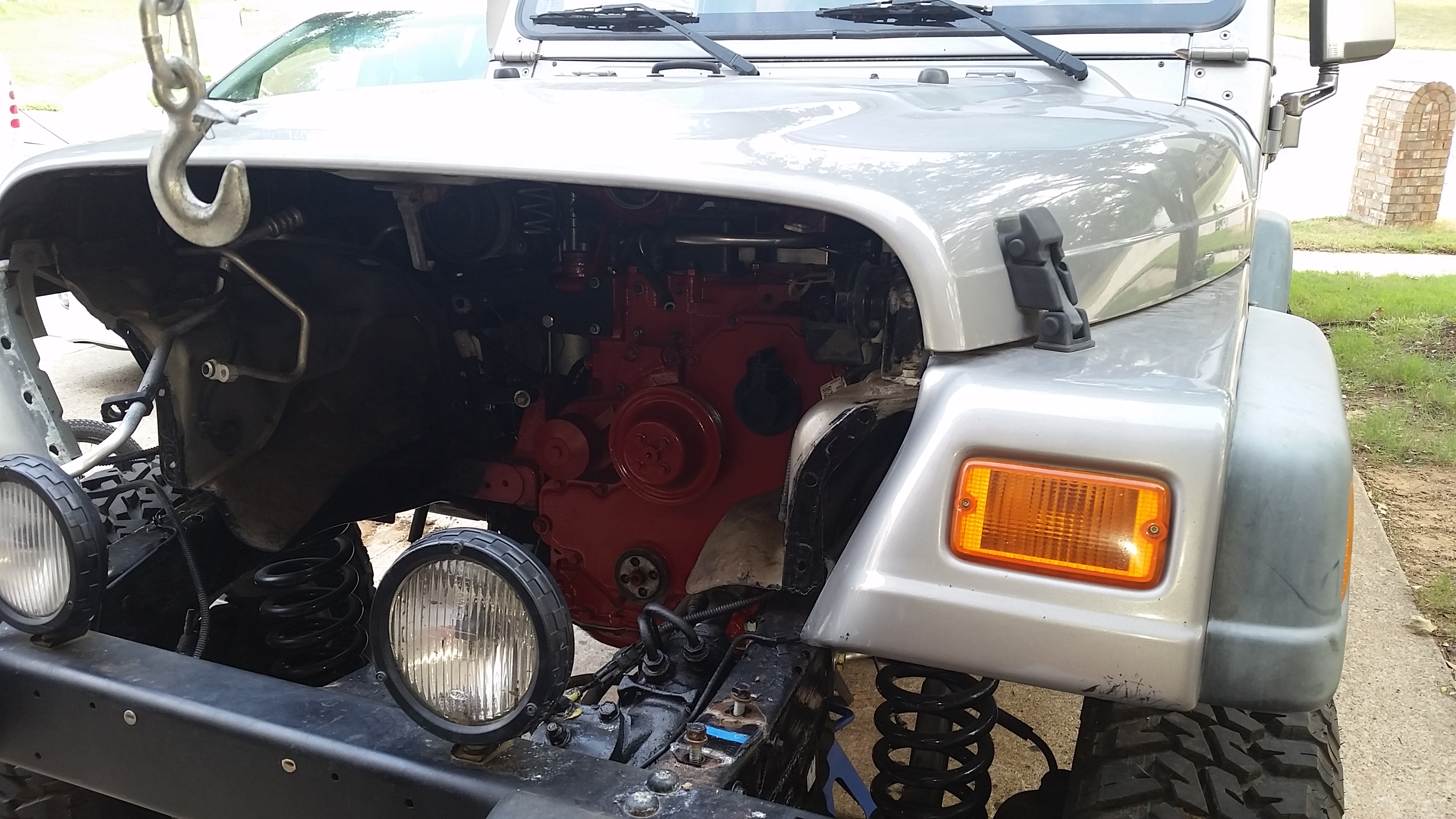

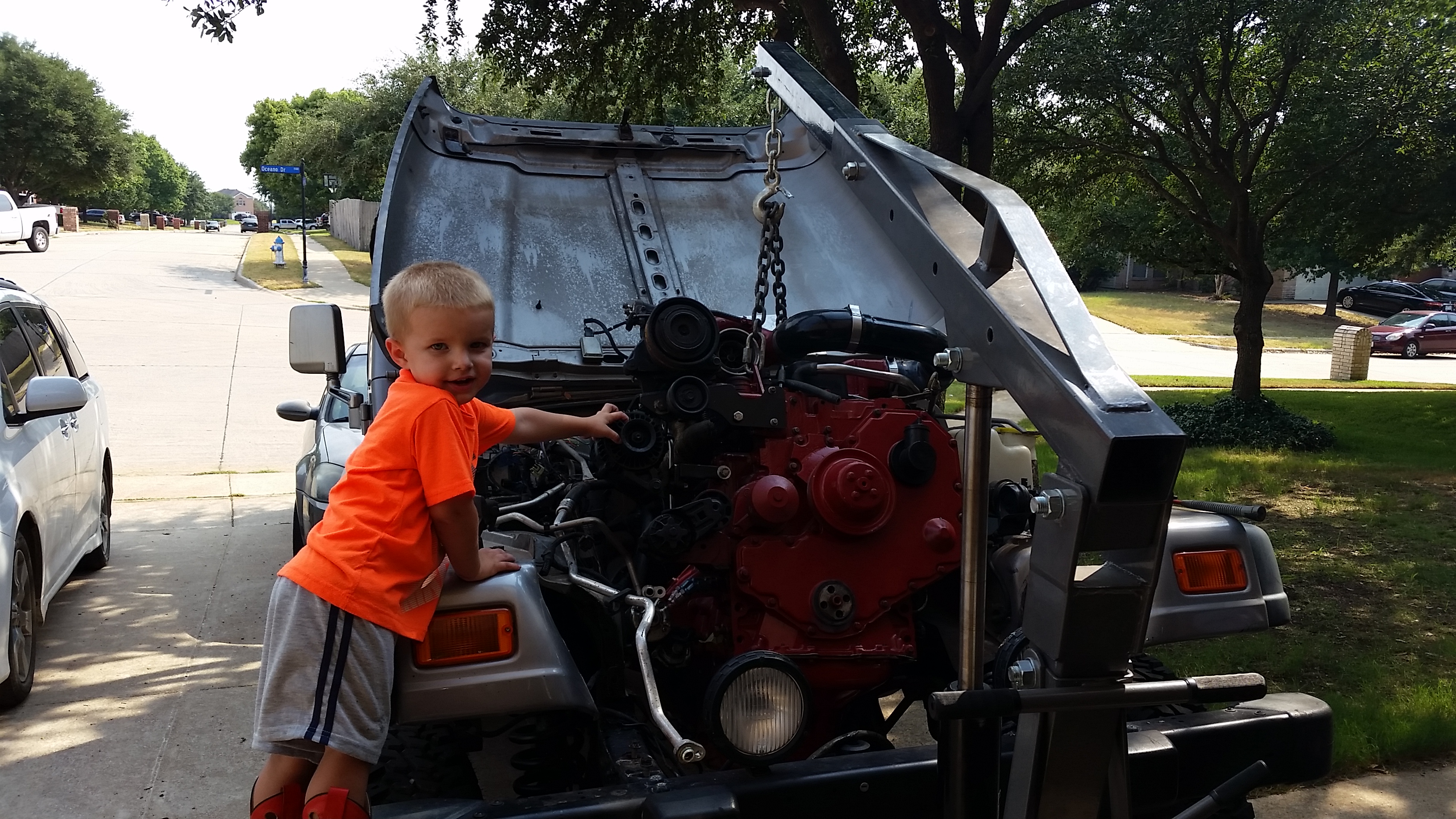

Shot of the motor going in

Attached Thumbnails 4bt cummins jeep tj-20150830_182558.jpg   4bt cummins jeep tj-20150830_160335.jpg
Reply Like
  #35
Old 09-19-2015, 05:13 PM
Dzljon's Avatar
Diesel Fan
Thread Starter
Join Date: Jun 2015
Posts: 38
Received 9 Likes on 8 Posts
Default

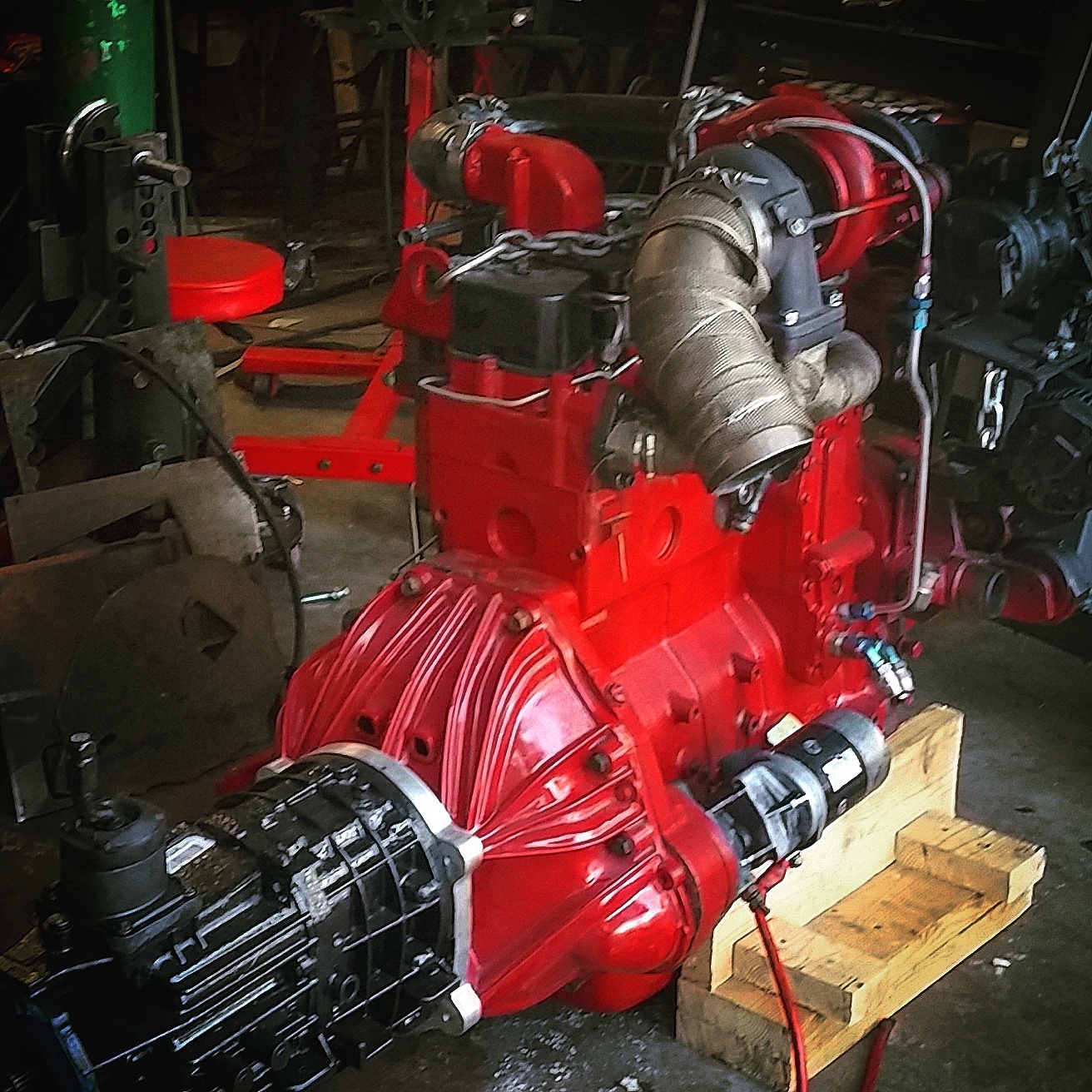

Before the test fit

Attached Thumbnails 4bt cummins jeep tj-img_20150905_035844.jpg
Reply Like
  #36
Old 09-21-2015, 09:45 PM
Dzljon's Avatar
Diesel Fan
Thread Starter
Join Date: Jun 2015
Posts: 38
Received 9 Likes on 8 Posts
Default

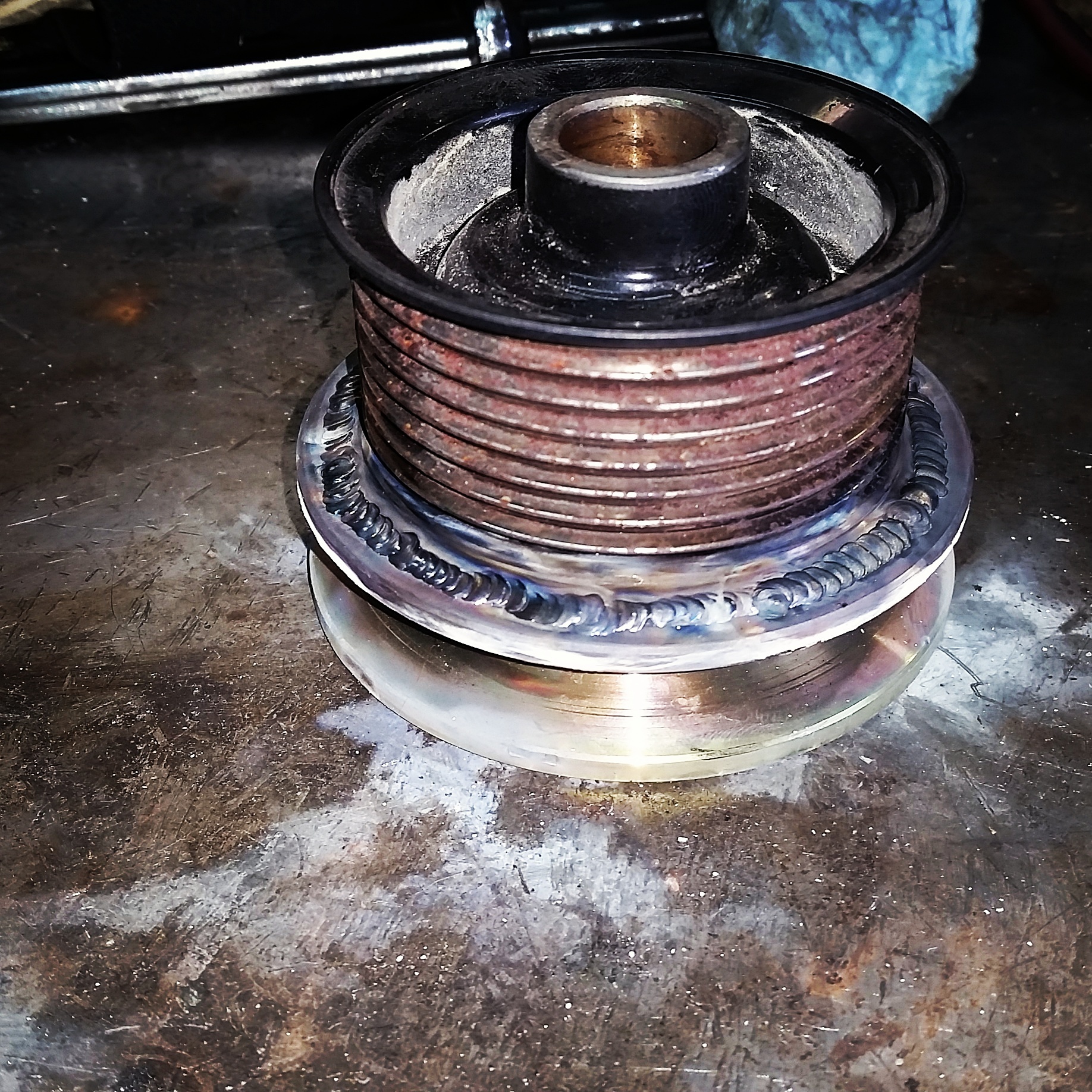

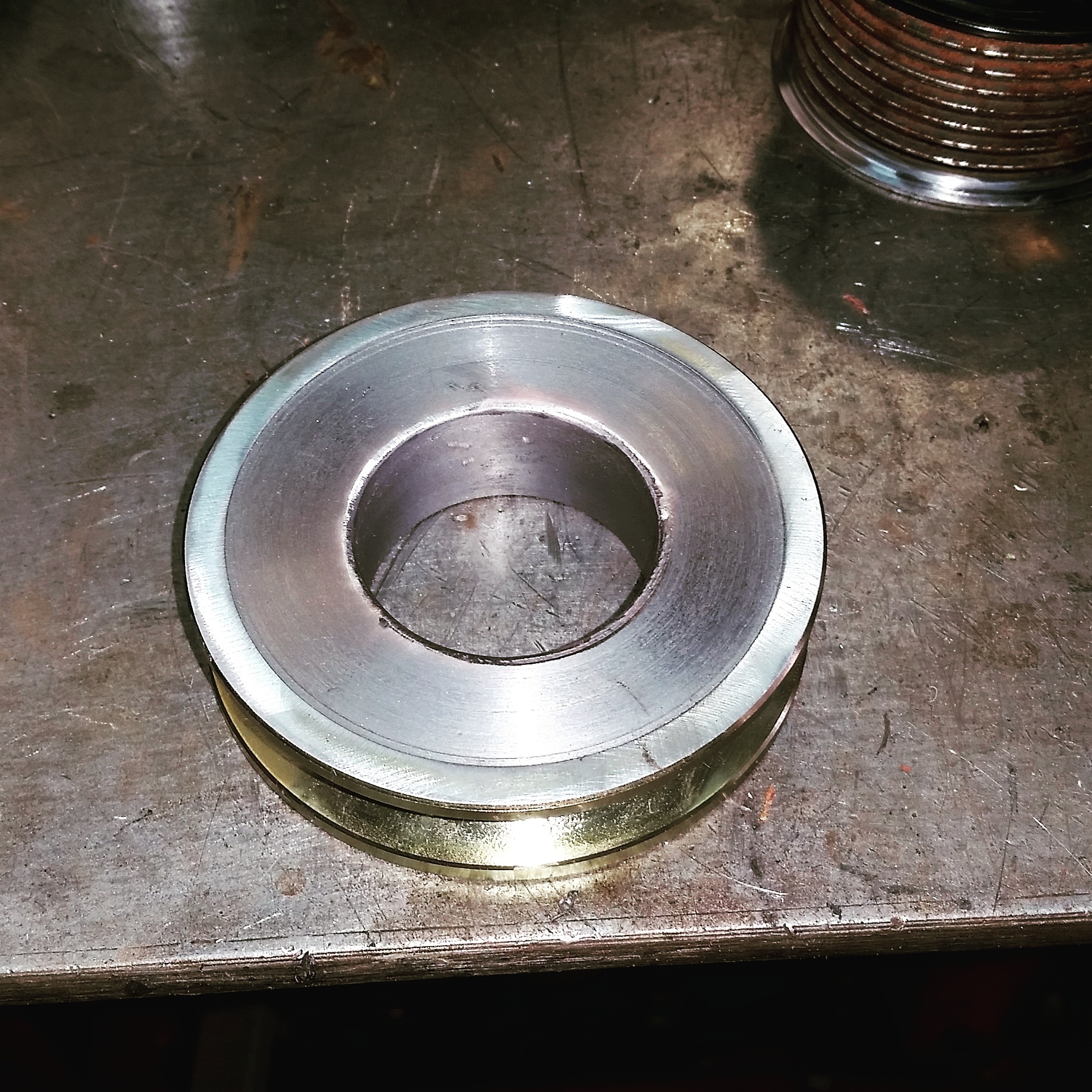

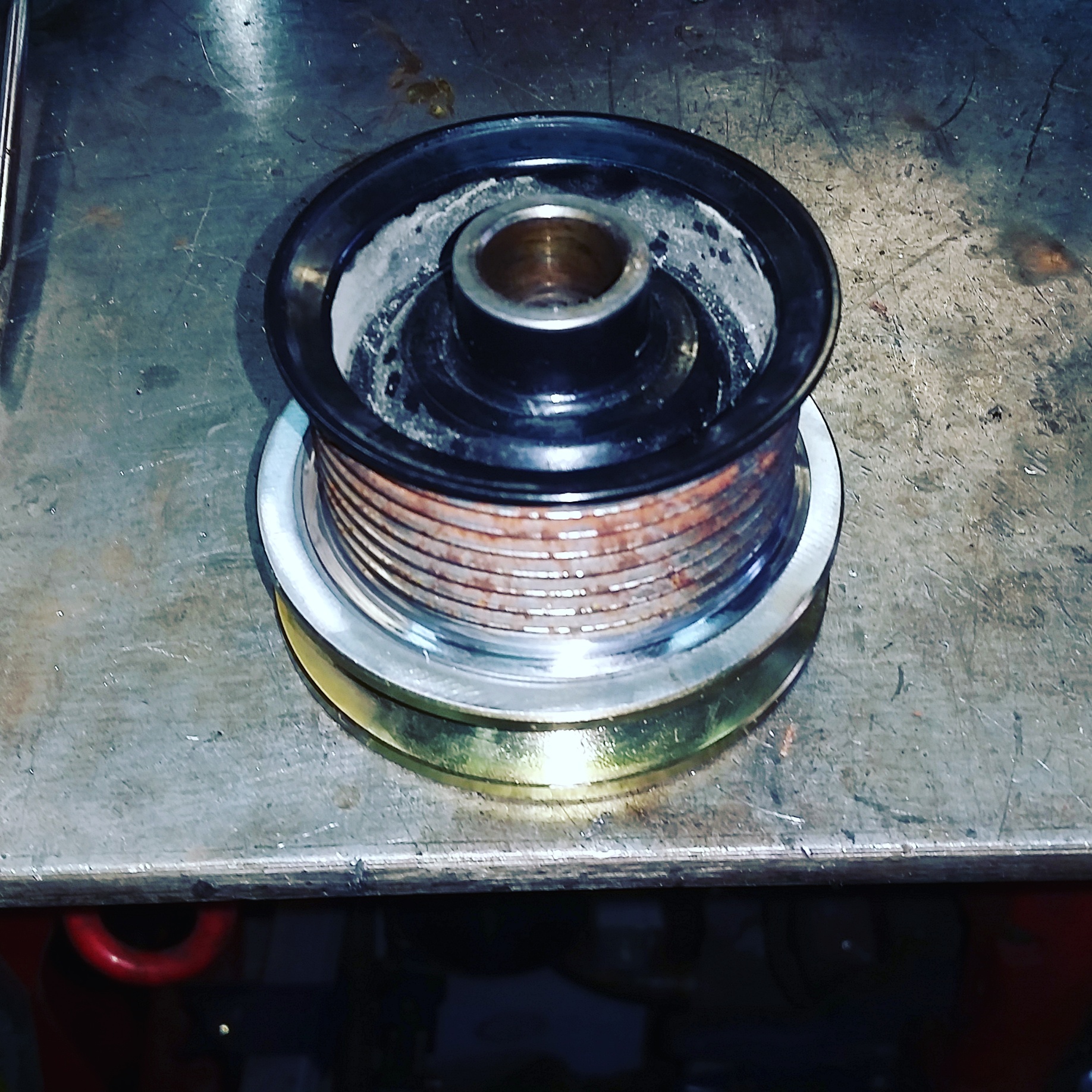

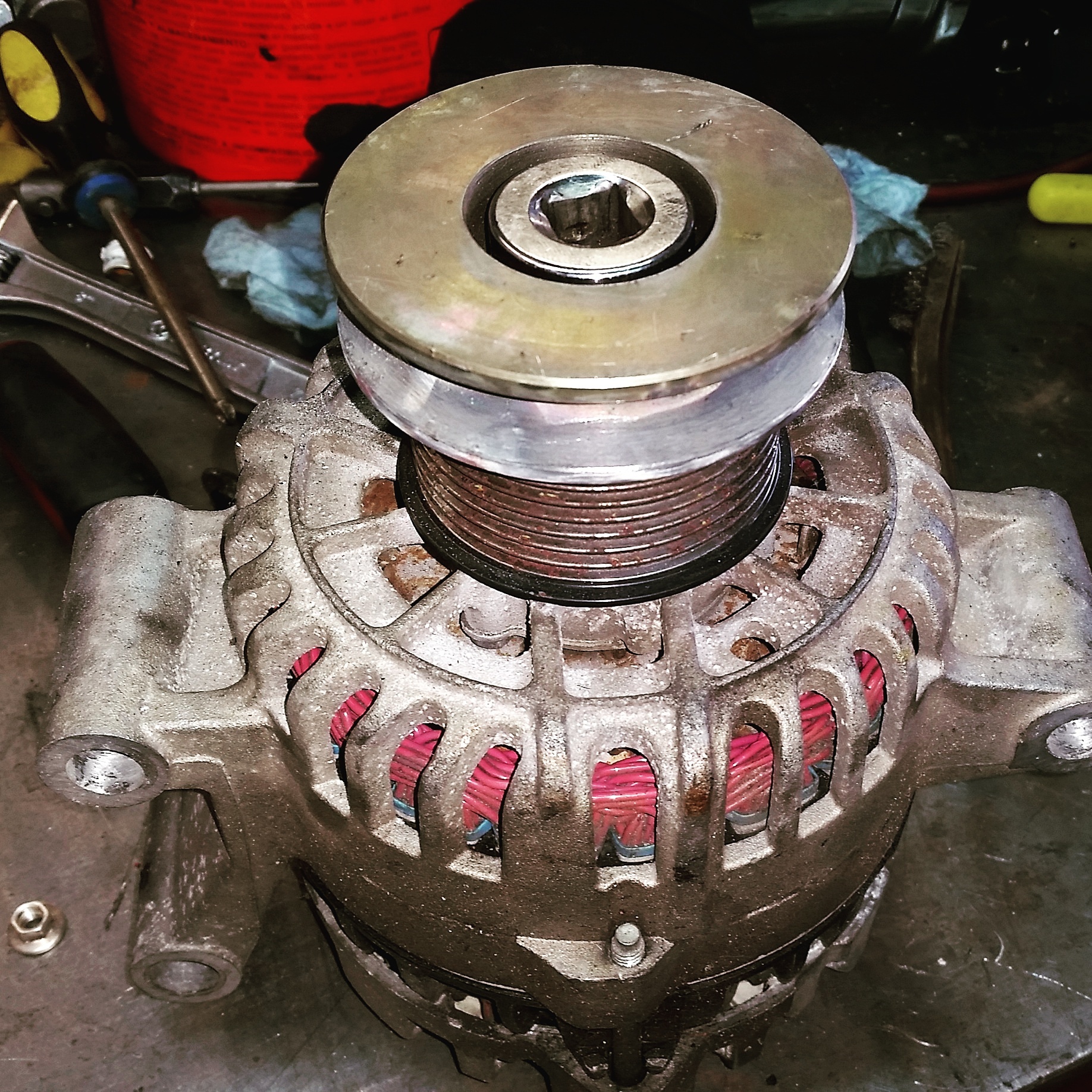

Modified alt pulley to drive a engine driven compressor

Attached Thumbnails 4bt cummins jeep tj-img_20150921_181511.jpg   4bt cummins jeep tj-img_20150921_182135.jpg   4bt cummins jeep tj-img_20150921_181624.jpg   4bt cummins jeep tj-img_20150921_181812.jpg
Reply Like
  #37
Old 09-22-2015, 05:47 PM
Dzljon's Avatar
Diesel Fan
Thread Starter
Join Date: Jun 2015
Posts: 38
Received 9 Likes on 8 Posts
Default

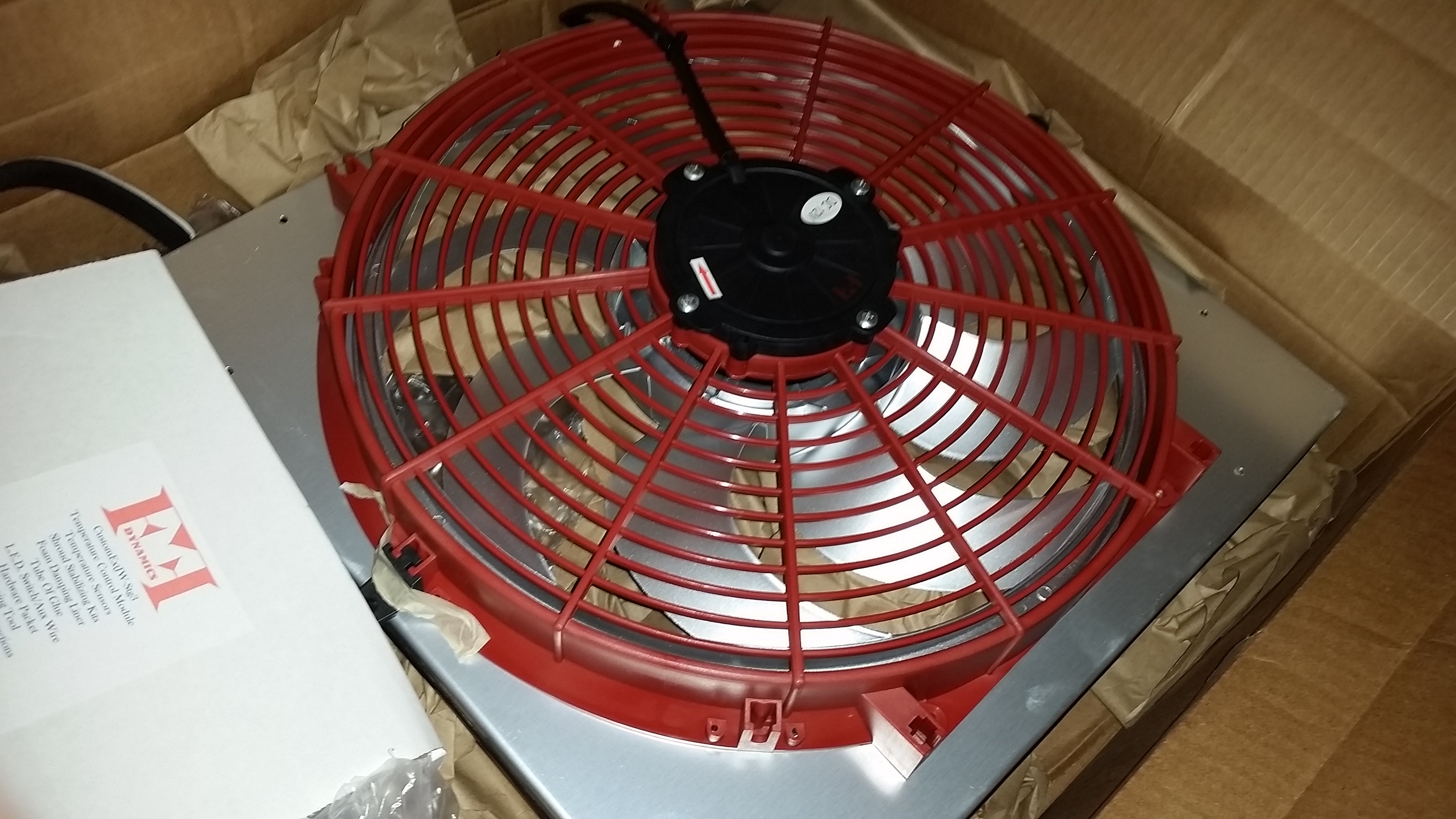

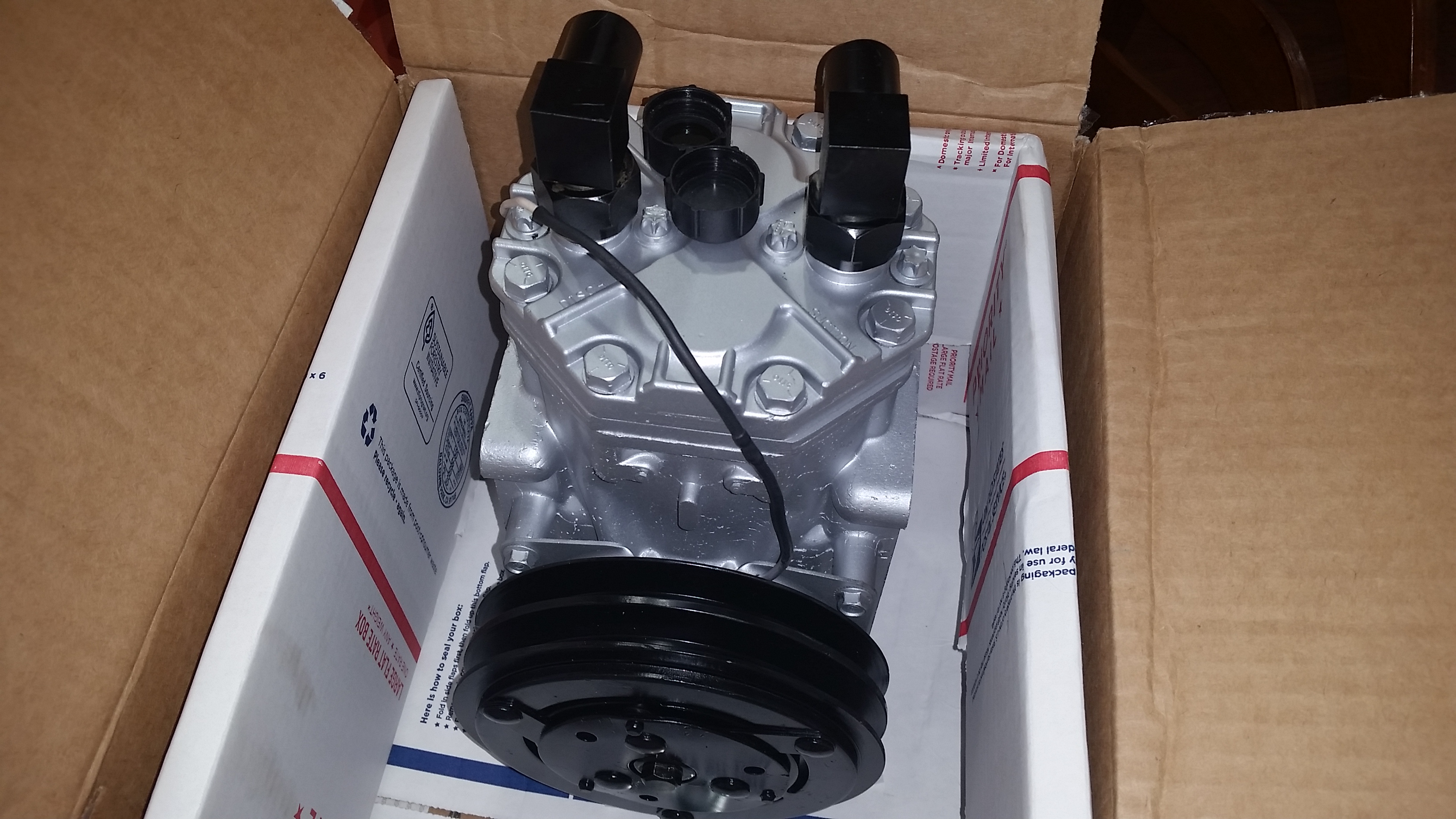

Air compressor and fan showed up

Attached Thumbnails 4bt cummins jeep tj-20150922_142438.jpg   4bt cummins jeep tj-20150922_173009.jpg
Reply Like
  #38
Old 10-02-2015, 05:31 PM
Dzljon's Avatar
Diesel Fan
Thread Starter
Join Date: Jun 2015
Posts: 38
Received 9 Likes on 8 Posts
Default

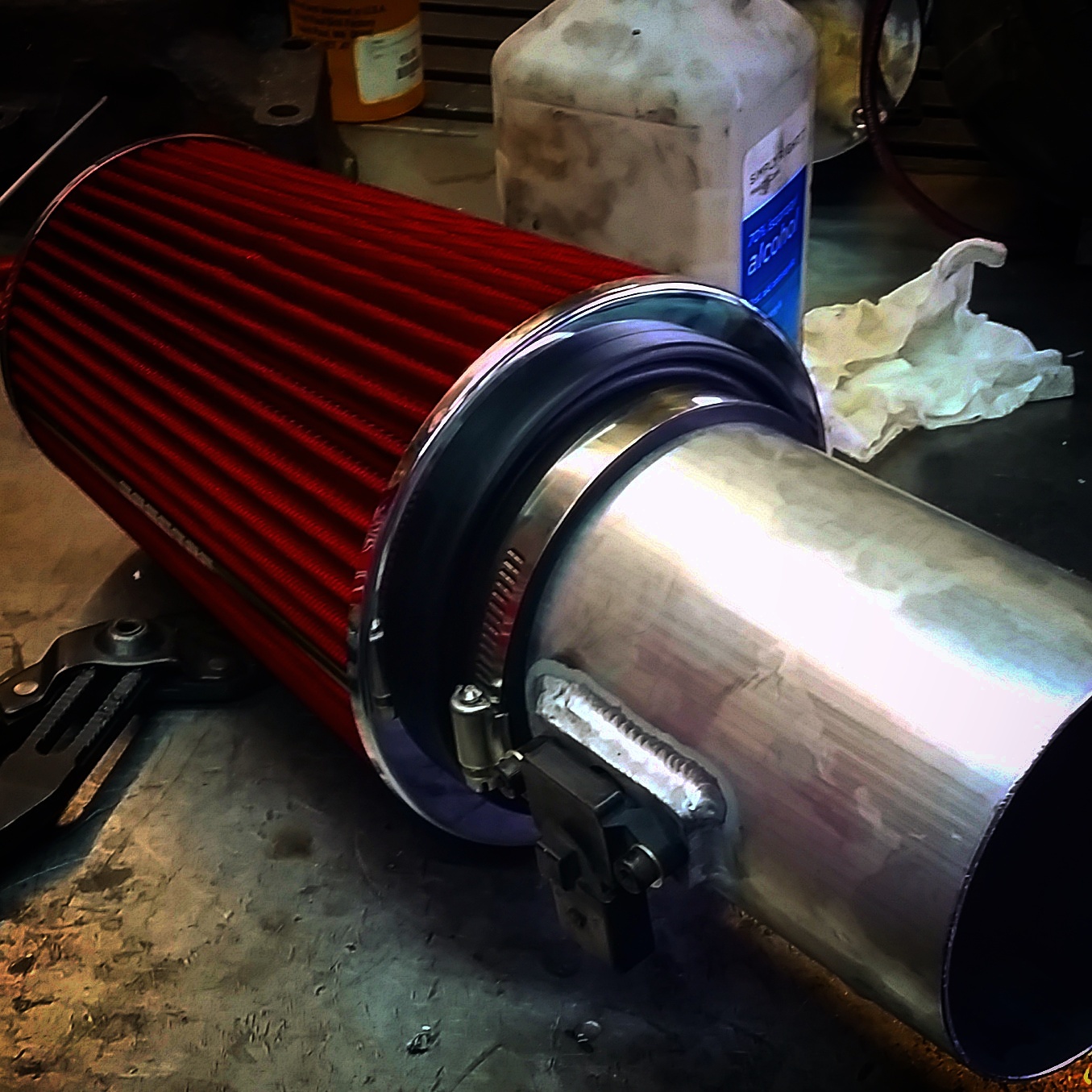

Started the air intake

Attached Thumbnails 4bt cummins jeep tj-img_20151001_182023.jpg
Reply Like
  #39
Old 10-13-2015, 03:47 PM
Dzljon's Avatar
Diesel Fan
Thread Starter
Join Date: Jun 2015
Posts: 38
Received 9 Likes on 8 Posts
Default

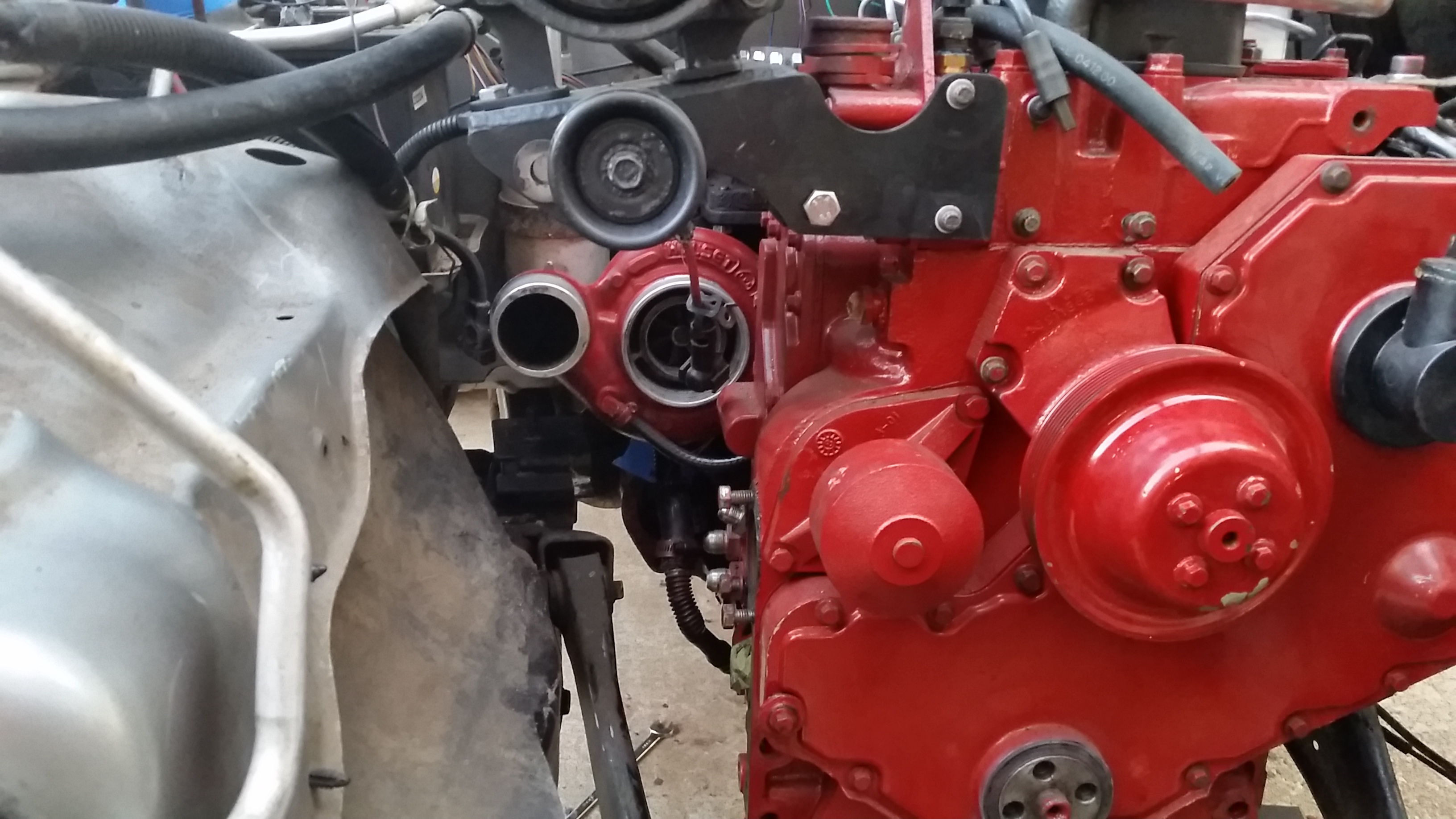

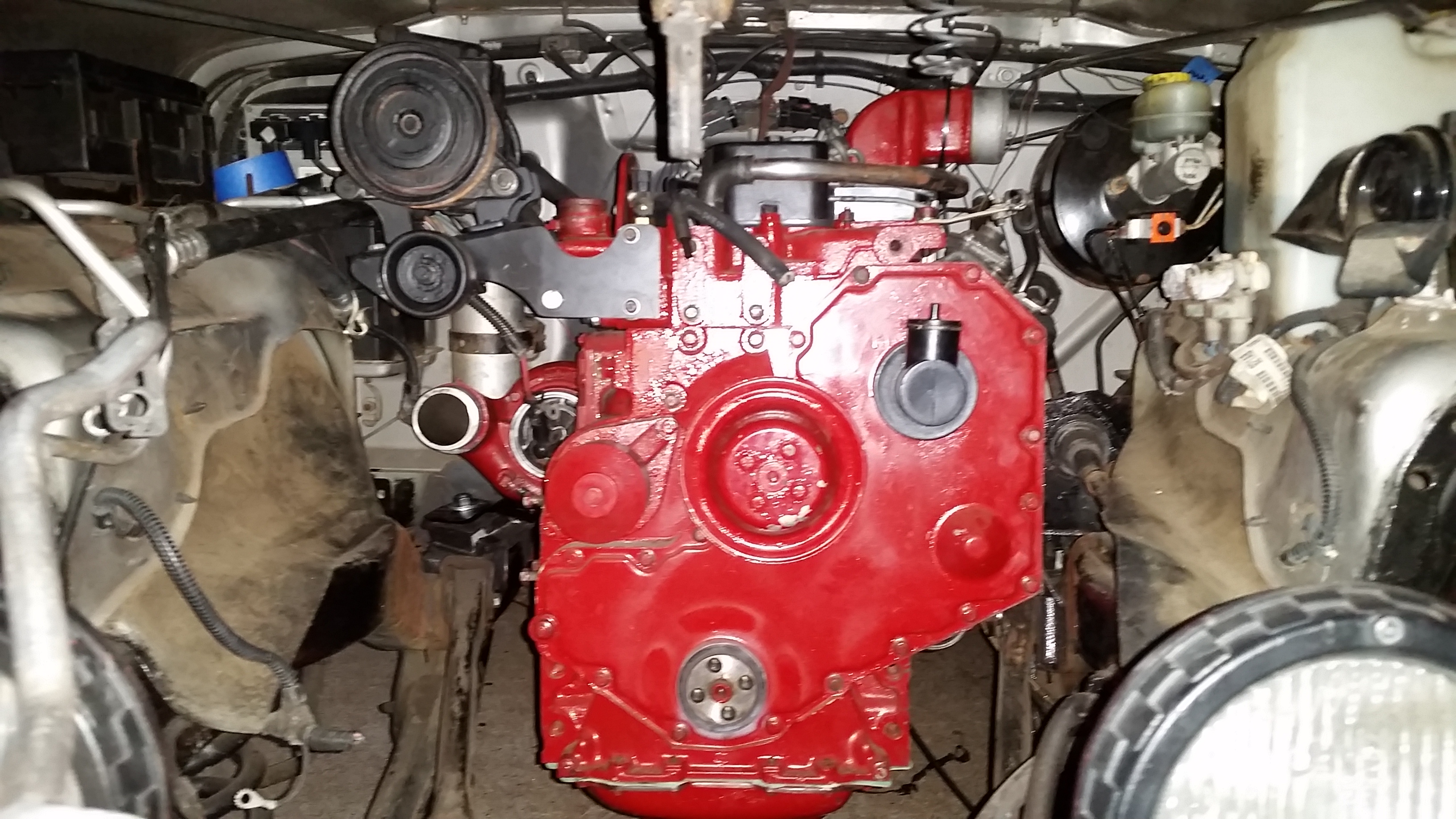

Had to move the turbo but the little 4bt is mounted in the jeep

Attached Thumbnails 4bt cummins jeep tj-20151011_184120.jpg   4bt cummins jeep tj-20151011_191901.jpg
Reply Like
  #40
Old 10-13-2015, 03:49 PM
Dzljon's Avatar
Diesel Fan
Thread Starter
Join Date: Jun 2015
Posts: 38
Received 9 Likes on 8 Posts
Default

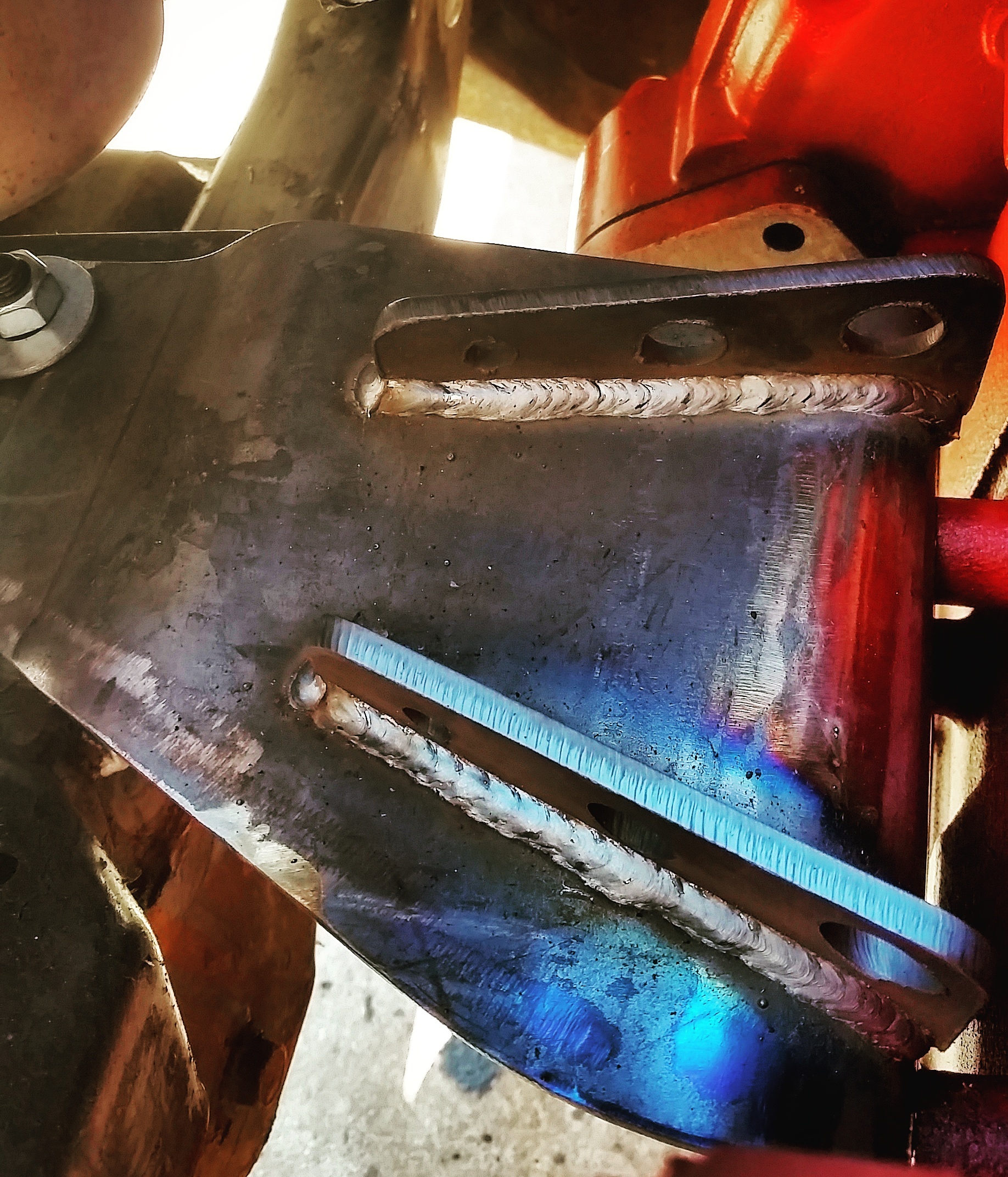

Passenger side motor mount

Attached Thumbnails 4bt cummins jeep tj-img_20151011_194736.jpg
Reply Like
