Om617 96 Jeep Cherokee build thread
#211
Last thing on my list is the wiring stuff. What do you do with all old the injector wires, and other unnecessary wiring? Did you just cut and cap everything? does the computer need to be reflashed to delete all of the unused sensors, or do you just disable the check engine light?
#212
The ECM only needs to see the cam and crank signals to work. It is debatable on some years if the cam signal is needed. I'm going to test this theory when I have a chance by disconnecting the cam sensor and seeing if all still works. Remember the only thing the computer does is mule for tachometer. All other sensor wires can be removed, this is what I did. Hind sight being 20/20 I should have left the entire wiring harness intact until EVERYTHING was done and driving for awhile, this would insure I had access to wires I could use. Food for thought, the harness has lots of possibly useful sensors. These unused sensors can be used to mule other things such as; additional water temp, trans temp, Ac high/low switch, air intake sensor, throttle position sensor. These sensor leads can be used for other things like possibly cruise control or VTN turbo control. They sell inexpensive monitors that plug into the OBD2 port that could monitor all the inputs.
#213
#216
Cooling system upgrade. The current draw with the 2 factory electric fans was huge, the temp fluctuated alot they left 15% of the radiator uncovered. On my 3rd Champion aluminum 3 core radiator (never buy Champion!), they ALL leak....
So onto the upgrades.
All copper brass 2 core CSF, parellel flow AC condensor, shroud with triple Spal 10' fans and PWM controller. I've also changed my K26 turbo for the Garrett temporarily until the new Holset Hx30w comes in. Once the cooling has been upgraded I'll drive it a bit before I install the custom M injection pump with 7.5mm elements, I'm told this should be good to 250hp.
Last edited by Evenglass; 12-07-2015 at 12:27 PM.
#217
#218
is your M pump a Myna or Dieselmeken? Are the M pumps essentially a bolt on modification? Are there other mods to be made to allow the M pump to work properly with an engine originally designed for the MW pump? I definitely feel your pain with the Champion radiator! Looks like a good deal, but nooooo!
#219

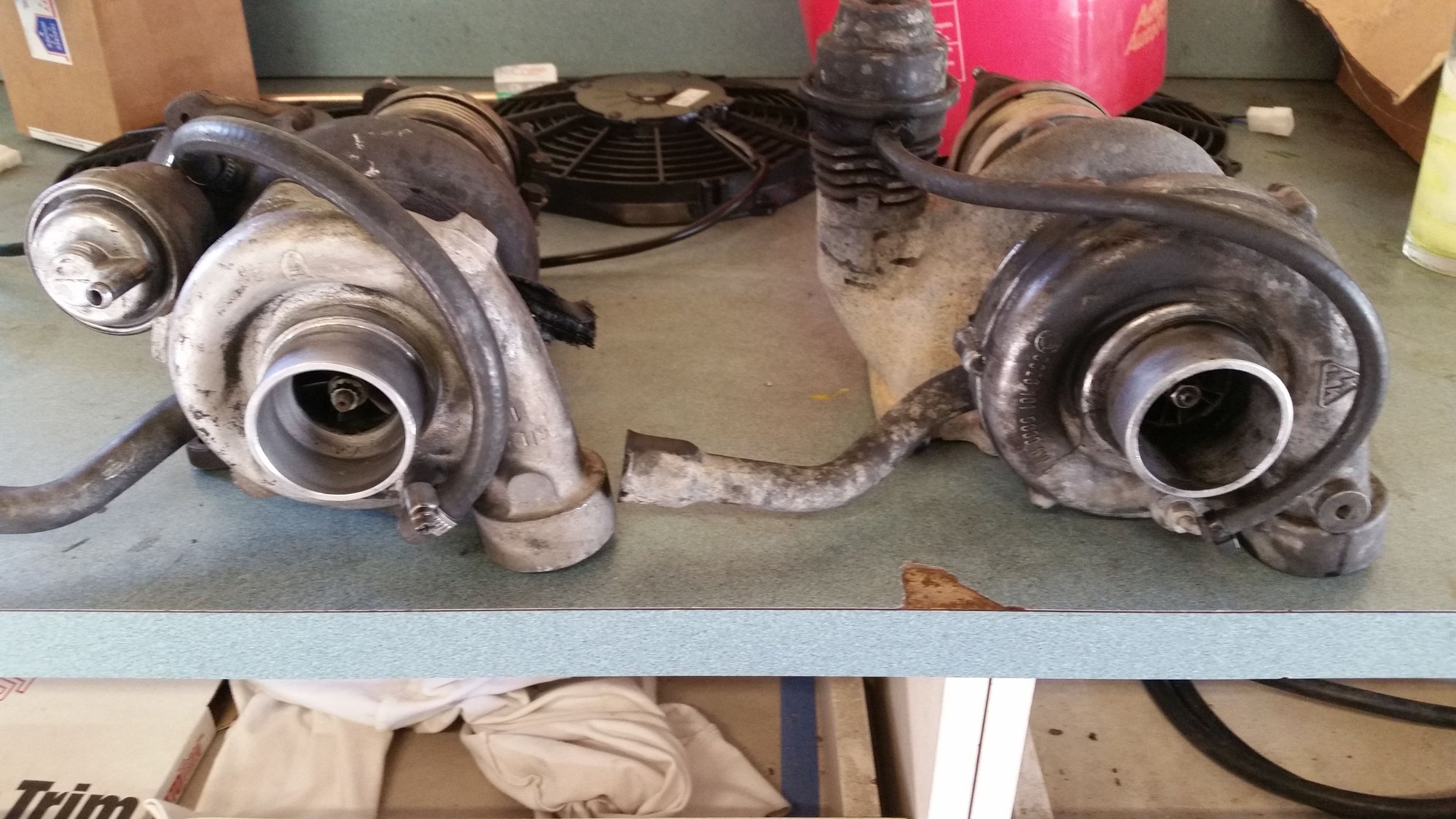

I can confirm the factory Garrett to be a better turbo than the KKK. First drive with it today showed spool the same, higher cruising boost and 100 degrees cooler EGTs at 65mph.
#220
is your M pump a Myna or Dieselmeken? Are the M pumps essentially a bolt on modification? Are there other mods to be made to allow the M pump to work properly with an engine originally designed for the MW pump? I definitely feel your pain with the Champion radiator! Looks like a good deal, but nooooo!
