usedkubotaman - do you remember the exhaust output size of the gt1752?
so if i am looking at this calculator correctly and the maps.
it looks like the gt1544 would be a good match.
this turbo came on the vw 1.9l TD
I put my target power to 120 hp approx 100hp at the wheels.
i will keep an eye out for this turbo in any junkyards local.
so if i am looking at this calculator correctly and the maps.
it looks like the gt1544 would be a good match.
this turbo came on the vw 1.9l TD
I put my target power to 120 hp approx 100hp at the wheels.
i will keep an eye out for this turbo in any junkyards local.
#62
Hmm, interesting information! I just split the difference between the recommended intercooled and non-intercooled BSFC to try and be more realistic, but I'll have to play around with the numbers you provided. Another consideration is that I don't think that our engines have the E-TVCS system listed on the link you provided, but I have no idea how this would impact. I would guess that the best way would be to see what BSFC number best supports our real world experiences.
#63
My turbo showed up yesterday.
I am amazed with the exhaust flange/port. I am expecting a major improvement with my header! things will flow smoothly.

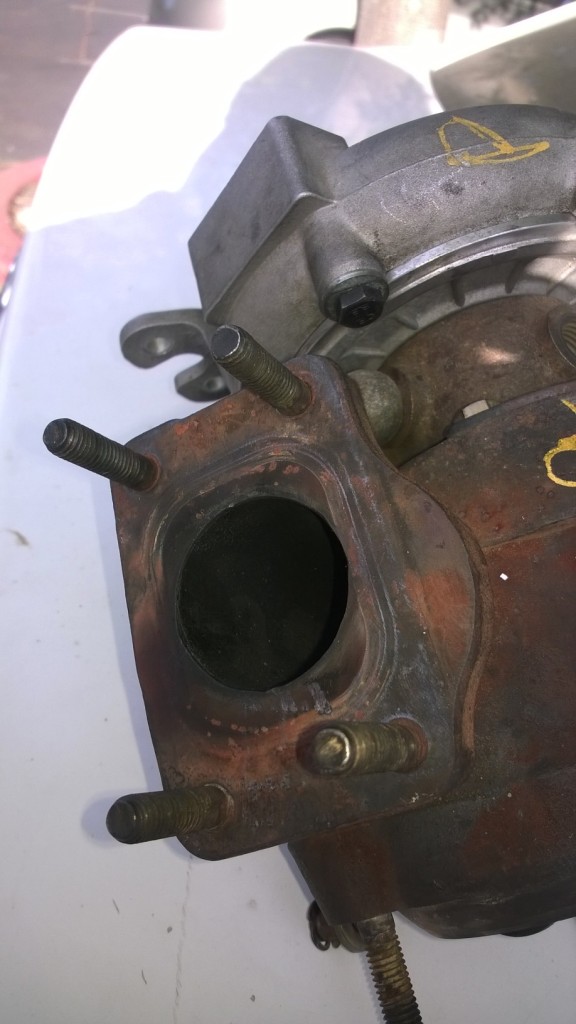

A T25 flange has rectangle port that measures 1.94 x 1.57 with .375 radius corner approx.

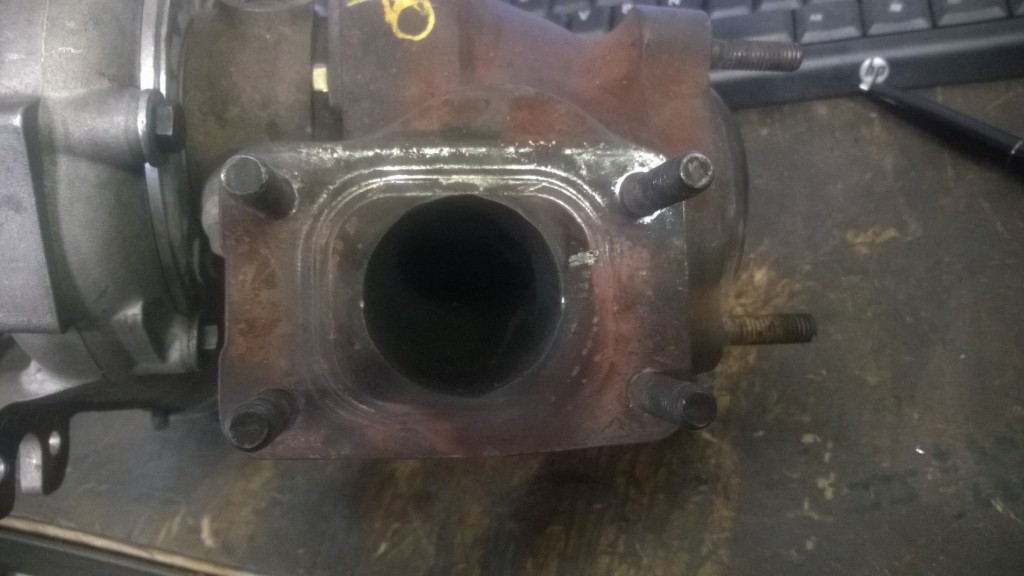

the GT1752 has a 1.52 circular port. The exhaust residue on the flange shows the restriction.
I am making my flange with a merge collector from 4 x 1.25 OD to 1.5 outlet. Should increase velocity right before the turbine and be SMOOTH
This is the merge collector I am going to order sooner or later. got a couple other things to pay for first.
4-1 Collector, 1.25" Inlets, 1.50" Outlet, 4.5" Long, Mild Steel Columbia River Mandrel Bending
I am also getting my mandrel tubing from here. Going with their ultimate builder kit the first time. I think there will be enough tubing for two complete headers.
Flanges are available if anyone else wants to tackle this project.
i will also be rebuilding this turbo. got some play in it.

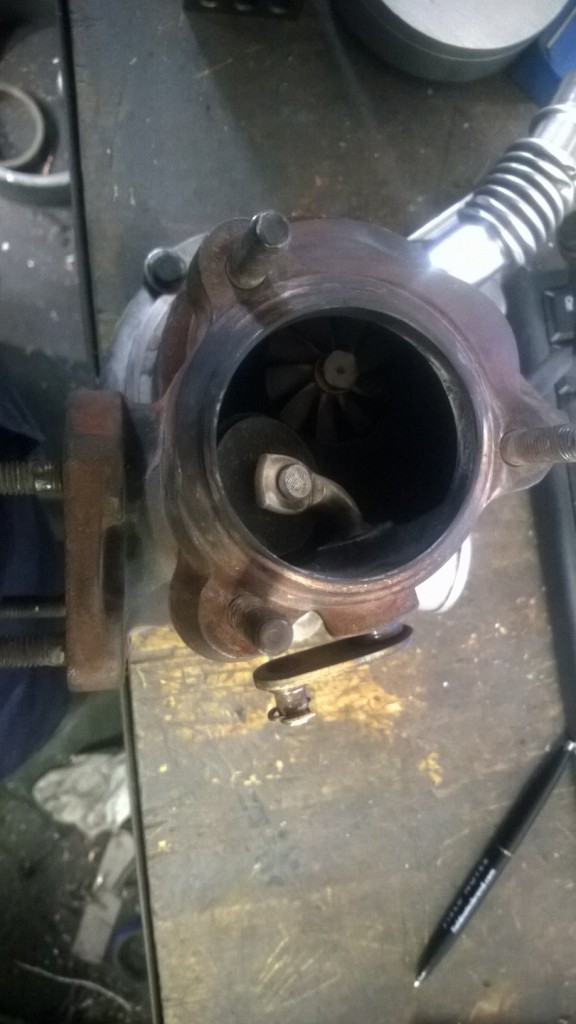

Pictures follow.
Thanks
Ken
I am amazed with the exhaust flange/port. I am expecting a major improvement with my header! things will flow smoothly.
A T25 flange has rectangle port that measures 1.94 x 1.57 with .375 radius corner approx.
the GT1752 has a 1.52 circular port. The exhaust residue on the flange shows the restriction.
I am making my flange with a merge collector from 4 x 1.25 OD to 1.5 outlet. Should increase velocity right before the turbine and be SMOOTH
This is the merge collector I am going to order sooner or later. got a couple other things to pay for first.
4-1 Collector, 1.25" Inlets, 1.50" Outlet, 4.5" Long, Mild Steel Columbia River Mandrel Bending
I am also getting my mandrel tubing from here. Going with their ultimate builder kit the first time. I think there will be enough tubing for two complete headers.
Flanges are available if anyone else wants to tackle this project.
i will also be rebuilding this turbo. got some play in it.
Pictures follow.
Thanks
Ken
#64

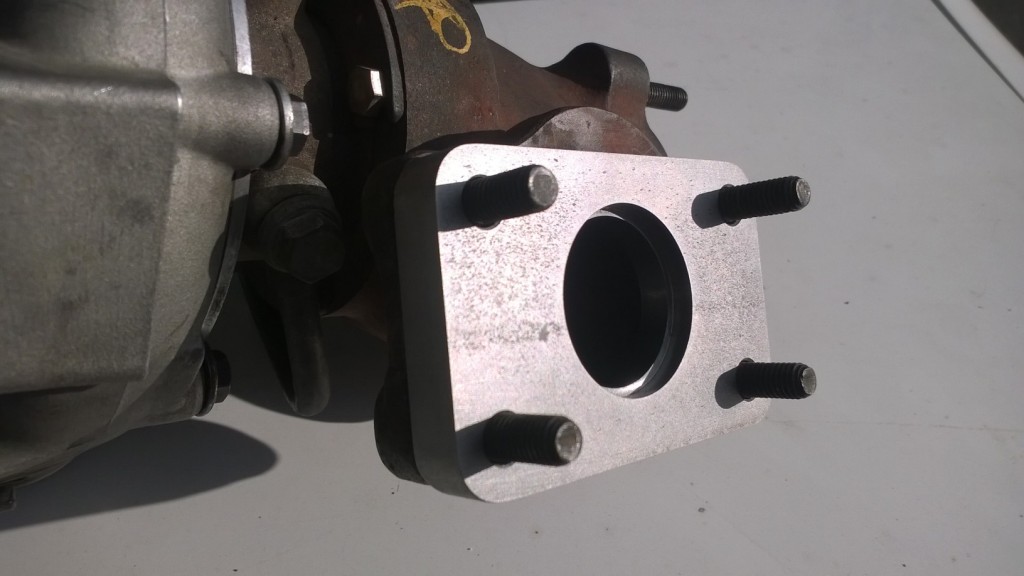

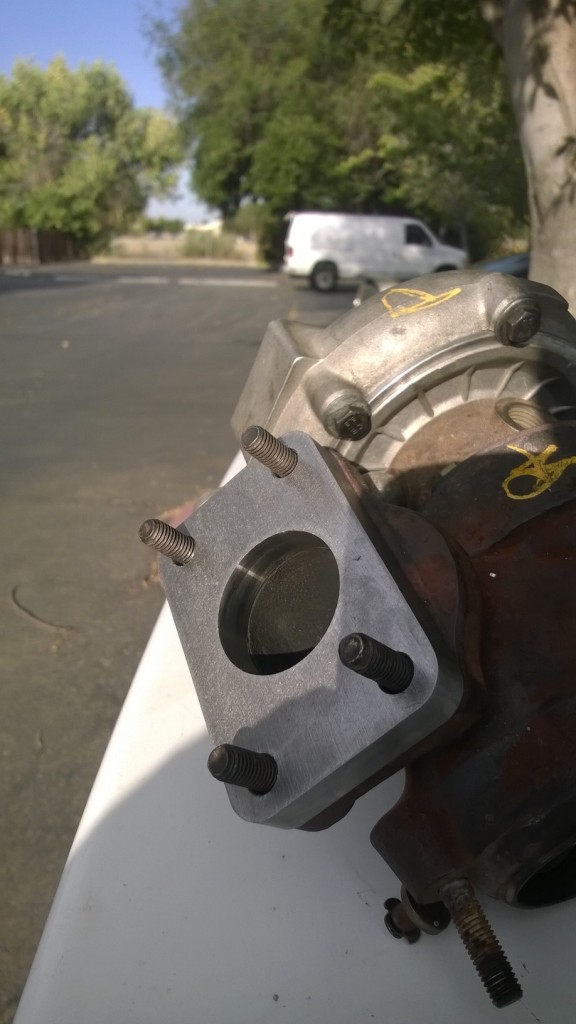

Another little update. Finished the t25 exhaust flange for the GT1752
the inlet isn't exactly centered. I don't know why but it was off .020 in both directions
I made two flanges. Not sure which I will use until I get the merge collector here.
one is stepped for the collector to sit into and get welded.
The other is a thru hole .030 bigger then the od of the merge collector and I could recess the merge into the exhaust housing. the ID of the merge collecor is 1.37 OD is 1.5 and the exhaust housing ID is 1.530. anyways i wont be doing anymore with the header until a little funds come in and I can order the tubing

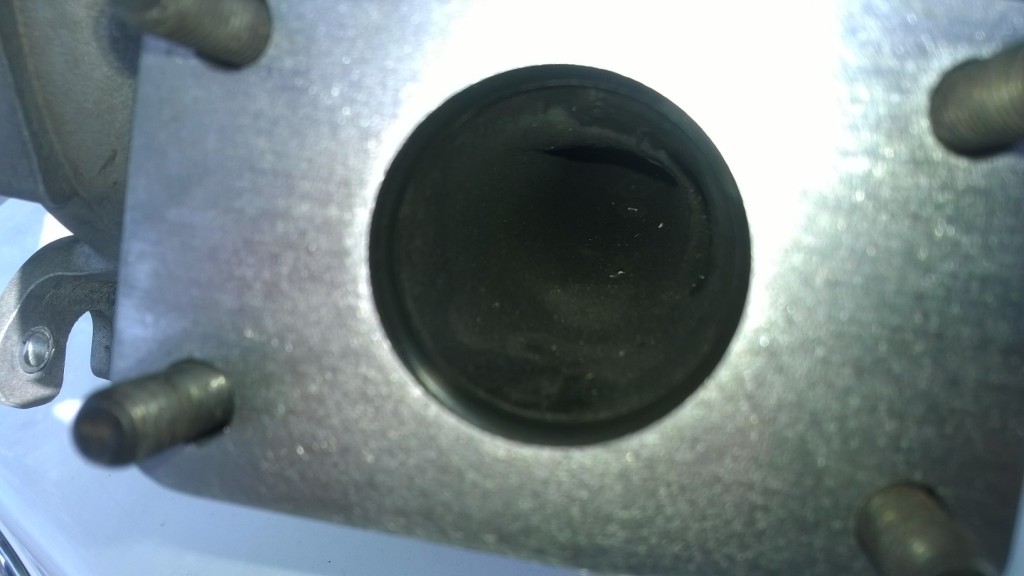

more picture of the exhaust inlet
the inlet isn't exactly centered. I don't know why but it was off .020 in both directions
I made two flanges. Not sure which I will use until I get the merge collector here.
one is stepped for the collector to sit into and get welded.
The other is a thru hole .030 bigger then the od of the merge collector and I could recess the merge into the exhaust housing. the ID of the merge collecor is 1.37 OD is 1.5 and the exhaust housing ID is 1.530. anyways i wont be doing anymore with the header until a little funds come in and I can order the tubing
more picture of the exhaust inlet
Last edited by yellow68gto; 07-09-2014 at 12:58 PM. Reason: fixing pictures- i dont know
#65
#66
The following users liked this post:
yellow68gto (07-09-2014)
#67
Here is a video I promised. taken me a couple days longer then I hoped. Been 100+ here lately and didn't really want to be outside after work. It was only 96* when I took the video at 6:30 pm.
https://www.youtube.com/watch?v=-46q...ature=youtu.be
as you can see cranks really easy and fast. I am not much of a movie maker so this is my first real attempt.
Thanks
Ken
https://www.youtube.com/watch?v=-46q...ature=youtu.be
as you can see cranks really easy and fast. I am not much of a movie maker so this is my first real attempt.
Thanks
Ken
#68
Lookin good yellow68gto, only thing is you keep saying small block chevy, but the Big block has the same bolt pattern, as do many of the 4&6 cylinder engines in the GM line. Manuel and automatic,front and rear wheel drive. 2&4 wheel drive. So it opens up along list of available gear ratios, mounting locations,vehicle options, and who knows what that the mind can come up with. It would make it easily adaptable for conversions in boats,tractors, ect. If you decide not to use the bobcat oilpan I sent with the engine, you can send it along. I think your going to need to get AC for your shop.
