v2203 in 88 s10
#31

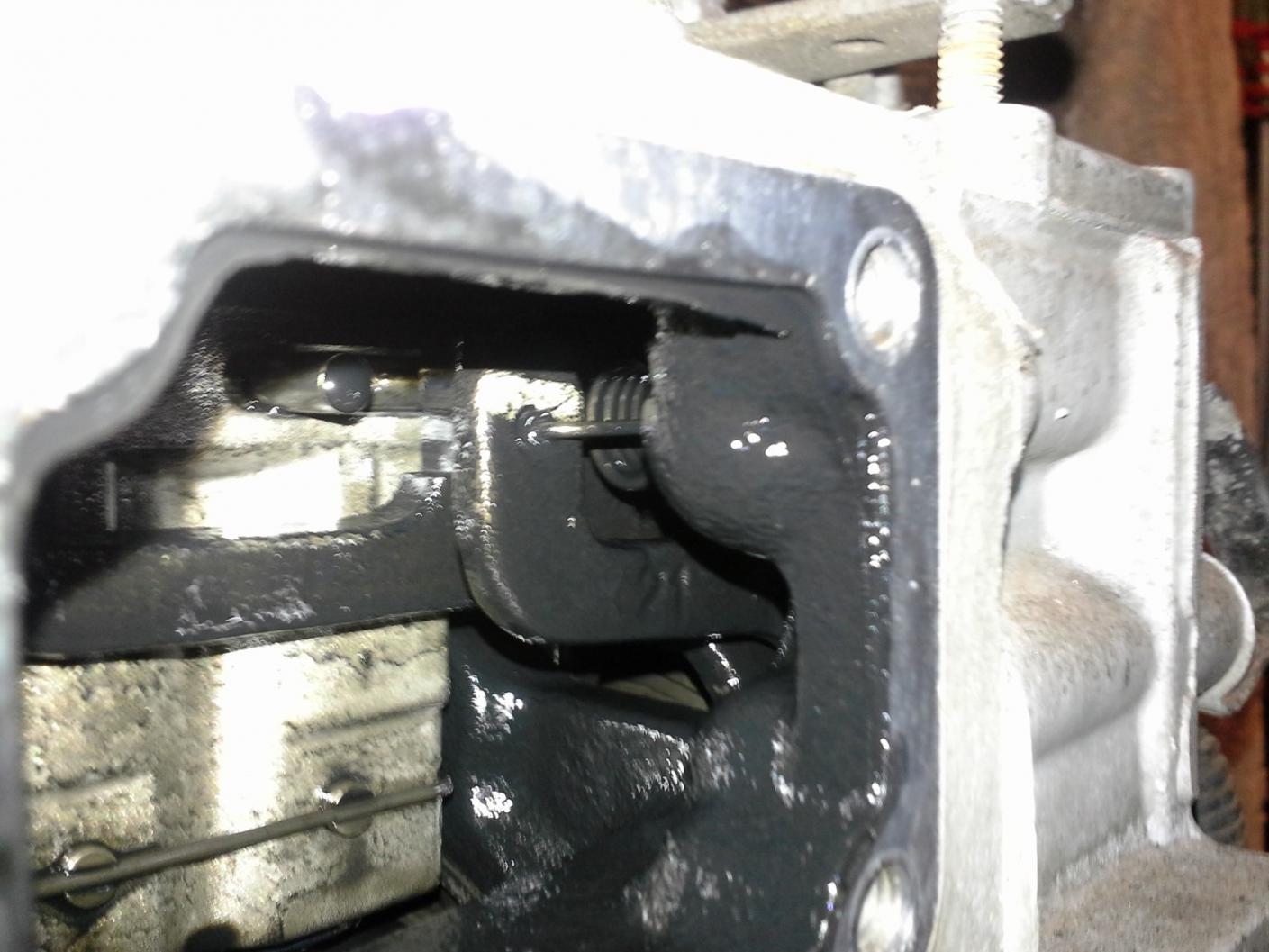

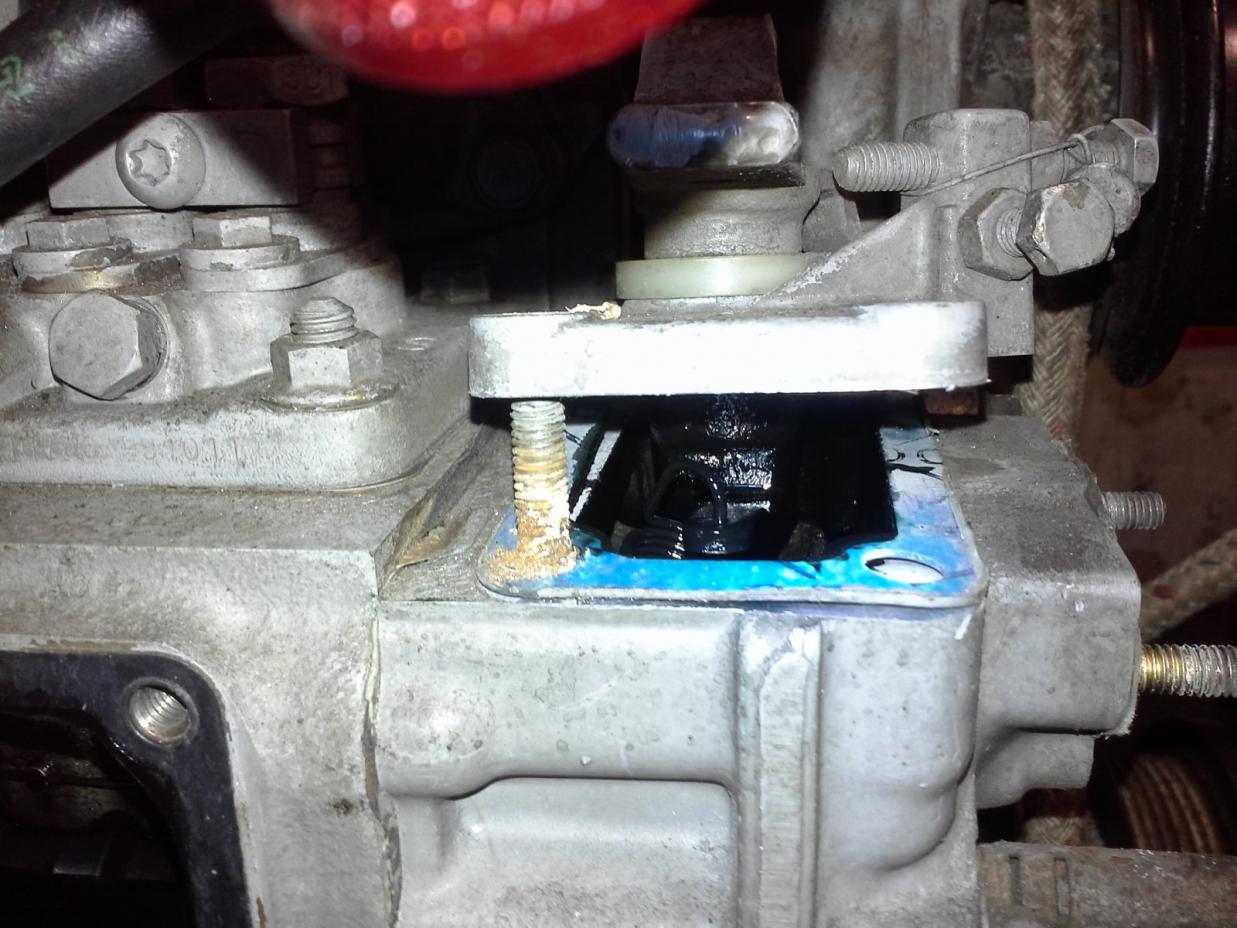

Not so hard if the engine is on the bench. if it is in the truck might be a bit tougher. There are a few pics in my thread, but here is one. Your engine might have 2 springs. The one pictured is still the one you need to change. I hooked it onto the speed control arm first, and had a piece of dental floss on the other end. Fished the string through the shut down lever hole, put the speed control arm plate back on, then pull the string to get the spring to come aft, then hook it with a pick, lever it back some more until you can grab it with some needle nose pliers, then work the spring hook onto the governor arm
#32
Not so hard if the engine is on the bench. if it is in the truck might be a bit tougher. There are a few pics in my thread, but here is one. Your engine might have 2 springs. The one pictured is still the one you need to change. I hooked it onto the speed control arm first, and had a piece of dental floss on the other end. Fished the string through the shut down lever hole, put the speed control arm plate back on, then pull the string to get the spring to come aft, then hook it with a pick, lever it back some more until you can grab it with some needle nose pliers, then work the spring hook onto the governor arm
#33
both. I don't remember where I posted the details about my spring. It was not on my buid. But I did post up the details. I do remember a bit of the details though. The stock spring is 2.0" hook to hook and about .050" wire dia. I got a longer spring with I think .057 wire, and cut it and bent a new eye in it to get the 2" I ended up with 3150 rpm on my first and only test. The spring I want is 2" long .5" dia. and .067-.077 dia wire. That spring is available, but the 2 spring shops I found it, had $40 and $70 minimum order, and the spring is about $3 for one.
ok back out to the shop, I hope to have my engine sitting on the mounts tonight.
have fun
ok back out to the shop, I hope to have my engine sitting on the mounts tonight.
have fun
#34
I just found a spring on mcmaster that's 1.875" long, .531 OD, with .080 dia wire, and an extended length of 2.085". It appears to be pretty hefty. Do you think that would work? It comes in a pack of 6 for $10.17 plus shipping. I'd be willing to buy it then send out the extras to everyone else if you think it would work.
#35
I just found a spring on mcmaster that's 1.875" long, .531 OD, with .080 dia wire, and an extended length of 2.085". It appears to be pretty hefty. Do you think that would work? It comes in a pack of 6 for $10.17 plus shipping. I'd be willing to buy it then send out the extras to everyone else if you think it would work.
#36
I just found a spring on mcmaster that's 1.875" long, .531 OD, with .080 dia wire, and an extended length of 2.085". It appears to be pretty hefty. Do you think that would work? It comes in a pack of 6 for $10.17 plus shipping. I'd be willing to buy it then send out the extras to everyone else if you think it would work.
