Ford 6.0 Head Removal

Thread Tools

Search this Thread

  #1
Old 07-02-2011, 04:29 PM
Ruger5901's Avatar
Diesel Enthusiast
Thread Starter
Join Date: Apr 2011
Location: North Carolina
Posts: 145
Received 5 Likes on 3 Posts
Default Ford 6.0 Head Removal

There is a oil hose going to a tube that goes through the rockerbox into the head that i cant remove. Tried to un screw but it seems to be twisting the whole pipe. Cant take the head or rockerbox off until it is removed here are some pics!!!!!!!!

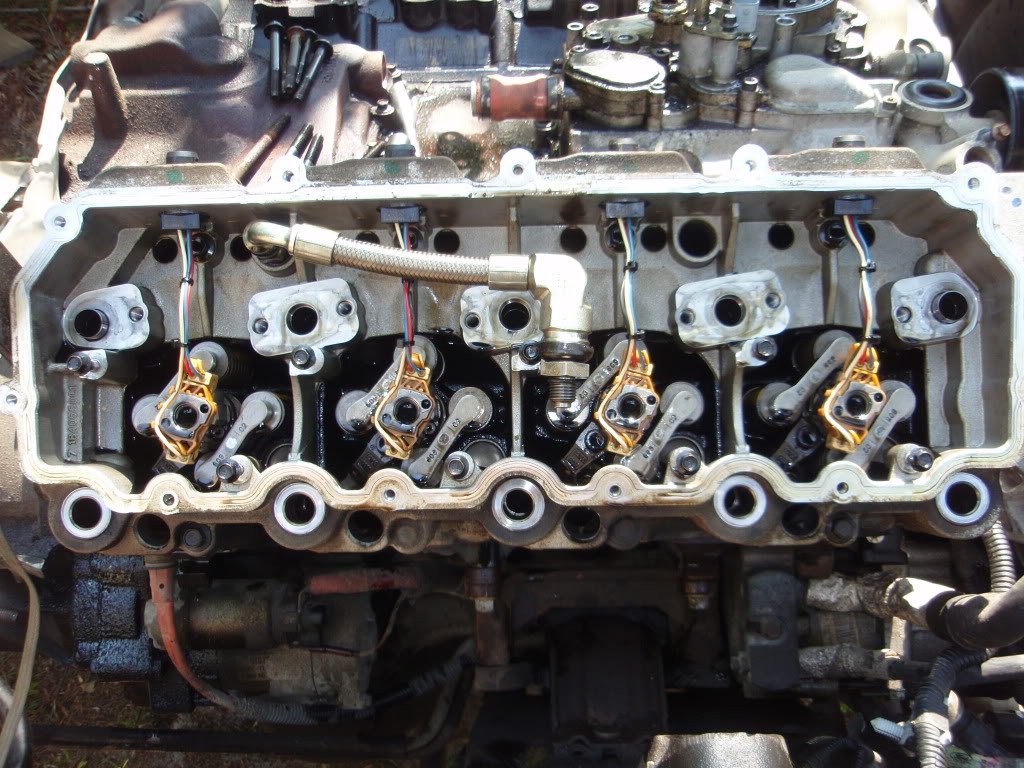

Name:  P7020149.jpg
Views: 2155
Size:  184.2 KB

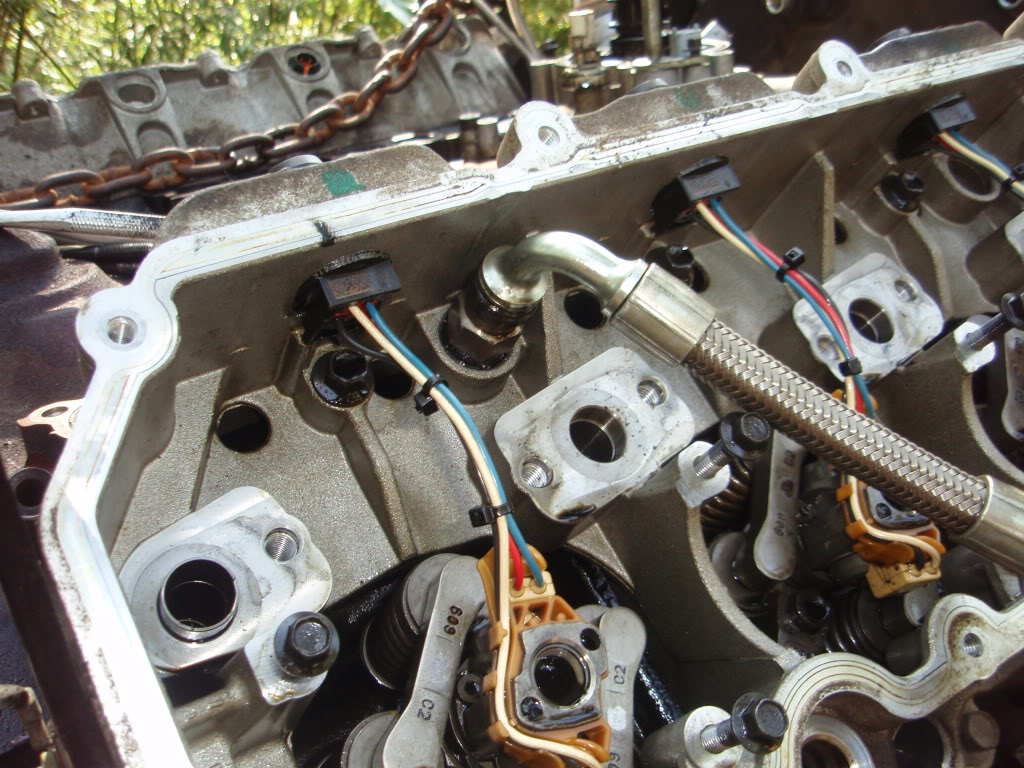

Name:  P7020150-1.jpg
Views: 1337
Size:  175.7 KB

  #2
Old 07-02-2011, 05:18 PM
bobfbigman's Avatar
Diesel Bomber
Join Date: Nov 2009
Posts: 1,942
Received 144 Likes on 130 Posts
Default

remove the high pressure oil pump, that cast iron housing in the back center , thos lines go there, disconnect then you can pull it out, looks like you got a 03 or o4 motor// great time to upgrade the HPOP, check out dieselsite.com

  #3
Old 07-03-2011, 01:09 PM
cummin_un_glued's Avatar
FormerVendor
iTrader: (1)
Join Date: Mar 2007
Location: Ash Flat Arkansas
Posts: 1,748
Received 107 Likes on 99 Posts
Default

there is a disconnect tool that will take the line off of the tube then you can use a socket to take the tube out and remove the rocker box and head
