  #1
Old 08-25-2012, 04:10 PM
Diesel Wrench



Default Transmission cooler. a wee bit larger then stock!

so after patching a few transmission line leaks and springing another leak in the transmission cooler i thought it was time to replace them.

i lucked out a found one that was just the right size. if it was just 1/2 of an inch bigger then it wouldn't fit.

after running it for a week, i think i'll have to say: i like it.

on hot days of 100+ degrees in town driving the transmission temp gauge never gets above 150. in the morning when its around 70 out the gauge never moves up from cold. i am even seeing about a 20 degree drop in engine temps too at times.

so far i have not towed anything with it yet but have no reason to believe it will not keep up with the demand

anyways here are some photos
Click the image to open in full size.
the cooler is 27 inches wide
Click the image to open in full size.

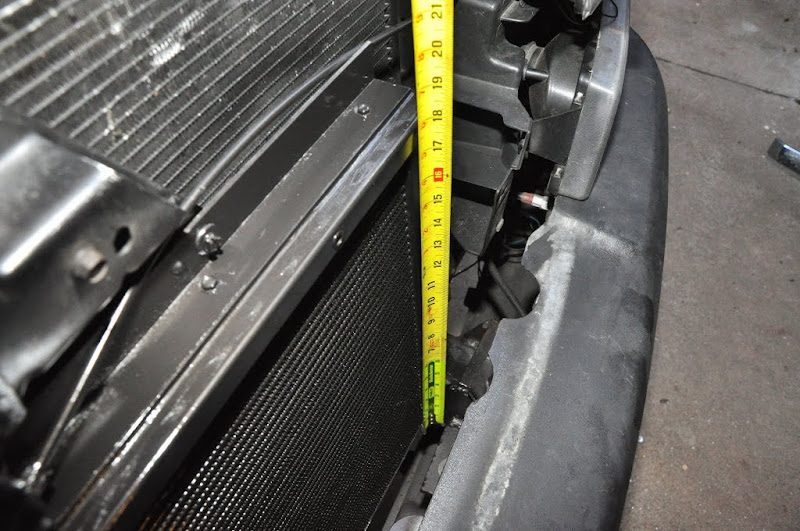

and 18 inches tall
Click the image to open in full size.
new hydraulic lines from mcmaster carr
Click the image to open in full size.
Click the image to open in full size.

2004LB7's Sig:2004 LB7 Duramax, EFI Live with DSP5 upgraded Tune
stage 4 SC transmission,5" exhaust
160 lift pump, homemade dual fuelers
water injection, 305/70/16 tires
all built up from a salvaged vehicle by me

Last edited by 2004LB7; 08-25-2012 at 04:13 PM..
Reply With Quote
  #2
Old 08-25-2012, 05:05 PM
2500HeavyDuty's Avatar
Super Moderator
Status: Hot pockets?!?! THEY WERE LEAN POCKETS!!


Default

good god almighty that thing is huge!!!

and those are some low *** temps too. during the summer drving through the city my trans will hit 200 sometimes. i also have a stage 4 too.

2500HeavyDuty's Sig:01' Dmax Ec/Lb: EFI Live tuned by me, Suncoast stage IV, Banks Intake w/ super scoop, 5" exhaust to 6" Stack, Ported intake Horn, Hybrid FPR, Coated CAC pipes, AirDog 150, Gauges, 35's Mounted on H2's lowered. and a Few more mods.
gt42 up the sleeve

06' Jetta TDI: Bone stock 42MPG @ 80mph.

IT LIVES!!!!


VROOOOOOOOM IM A TIRE
Reply With Quote
  #3
Old 08-25-2012, 05:27 PM
Diesel Wrench



Default

ya, my temps used to be around 200 all of the time. the best was about 180 on the freeway.

now is there such a thing as too cold? i wonder what winter will be like. might have to block some of it off
Reply With Quote
  #4
Old 08-25-2012, 06:30 PM
2500HeavyDuty's Avatar
Super Moderator
Status: Hot pockets?!?! THEY WERE LEAN POCKETS!!


Default

block it off

i need to add a bigger one, and an external oil cooler to the front too
Reply With Quote
  #5
Old 08-25-2012, 08:49 PM
Rick S's Avatar
Newbie
Status: Needs more MoGoo


View Member's Albums

Default

What brand is it, or where did you get it? Looks good, I like it and want it
Reply With Quote
  #6
Old 08-30-2012, 04:41 PM
1AMatt's Avatar
Site Sponsor - 1aauto



Default

Yea that thing looks awesome! Those temps are really good too

1AMatt's Sig:Matt
1AAUTO.com
888-844-3393 EXT 161
Truck Parts
Reply With Quote
  #7
Old 08-30-2012, 05:51 PM
Diesel Wrench



Default

Originally Posted by Rick S View Post
What brand is it, or where did you get it? Looks good, I like it and want it
got mine on ebay for about $75

here is one that looks almost exactly like mine. same size too:
Setrab NASCAR road course 2 pass design aluminum oil cooler with AN-12 fittings | eBay

there are others that some of you adventurous one might get to work. just search ebay for "Nascar oil cooler"

the hydraulic hoses i got from McMaster Carr
McMaster-Carr

you will need some flair fittings. i removed the section of transmission line up to the nearest hard line and flared it to make the connection

good luck to who ever buys it first

Last edited by 2004LB7; 08-30-2012 at 05:54 PM..
Reply With Quote
