Pretty simple. I just took the center plug out of the top of the full flow filter mount and tapped for my supply. I mounted my bypass on the body mount in front of the front passenger tire.

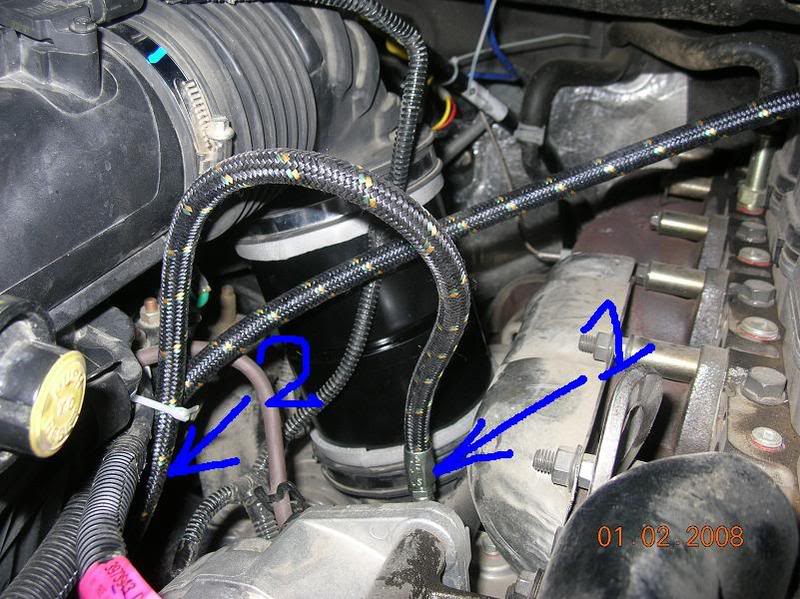

1 is where it comes out of the filter mount
2 is where it goes down to the bypass

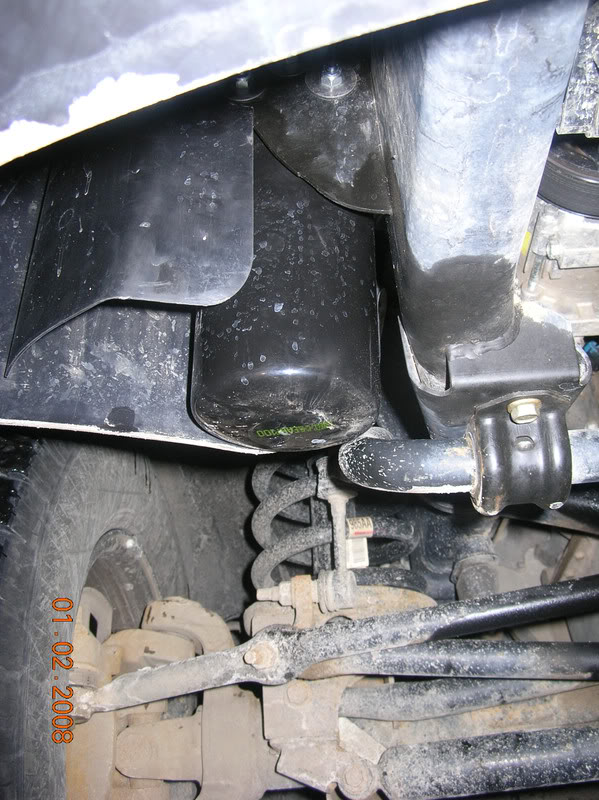

Bypass location
Hope it helps
Josh
---AutoMerged DoublePost---

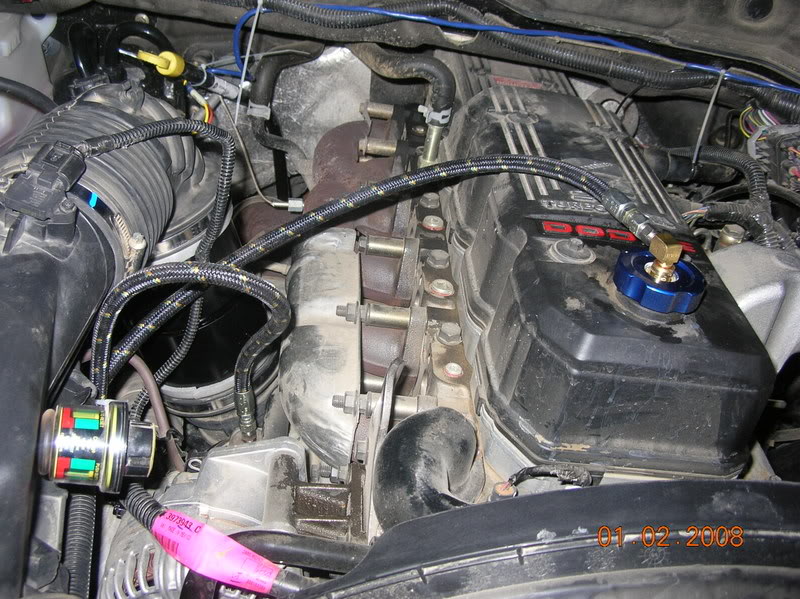

Did you get the billet aluminum oil return cap?
Josh
1 is where it comes out of the filter mount
2 is where it goes down to the bypass
Bypass location
Hope it helps
Josh
---AutoMerged DoublePost---
Did you get the billet aluminum oil return cap?
Josh
Last edited by jstange2; 03-06-2008 at 05:53 PM. Reason: Automerged Doublepost
The following users liked this post:
Redpatcher0481 (03-06-2008)
#3
#5
#7
#8
Looks pretty good. Only other thing is if you wanted to eliminate the loop coming out of the oil sending unit, you could use a 90 degree fitting and the hose could be more direct downward...but nothing wrong with this. The loop is nice and round as to not restrict or cause stress.
Josh
