Unsolved mysteries, what is this thing? and more

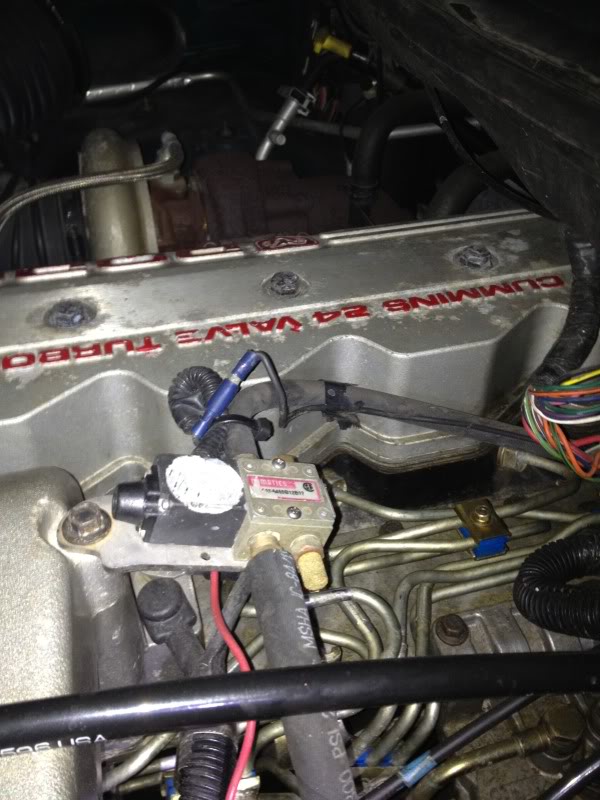

These should be fairly simple for anyone who isn't me...bought this truck not too long ago. I haven't much chance to do many mods myself, or even be under the hood much, besides maintenance. So there's this "thing", i noticed mounted on the intake horn. It seems rigged to me, because there is a red positive wire, from the battery going to it. There's a cheap inline fuse holder on that wire, and the fuse is missing. Then theres presumably a ground, with a blue crimp connector on it. One of the hoses coming from it go to the firewall somewhere, and the other looks like it goes down to the PS pump. The hoses are cracked and crappy looking. What could this thing be? Says MMATICS??? on it...

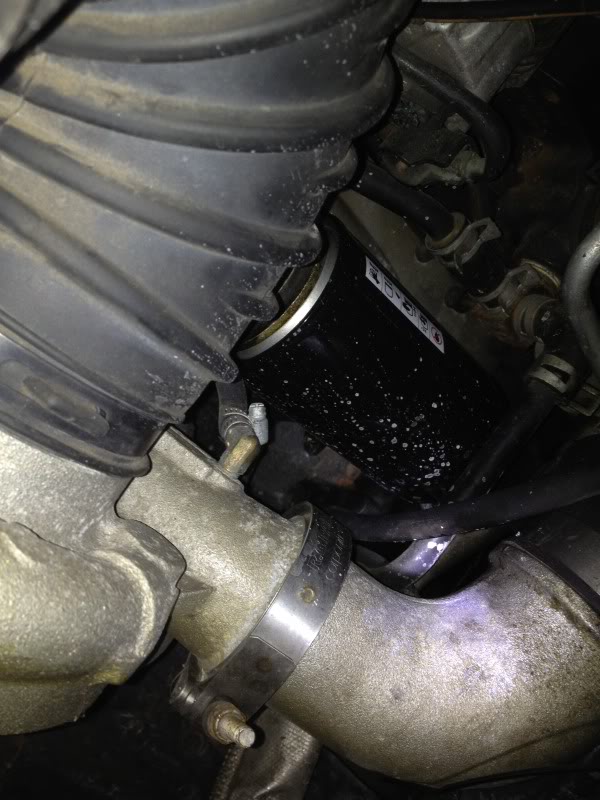

And second. The PO installed an EDGE EZ. Can anyone confirm or deny that this is the boost elbow that came in the kit? Its non adjustable, but it has a different style clamp on it than what I believe would be factory. I just dont know what the factory fitting looks like, and dont know if the PO was too lazy to bother with installing the edge one, since the instructions say it doesnt matter. THANKS!
And second. The PO installed an EDGE EZ. Can anyone confirm or deny that this is the boost elbow that came in the kit? Its non adjustable, but it has a different style clamp on it than what I believe would be factory. I just dont know what the factory fitting looks like, and dont know if the PO was too lazy to bother with installing the edge one, since the instructions say it doesnt matter. THANKS!
#3
#4
I can't tell you what the piece is attached to the intake horn but it was being used for vacuum. the boost elbow could be stock or could be edge it is just determined by the size of the hole in the elbow. The edge ez box does the boost fooling. Is the ez still installed? If not have you gotten any over boost codes?
#6
#10
The Numatics solenoid valve is either part of an exhaust brake system or it is a 4x2 low kit. I have the 4x2 low kit on mine. the install instructions said to mount it there on the intake horn. The front axle on these trucks engages via a vacuum switch. basically this will disengage the vacuum from the switch when you have 4x4 locked in, allowing you to use low gear through the transfer case in 2 wheel drive. It is operated by a standard single pole switch. It is super handy when backing a heavy trailer. I bought mine for backing the camper. I believe the manufacturer of the kit was Pac-Brake.
Last edited by UglyTruck; 01-23-2012 at 06:31 AM.
