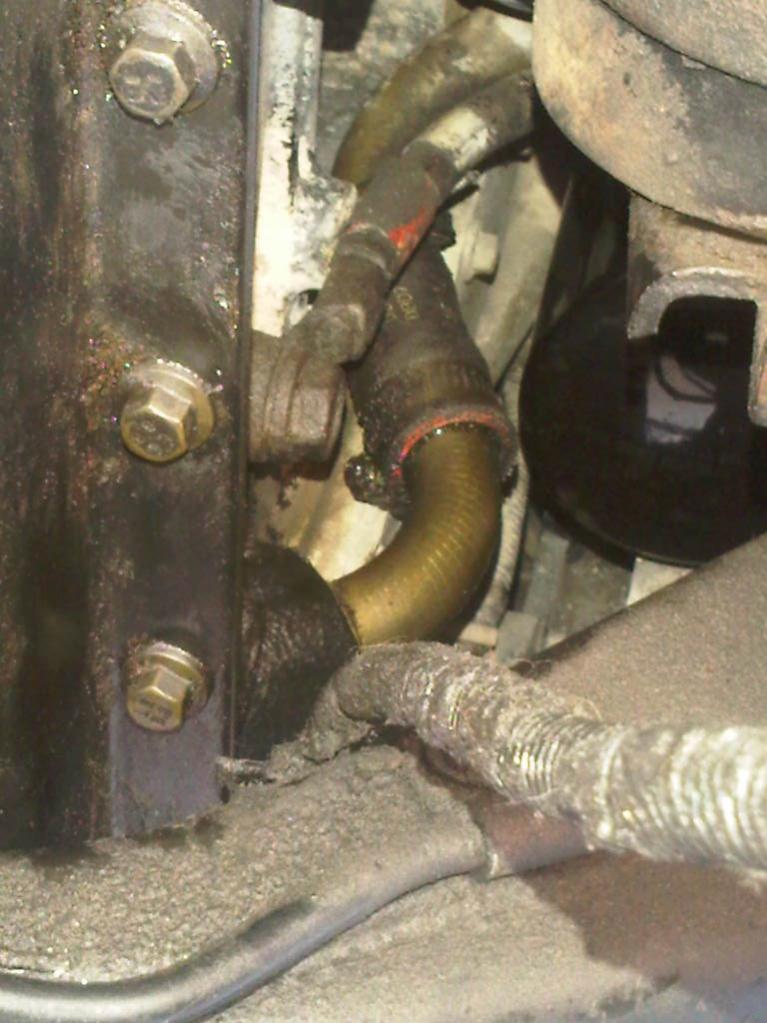

O.K. so I'm trying to chase down this damn oil leak after tightening my oil pan bolts and plug I cleaned as much of the oil off as I could. I noticed this thing was kinda soaked but it might be from the previous mess or the recent oil change. Looks like the drain plug is still leaking slightly, but this thing looks flimsy and is kept on the metal tube with a normal hose clamp. what exactly is it and what does it do? does it require maintenance? Thanks guys

Attached Images


asabadin's Sig:

1999 dodge ram sport quad cab 4x4. ATS stage 3 Trans with ATS 5 star torque converter, co-pilot lock up control, ATS air intake arch, Bosch injectors, ATS 3 piece exhaust manifold, banks exhaust from turbo back. Superchips D-Box and boost elbow. AFE stage 2 with Pro Gard7 filter.

Is it on the turbo side of the engine, or intake side?? If the turbo side, looks like a crappy drain tube repair. Intake side, looks like it could be a breather bottle fix.

RAM CR 24V's Sig:

06 Ram Cummins

100,000 Miles

Big Sky Bombers Social Group

it is on the turbo side. what part suppose to be there? what does it exactly do and should I replace it? what can be the effects of it not working properly? thanks

The oil drain tube is suppose to be all metal and all it's for is oil that lubes the turbo is drained back into the oil pan. What could happen, clamps loosen, causing an oil leak, and well there you sit. Run down to Cummins, and pick a new one up. Can't be more than $50.

Ok will do.. Looked on Ebay and they have a used one that has the same length of hose mine has. Is this one jerry rigged too or did they come with the hose on the end in 2 pieces? Is this a common failure or fix? The part I found on ebay is in the link below.


00 Dodge Cummins Diesel Turbo DRAIN TUBE OIL ctd pipe:eBay Motors (item 360209984748 end time Nov-25-09 18:29:39 PST)

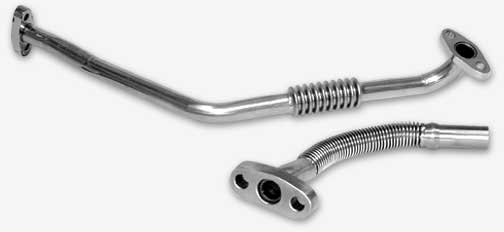

If you can, I'd replace it with a flexible one, as shown here.

Attached Images


where does that hose you took the picture go to? are you sure it goes to the bottom of the turbo?

Benjamin's Sig:

Diesel Bombers | Bombers Brand | Diesel Bookmarks | Top Diesel Sites | The Diesel Classifieds

Click Here To Link To Us !

REMEMBER SOME PEOPLE ARE ALIVE SIMPLY BECAUSE IT IS ILLEGAL TO SHOOT THEM.

I'll look

---AutoMerged DoublePost---

Where can I purchase the flexible one?

Should be able to get one from Cummins. Just need to get the length, diameter, and flange size of the stock one, and they should be able to hook you up.

If you can wait for daylight tomorrow I'll look at my 99 and see what's there and let ya know. To damn dark and cold for me tonight and from the pic, it's to close up for me to be able to think of what it's of.

Uncle Bubba's Sig:

99 Quad Cab, 4wd, Drag Comp W/Pump Wire & Boost Elbow installed, K&N Air Canon, MBRP exhaust, Belt Drive Lift Pump and bottom Bulkhead feed from the tank, Isspro EV Pyrometer, Boost Gauge, Fuel Pressure Gauge, DT Pro Fab Trac Bar, South Bend 13-1.25 Con O Clutch, Ranch Hand Bumper, Borgeson Steering Shaft, Black Silicone Boots, 2" Lift Soft Ride Front Coils, Solenoid High Idle Kit, Bilstein 5100 HD Shocks, Rickson 19.5 Wheels w/Hancoock Rubber, HD Maxx Link Sway Bar Links, Superlift dual front stabilizer, EGR Brakes Front and Back, RV275 Injector's, Blue Chip VP44, Prodigy brake controller, B&W Gooseneck hitch and more I can't remember right now. Not to mention more to come I'm sure.
374.2/846.7 at 30psi

Thank you it's on the turbo side and it comes from up top hugs the block and runs to the pan, that black thing to the right is the oil filter.

that is the oil drain for the turbo the short piece of hose was put on from the factory it is silicone might try tightening those clamps or look an see if its coming from the turbo itself there is a gasket where that pipe bolts to the bottom of the turbo

nick b's Sig:

99 dodge 2500 4x4 edge juice with attitude hot, coal train 150s,garret stage 3 63.5/72.5/15 little work in the tranny,afe stage 2 mbrp 4 inch

where would I buyt the flexible line with the gasket if I need to replace this part? Thanks.

Should be able to get one from Cummins. Just need to get the length, diameter, and flange size of the stock one, and they should be able to hook you up.
