94 12 valve fuel guage not working
#1
#2
Sounds like sending unit to me. Had the same issue a while back and it's starting again where it reads normal 99% of the time, then it will suddenly drop to E. Some say it's easier to drop the tank, but I found tilting the bed works fine as well. What I wished I had done the first time was change everything there instead of just the sending unit. Now it leaks a bit if I try to fill it all the way up.
#3
#5
Make sure the wires on the connector on top of the tank are in good shape or at least not cut anywhere. Make sure the connector is good and spray some contact cleaner or something in it. If the tank has been messed with before, they may have not put the unit back in right. If it is turned or something the float will just hit the walls in the tank and obviously not work right. You can take the sender out and move the float up and down and see if the resistance changes as you go up and down, if it doesn't then the sender isn't working.
Taking the bed off is the best way because you can clean all the stuff out of their while you have it off that has built up over the years. My whole tank had 1/4" of sand/mud/crap all over it, the frame, everything. I got out the power washer and now the truck probably weighs 50 lbs less
Taking the bed off is the best way because you can clean all the stuff out of their while you have it off that has built up over the years. My whole tank had 1/4" of sand/mud/crap all over it, the frame, everything. I got out the power washer and now the truck probably weighs 50 lbs less
#6
i need to check all the wires on mine then because ill fill up then 30 minutes later itll show a quarter tank and go to e and not come back up. i also have a 35 gallon tank and the funny thing is when my gauge does work properly and gets to e ill fill up and only get like 27 gallons worth
#7
They aren't very accurate. Mine works fine but stays above F for 200 miles then will go fast to half a tank and stay there for 200 miles then drop slowly to 1/4 then will fly down to E but will stay on E for a long time. I have bottomed out E though at 34.6 gallon topoff, was on vacation and the toll road didn't have any stations so I just kept going, almost 800 miles on that tank.

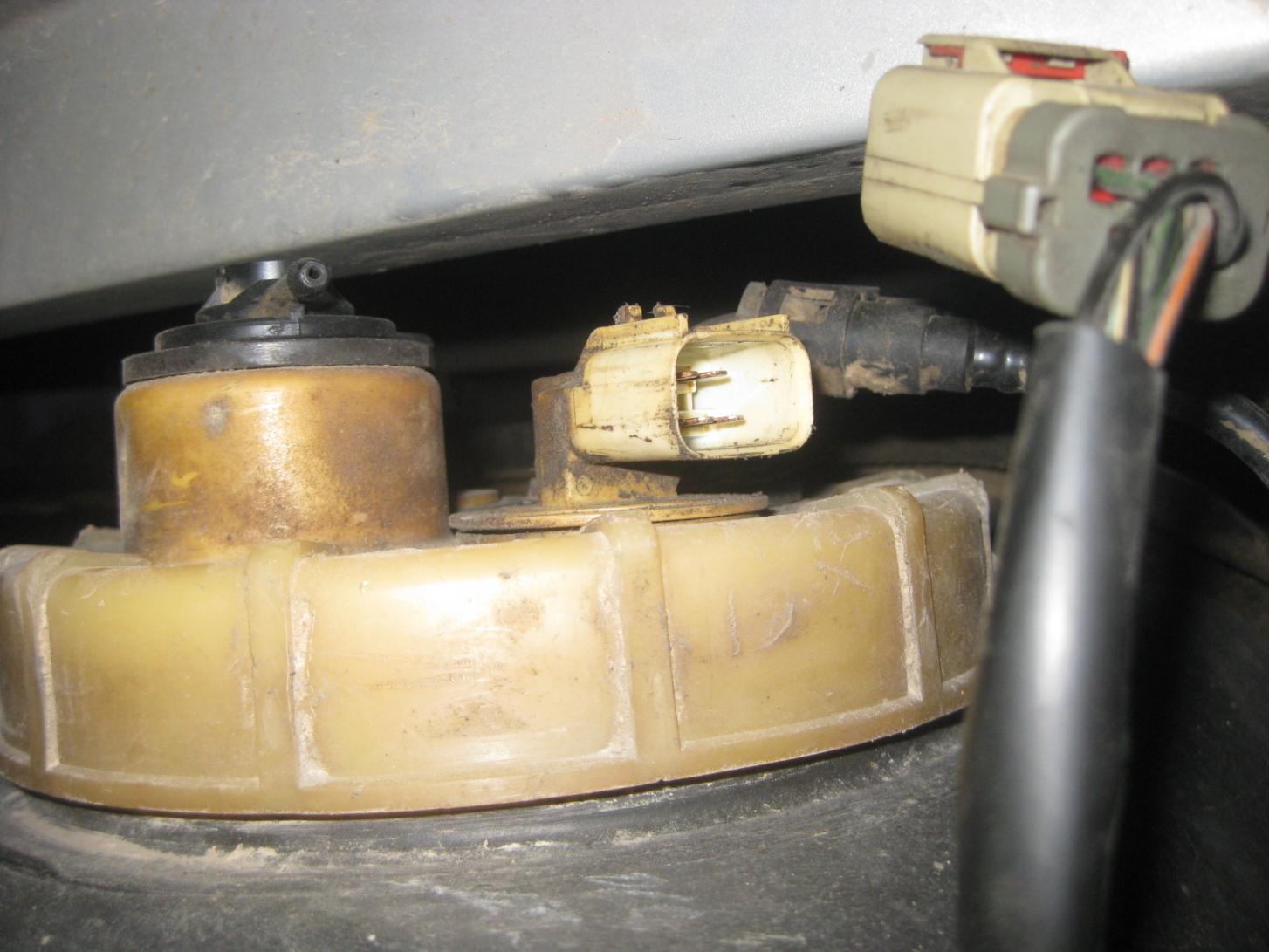

The wires are easy to get to, just reach up and take the connector off and look. If you suspect the float is hitting the wall just loosed the huge plastic nut and rotate the sender a little.
The wires are easy to get to, just reach up and take the connector off and look. If you suspect the float is hitting the wall just loosed the huge plastic nut and rotate the sender a little.
#9

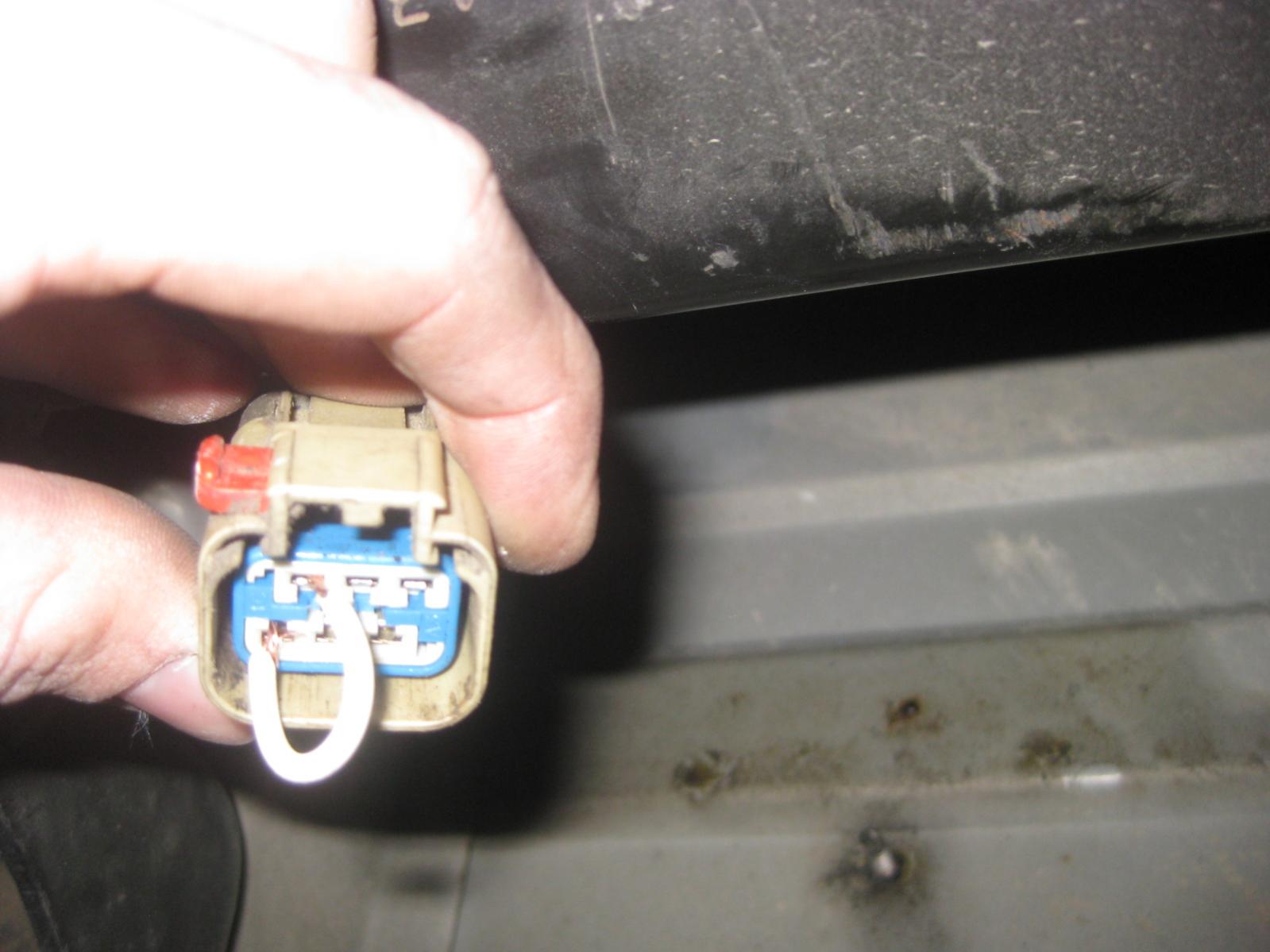

You can test the wiring by just taking off the connector and sticking a jumper between 2 contacts which 2 I am not sure, the 2 I have them in make it go to F. Unplugged it should be on E, jumpered it should go to F. If that is fine then you will have to take the bed off or drop the tank to do any further testing since it will probably be in the sending unit that is in the tank.
