12 Valve 2nd Gen Dodge Cummins 94-98 Discussion of 12 Valve 5.9 Liter Dodge Cummins Diesels with P7100 Injection Pumps

Need More Power

Thread Tools

Search this Thread

  #1
Old 11-03-2010, 04:04 PM
96 Ram 5.9 turbo's Avatar
Diesel Fan
Thread Starter
Join Date: Oct 2010
Location: Windom, Ks
Posts: 15
Received 0 Likes on 0 Posts
Default Need More Power

just bought a 96 ram 2500 12v with a high output fuel pump, have some competition in town with 98 24v. need some more horses and smoke anybody got some advice on cheap options?


Last edited by 12vcummins96; 11-03-2010 at 04:37 PM.
  #2
Old 11-03-2010, 04:24 PM
Farmboy 2.0's Avatar
Diesel Bomber
Join Date: Feb 2010
Location: N. Idaho
Posts: 2,386
Received 162 Likes on 143 Posts
Default

high output fuel pump? Is it an auto or manual?

  #3
Old 11-03-2010, 05:47 PM
96 Ram 5.9 turbo's Avatar
Diesel Fan
Thread Starter
Join Date: Oct 2010
Location: Windom, Ks
Posts: 15
Received 0 Likes on 0 Posts
Default

the guy i bought it from said that with the stock fuel pump he still wasnt getting enough fuel so he bought a "high output" fuel pump, and it is a 5 speed

  #4
Old 11-03-2010, 07:30 PM
angelic0-'s Avatar
Diesel Bomber
Join Date: May 2009
Location: Keflavík, Iceland
Posts: 1,289
Received 76 Likes on 73 Posts
Default

Here's what i wrote in another thread which had the same question....

Originally Posted by angelic0-
a cleaver way is to read peoples signatures of wich have P7100 pumped trucks !

I have a custom (self made) #0 plate.. plugged wastegate and good flowing 3" exhaust and i've smoked my OEM clutch (wich BTW only had 15.000km on it when i got the truck and i did the mods right away) in a matter of days....

if you're good with mechanical stuff just pull your AFC off, rip out the plate, grind it to a #100 (my first was like that, clutch almost held up, excessive 5th gear slip, some in 4th) but then i went for a #0 and cranked the starwheel a little bit...

it made all the difference and now i'm getting my SB 13125-OFEK in a matter of days, and then i'll really get to enjoy my truck...

i'd watch out for the 5th gear nut falling off, mine did... (someone could comment on what is the best way to fix this, tig weld ? or a fix nut ?) and it's i beleive a common problem.... oh, and get a 13125-OFEK at least...

for more info on making a custom #0 plate (or a #100 wich is what i'd prefer if i were you and had no money for a new clutch)

other stuff will cost you, like Governor Spring Kits (often reffered to as GSK) or stiffer valvesprings (wich you need if you're going to get a GSK since the OEM ones don't like revving over 3000RPM)

a #100 will do wonders for your truck... here's a quick guide on the installation of the DDP #100 plate;
YouTube - Dynomite Diesel Performance: BOSCH P7100 Fuel Plate 12 Valve

i used that for instructions on how to get the afc off and how to do that... remember, you can grind the plate yourself..

some others will probably chime in here to tell you more, but google is always your friend, just remember to be modest on what you do because every part in your truck has a limited amount of lifetime, and the parts where you add strain will wear faster

other than that... have fun, i know i did..... and i know i will have some more now that i've upgraded the weakest part of my drivetrain hehe.... next thing that breaks will be upgraded with something stronger.... just play and have fun...

always make precautions to what you do... for example, get valvesprings before you get a GSK... i've gone with 60lbs, but i'm not even sure if they'll hold up to what i'm going to do.... (3500-3700rpms is what i'm hoping for)

i'm gonna stop writing, i could write endlessly, but i learned everything i know about this on this forum.... i bet you can do just the same

---AutoMerged DoublePost---

i almost forgot.... it's always #1 to get gauges..

Fuel Press (we don't want that P7100 ruined by the end of the week)

Exhaust Gas Temperatures (i'd get one with at least a 1500° on it, nothing worse than ruining your turbo and/or even engine)

Boost (Just to give you a idea of what you're dealing with, one with 40PSI could work, i'm getting a 60PSI one though)

these three would get you started...

  #5
Old 11-03-2010, 07:45 PM
Farmboy 2.0's Avatar
Diesel Bomber
Join Date: Feb 2010
Location: N. Idaho
Posts: 2,386
Received 162 Likes on 143 Posts
Default

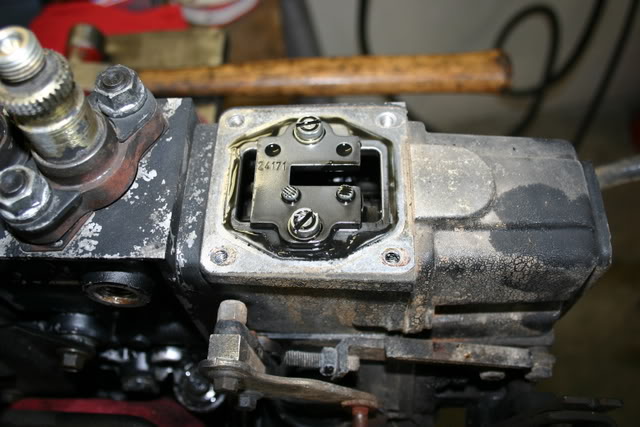

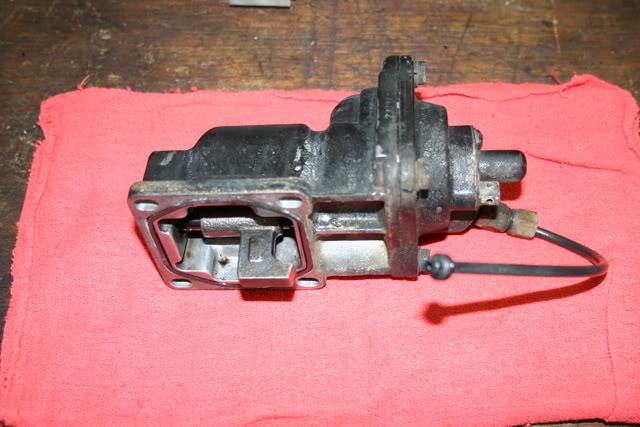

He musta been talking about a lift pump then. But for pump mods grind the fuel plate and tweak the afc housing on the pump star wheel etc. Here are some pics like how i grind my plates and where the plate is and the afc housing. Hope this helps

Attached Thumbnails Need More Power-afc.jpg   Need More Power-plate-pump.jpg   Need More Power-custom-plate.jpg
  #6
Old 11-03-2010, 10:56 PM
96 Ram 5.9 turbo's Avatar
Diesel Fan
Thread Starter
Join Date: Oct 2010
Location: Windom, Ks
Posts: 15
Received 0 Likes on 0 Posts
Default

Thanks, so would it do me better to slide the stock fuel plate all the way foreward or buy a #100 plate and slide it back?

  #7
Old 11-04-2010, 12:00 AM
Farmboy 2.0's Avatar
Diesel Bomber
Join Date: Feb 2010
Location: N. Idaho
Posts: 2,386
Received 162 Likes on 143 Posts
Default

Grind your stock plate for free and save your money for a intake or exhaust. By grinding the plate and sliding it forward you get a cheap easy hp mod on your truck. I posted a pic of a ground plate. Thats how i make all mine for people i do 12 valve work for

  #8
Old 11-04-2010, 12:49 PM
96 Ram 5.9 turbo's Avatar
Diesel Fan
Thread Starter
Join Date: Oct 2010
Location: Windom, Ks
Posts: 15
Received 0 Likes on 0 Posts
Default

ok i have a friend with an automatic that said he just took his fuel plate out...... this would kill my clutch right?

  #9
Old 11-04-2010, 12:59 PM
Farmboy 2.0's Avatar
Diesel Bomber
Join Date: Feb 2010
Location: N. Idaho
Posts: 2,386
Received 162 Likes on 143 Posts
Default

yeah thats alot of fuel i like running plates then you have some adjustibilty if its needed

  #10
Old 11-05-2010, 12:38 AM
dodgem's Avatar
Newbie
Join Date: Nov 2010
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
Default

Hi I'm also a Newbe.. on the #100 plate..what would be the best way to adjust it for more power.. tward the front of engine or back? Thx and R U familuar with 1998 12V auto trans 47re that had a late 4 gear shift? Can it be changed for a sooner shift. Thx for your time.
