12 Valve 2nd Gen Dodge Cummins 94-98 Discussion of 12 Valve 5.9 Liter Dodge Cummins Diesels with P7100 Injection Pumps

What is this and what does it do?

  #1
Old 08-29-2010, 01:25 PM
jpfiero's Avatar
Diesel Enthusiast
Thread Starter
Join Date: Aug 2010
Location: Saskatoon SK, Canada
Posts: 113
Received 1 Like on 1 Post
Default What is this and what does it do?

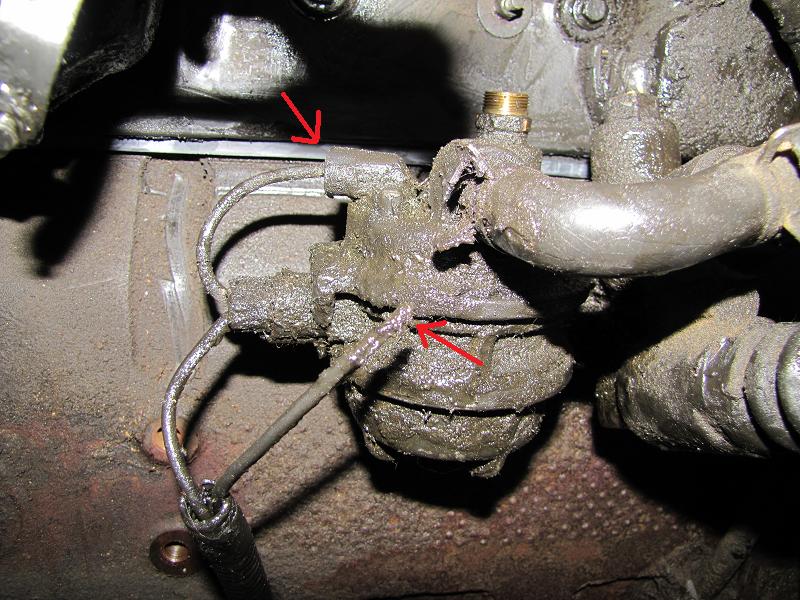

The '96 12v I'm pulling apart has this attached to the lift pump, I'm assuming it is an electric lift pump but I can't find any info on it and I want to know if I should be worried that the wire is broken. I'm going to reattach the wire but, if it is a lift pump could it have damaged the injection pump if it wasn't working?



Thanks

Attached Thumbnails What is this and what does it do?-lift-pump-small.jpg
  #2
Old 08-29-2010, 01:52 PM
tiremann9669's Avatar
Diesel Bomber
Join Date: Mar 2010
Location: Dansville NY
Posts: 4,233
Received 434 Likes on 356 Posts
Default

It's the fuel heater, also the bottom screws off and there's a strainer screen in there. It's a mechanical pump

---AutoMerged DoublePost---

Being in Canada you'll probably want to fix the wire to keep your fuel from gelling in the winter, if you were in the southern USA or somewhere else warm I would say don't worry about it.


Last edited by tiremann9669; 08-29-2010 at 01:52 PM. Reason: Automerged Doublepost
The following users liked this post:
jpfiero (08-29-2010)
  #3
Old 08-29-2010, 01:58 PM
jpfiero's Avatar
Diesel Enthusiast
Thread Starter
Join Date: Aug 2010
Location: Saskatoon SK, Canada
Posts: 113
Received 1 Like on 1 Post
Default

Awesome, thanks for letting me know, I thought these engines just had mechanical lift pumps but I just wanted to make sure.
