tranny shafts?
i was wondering if i would need to swap shafts if i rebuild a 2 wheel drive 47re for my four wheel drive?
|
|
Registered Members don't see these ads. Register now it's free! |
|
#2
12-28-2009, 01:20 PM
|
||||||
|
||||||
|
I think it's just the output thats different.
|
|
#5
12-30-2009, 10:41 AM
|
||||||
|
||||||
|
AS posted, the tail housing and the output shaft are different, everything else is the same. You will need a press and some special tools to get the overdrive unit apart to swap the output shaft.
|
|
#6
12-30-2009, 06:57 PM
|
|||||
|
|||||
I made one and used it in a trans shop for many years.
|
|
#7
01-02-2010, 10:34 AM
|
||||||
|
||||||
|
how do you make it,i work in a machinery building shop.
|
|
#8
01-09-2010, 08:10 AM
|
|||||
|
|||||

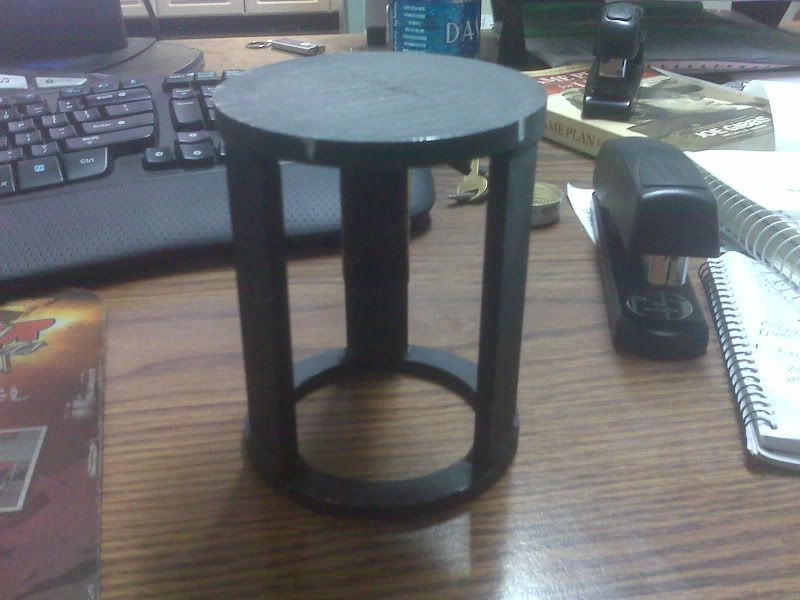

Very easy to make.Two upright pcs connected to a cross piece in a "U" shape. Very easy to figure the measurements once the OD shaft is out of the housing.
|
|
#9
01-09-2010, 11:16 AM
|
||||||
|
||||||
|
4" diameter, 3" ID at bottom, 5" tall.
 Next, you will need an old intermediate shaft you can cut down to align the splines up when you put it back together. Without this you will never get the OD unit back on the transmission.
|
|
