Well as the title says i'm having some issues with my truck starting, it only does this when its cold(first start of the day) and when its been sitting for a while after being ran. when you go to crank it over it'll fire up and idle real low for a couple seconds then shut off, when you go to restart it it just cranks until you hit the go pedal a couple time then it'll sputter and run fine. the idle is set at 700 rpms. any ideas of whats goin on with this damn thing, dirty fuel filter,problem with the over flow? any and all help will be appreciated.

Registered Members don't see these ads. Register now it's free!

Air leak? fuel lines?

Dr. Evil's Sig:

DIESEL BOMBERS LEAD ADMINISTRATOR

CLICK HERE FOR SPONSORSHIP INFORMATION
CLICK HERE TO BECOME A PREMIUM MEMBER AKA BOMBARDIER
___________________________________________

98 12V quad cab 4X4 AND 2001 24V quad cab 4X4

just replaced the fuel lines because they were leaking bad

Could be fuel filter - how often do you change it?

How about the prefilter? Have you ever cleaned it out or replaced it?

Could also be leaking air at the fuel heater. Or have you taken the heater out?

i change the fuel filter with every oil change so about every 3000 miles or three months which ever comes first. i hate to say it but i have no idea where the pre filter is or where the fuel heater is...

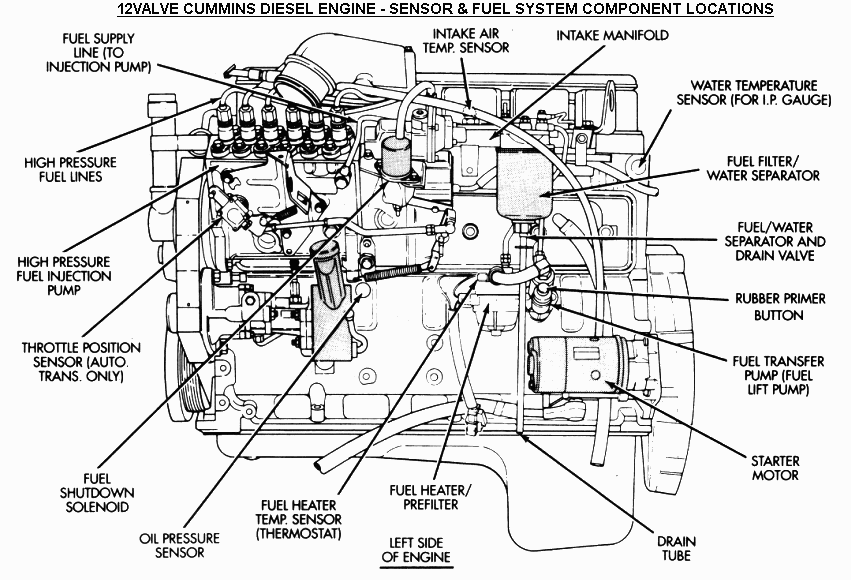

No problem...have a look at this:



And this will interest you:

Fuel Pre-Filter Cleaning on Ram/Cummins


Still could be a fuel line issue.



I would bump the idle up a bit too and see if that helps:

Ram Diesel Problems

Still sounds like air getting into the system to me.

Hammer's Sig:

1998 Dodge Ram 2500 4x4 12v 5spd Quad Cab
Flame Red Sport
Mason-Dixon Turbo Diesel Club Event Co-Ordinator
MITCHELLized

hammer the only place it could be gettin air in the lines is by the fuel heater, because all of the other lines are new and i checked them several times, i'll check the one up by the fuel heater tomorrow when i change the oil and fuel filter.

So when you did your fuel line replacement you removed the factory hard lines that cross the transmission bellhousing ?.Why I am asking is the return line that comes off of the p-pump and runs underneath the intake shelf goes into a braided outside,plastic centered, hard line that crosses the bellhousing area.It is NOTORIOUS for going bad and not showing any type of leaks at all and it will cause the truck to loose primes also.BUT,If you replaced all of the lines,both draw and return,then you have only a few places to look for the issue.

Make sure when you check the fuel heater assembly you unlpug it as if the plug is wet then it is leaking air and causing issues also.

Did you replace the hose below (the red one obviously)?

yes the red line was replaced, and hammer that line you speak of must have been replaced with a rubber one some time before i got the truck, but yes all of the fuel lines are new draw and return, i changed the fuel filter today and it seems to be running fine but if issues arise again then i'll be replacing the fuel heater assembly, thanks for all the help guys

Where might I find a similar diagram of an '88 IDI 7.3?
