how can you tell if the lift pump is going out ? or struggling to keep up ! -

Biggy B's Sig:

95 4x4 cummins built p pump #0 plate full ceramic clutch, 2inch levelers, stacks

You need to check your fuel pressure.

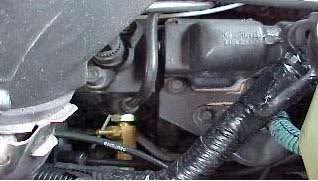

You need to drill and tap the banjo bolt on the injector pump inlet. Use 1/8" npt tap and get the appropriate fittings. You will also need a needle valve to dampen the pressure spikes from the injector pump. Youre setup should look like this:

-

Dr. Evil's Sig:

98 12V quad cab 4X4 AND 2001 24V quad cab 4X4

ok , do these pumps get louder if they r having a hard time

---AutoMerged DoublePost---

bcause ive noticed it has gotten a little more clankity clankity clank clank, -

This can sometimes be a sign that its not putting out the correct pressure but in order to be 100% sure you must check the fuel pressure with a gauge.


Luke -

lukesdiesel's Sig:

Diesel Dawgs Performance

Unleash the Dawg!!

828-399-1556

www.DieselDawgs.com

Expandit Exhaust Specials

6.7 Cummins XRT Race Tuner

HP Race Injectors

Are there any kits available that include everything needed including tapped bolt? -

Never seen one. This is an easy thing if you do a little research. -

your fuel pressure should be around 45 psi at wide open throttle if i remember right -

12valvetater's Sig:

1997 2500 4x4, 260,000 mi, nv4500, EMS lockout hub conversion, EMS vacum/delete, fully rebuilt engine, o-ringed head and block, 12mm ARP headstuds, 60 lb valve springs, 4k gsk, 4in down pipe to 5in behind the wheel, air dog2 165gph, Valair organic single disk, updated 5th gear nut, pyro and boost, street/towing cam from East Coast Diesel, NO fuel plate

Yeah, good point - get a 0-60 psi guage. -

i changed the filter and it seems to be running better and not quite as loud but i will check the pressure ,the wires on the bottom of the fuel drain plug broke and i caint plug it back in but oh well it didnt have any trouble firing up is that for the water in fuel light ?and it will start now without having to give it a galon o fuel while crankin, but will drill the banjo this weekend and make sure ,Thanks i will let you know what i find -

Yes, that should be for the wif sensor. No big deal.

if you installed a permanant fuel pressure guage in the cab and you would know when its time to change the fuel filter.


Whats youre idle at in gear or in drive? That can make a difference too -

I bought my FP gauge from Kenny at Ken's Performance. We went though some trials and got everything worked out. Isspro now sells the needle valve that is needed to dampen the pulses and Kenny should be able to put all that together for you. On my '98 I could uses the 24V boost bolt in the stock fuel filter housing but the '95 has a different housing IIRC....anyway....I'm sure Kenny can fix you up with a kit. -

Dusterb318's Sig:

-Phil-98 Dodge Ram 2500 4x4,12V,47RE Suncoast Billet input shaft, Suncoast H/D Extreme Trans kit, Goerend Triple disc converter, FASS 150/90, FASS Suction tube, Amsoil Ea air and pre-filter, 100 plate, 4K GSK, 370's, AFC Mods, CoolerTubz intake, 5" stacks, BD-SBS, Autometer Z-series Pyro/Boost/Trans/FP, Amsoil front to back.
'73 Plymouth Duster -318/904- 11.85@117

haha yea your right sometimes we forget simple crap like that untill its to late, on the idle i will check , what should it be is it www. kens performance.com for the guage kit? -

Here is the link:

diesel, performance, dodge, ford, chevy, gauges, fass, smarty,edge, S&B Filters

He doesn't have it on the site but if you call him he'll know: (707)580-6782

I started with a mechanical gauge and we had some problems with the 12V beating the hell out of the gauge.....I put snubbers and needle valves on and even had Isspro send me different size pistons for the snubber.....I ended up with a EV2 electric gauge and the snubber and all is fine. Kenny was fantastic as well as Isspro to work with through the entire deal. I promise you will find NO ONE goes as far as Kenny does for his customers. -

thanks i will give em a try -
