Can anyone give me the correct Cummins number for the fitting that allows the banjo bolt to come out of the low pressure side and reinstall the fuel line and gauge? Any help is greatly appreciated since Cummins here in Louisville SUCKS!

you dont need it.

Pull your banjo bolt out and drill and tap it 1/8" npt. Make sure you use a needle ale to dampen the pressure pulses from the pump.

Dr. Evil's Sig:

DIESEL BOMBERS LEAD ADMINISTRATOR

CLICK HERE FOR SPONSORSHIP INFORMATION
CLICK HERE TO BECOME A PREMIUM MEMBER AKA BOMBARDIER
___________________________________________

98 12V quad cab 4X4 AND 2001 24V quad cab 4X4

Dr. Evil, you guys never cease to amaze...good stuff! Thanks a bunch! When you say to use a needle valve, do you mean into the banjo bolt head and then attach the gauge to that?

use a snubber in the line going to your gauge

DieselMinded's Sig:

DIESEL BOMBERS OWNER & FOUNDER

CLICK HERE FOR SPONSORSHIP INFORMATION
CLICK HERE TO BECOME A PREMIUM MEMBER AKA BOMBARDIER

Amateurs Built the Ark, Professionals Built The Titanic
__________________________________________

2002 Cummins , Super B Turbo , ATS Intake Manifold , ATS Exhaust Manifold , Suncoast Triple Disk Torque Converter , Suncoast ProLoc Valve Body , 5.0 KDL , Diamond Eye 4" Turbo Back Exhaust , Quadzilla Adrenaline w/ Pulse Monitor , KORE Pace Suspention , Schied VP44 , EEP 150HP Injectors , 150 Air Dog

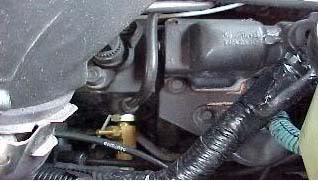

Have a look at the pic. The tapped banjo bolt goes on the inlet of the P-7100 injector pump. After tapping the banjo bolt 1/8" npt, install the needle valve, and then run your line through the firewall to your guage. Be careful not to loose the washers when you pull the banjo bolt from the inlet of your injector pump. The reason I say to tap your banjo bolt is that the 14mm banjo bolts on 12Vs are hard to find. The 12mm tapped banjo bolts found on 24V trucks can be found at just about and diesel supplier. As for the needle valve, start the truck with it closed and just crack it so that you get a smooth reading. It probably should only be open 1/16 of a turn to 1/8 th of a turn (but thats just a guess) - try to get a valve thats 1/8" male npt on one side and 1/8" female npt on the other.

As DM pointed out above you can also use a pressure snubber BUT you have to make sure that you get one thats suitable for diesel (there are different kinds), as well, its nice to have a valve in the line in case you ever had a problem with the guage or line into the cab, you might want to be able to shut the diesel supply off.

One last thing, be very careful doing any work here - yoou are on the clean side of the filter and want to make sure you dont get any debris in your pump.
